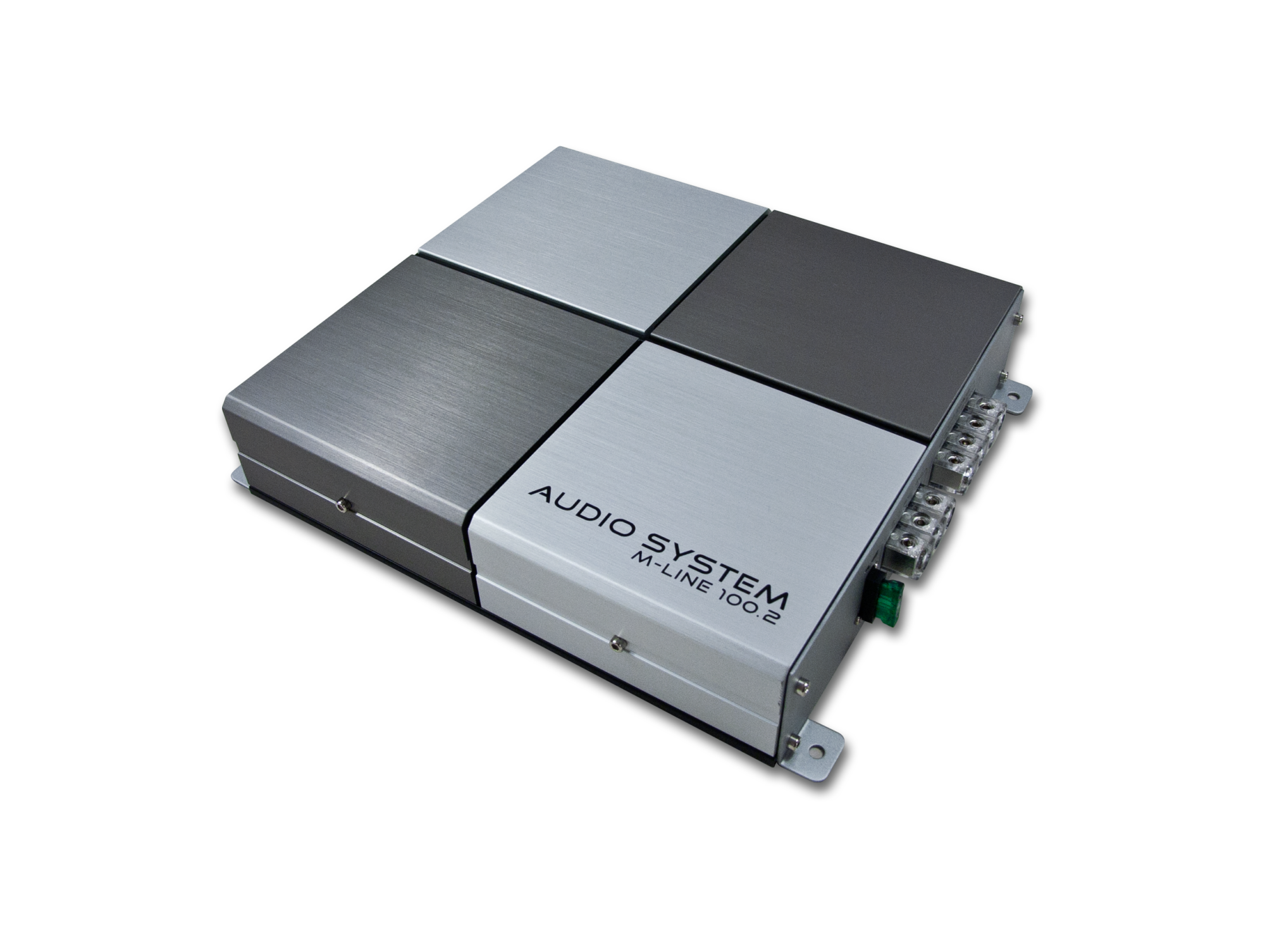

M-Line 100.2 Amplifier
M-Line 100.2 Amplifier

M-Line 100.2

2-Channel M-Line Amplifier

  • 2/1 channel bridgeable class-AB amplifier
  • MOSFET PWM power supply
  • 4 ohm bridged or/and 2 ohm stereo
  • 12dB octave crossover slope
  • 6dB bass boost equalization control variable
  • Low pass (LPF) crossover variable
  • High pass (HPF) crossover variable
  • FULL/LPF/HPF selectable switch
  • Input Sensitivity: variable 200 mV maximum to 8 V minimum
  • Multi-Way Protection Circuitry: overhead, over current, short circuitry and speaker DC protection
  • RCA line input and output
  • Tested voltage & THD: 14.4V & less than 0.05% THD
  • Operating voltage: DC10V~16V power input
  • Wired Remote Controller RTC (optional)

Description

OVERVIEW

  • 2/1 channel bridgeable class-AB amplifier
  • MOSFET PWM power supply
  • 4 ohm bridged or/and 2 ohm stereo
  • 12dB octave crossover slope
  • 6dB bass boost equalization control variable
  • Low pass (LPF) crossover variable
  • High pass (HPF) crossover variable
  • FULL/LPF/HPF selectable switch
  • Input Sensitivity: variable 200 mV maximum to 8 V minimum
  • Multi-Way Protection Circuitry: overhead, over current, short circuitry and speaker DC protection
  • RCA line input and output
  • Tested voltage & THD: 14.4V & less than 0.05% THD
  • Operating voltage: DC10V~16V power input
  • Wired Remote Controller RTC (optional)

SPECIFICATIONS

Stereo Power RMS @ 4 Ohm 2 x 100W
Stereo Power RMS @ 2 Ohm 2 x 145W
Bridge Power RMS @ 4 Ohm 1 x 290W
Signal to Noise Ratio >90dB
Low Pass Crossover 45Hz ~ 225Hz
High Pass Crossover 45Hz ~ 225Hz
Bass Boos @ 45Hz 0 ~ 6dB
Frequency Response 10Hz ~ 30KHz (+/- 1dB)
T.H.D. @ 4 Ohm < 0.1%
Channel Separation 65dB
Fuse Rating 30A x 1
Input Sensitivity 200mV ~ 8V (+/- 5%)
Dimensions 224 (W) x 50 (H) x 240 (L) mm
