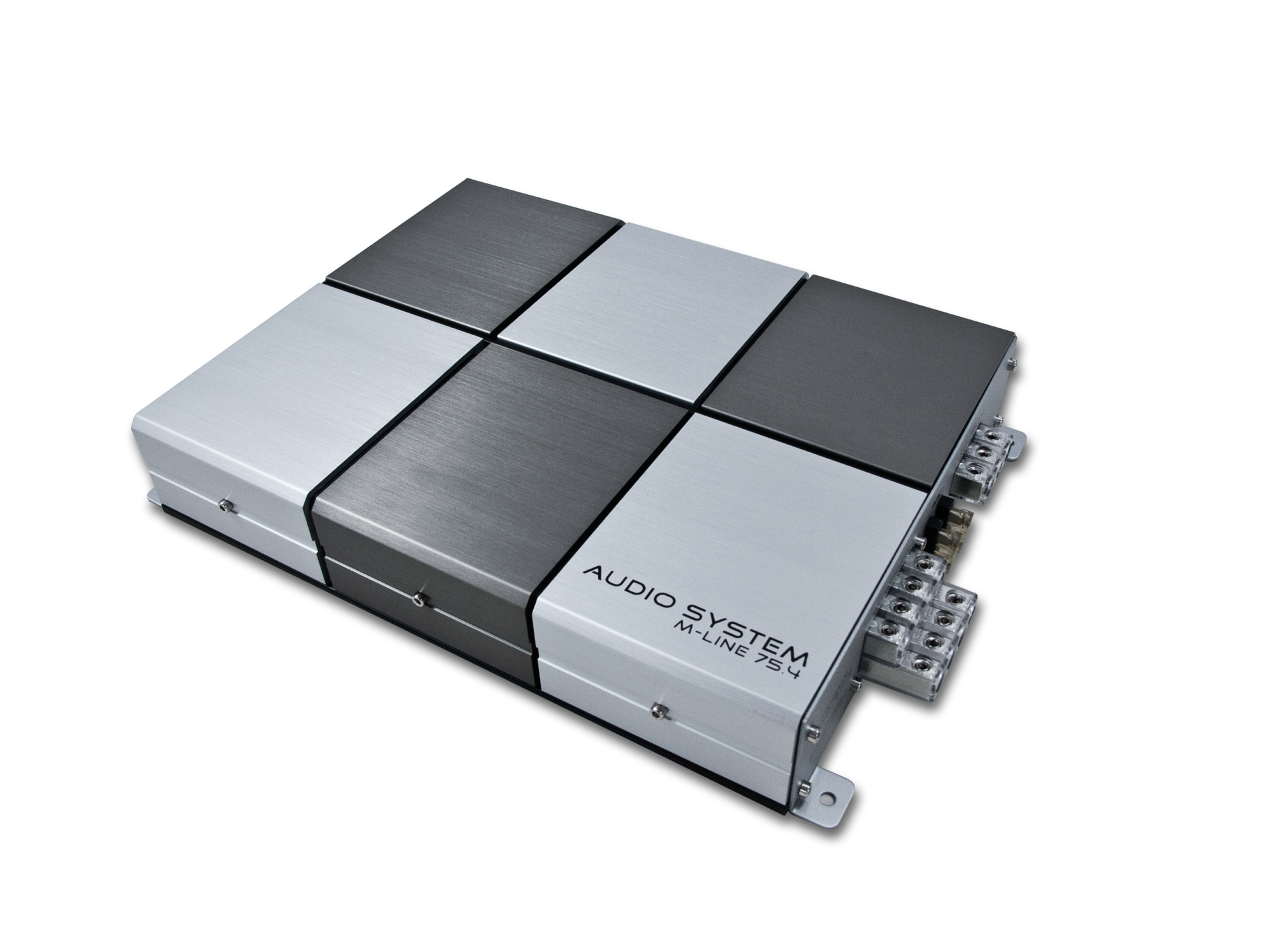

4-Channel M-Line Amplifier

• 4/3/2 channel bridgeable class-AB amplifier
• MOSFET PWM power supply
• 4 ohm bridged or/and 2 ohm stereo
• 12dB octave crossover slope
• Variable crossover frequency with FULL/LPF/HPF selectable switch
• Input Sensitivity: variable 200 mV maximum to 8 V minimum
• Multi-Way Protection Circuitry: overhead, over current, short circuitry and speaker DC protection
• RCA line input and output
• Tested voltage & THD: 14.4V & less than 0.05% THD
• Operating voltage: DC10V~16V power input
• Wired Remote Controller RTC (optional)
