OVERVIEW
Gladen Aerospace is a philosophy that is about the realization of the perfect Hifi sound in your vehicle. Without compromise and cost constraints, ultimate car hifi products have been realized here.
In Aerospace 10, the exceptional bass performance was achieved through a variety of technical innovations. These include a multilayer compound membrane, an extremely powerful neodymium magnet system and a computer-optimized cast basket.
All components of the subwoofer are lovingly handcrafted and assembled in Germany.
The result is a sound experience that exceeds even the wildest imagination.
- Absolute high end subwoofer

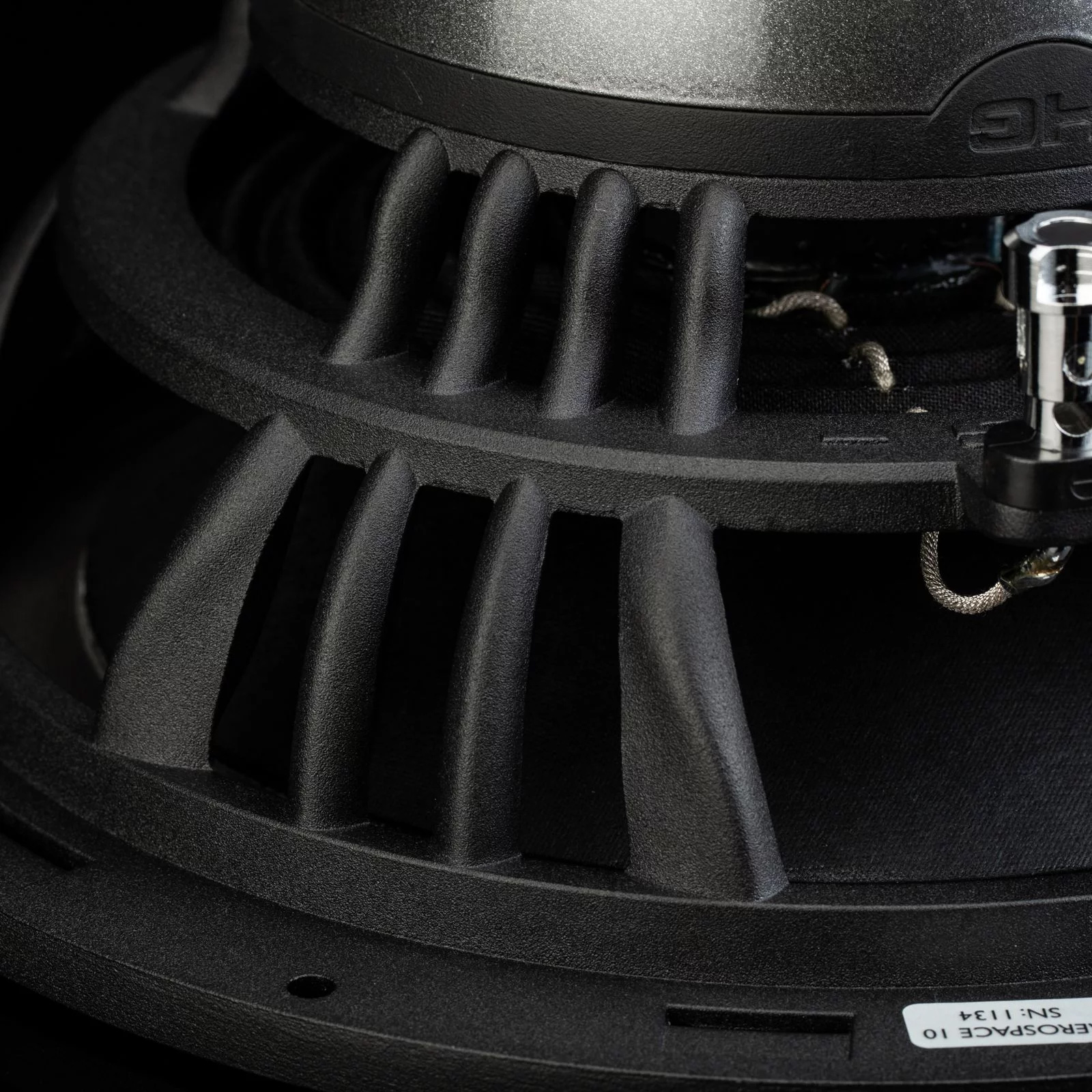

- Computer optimized cast basket (FME calculation)

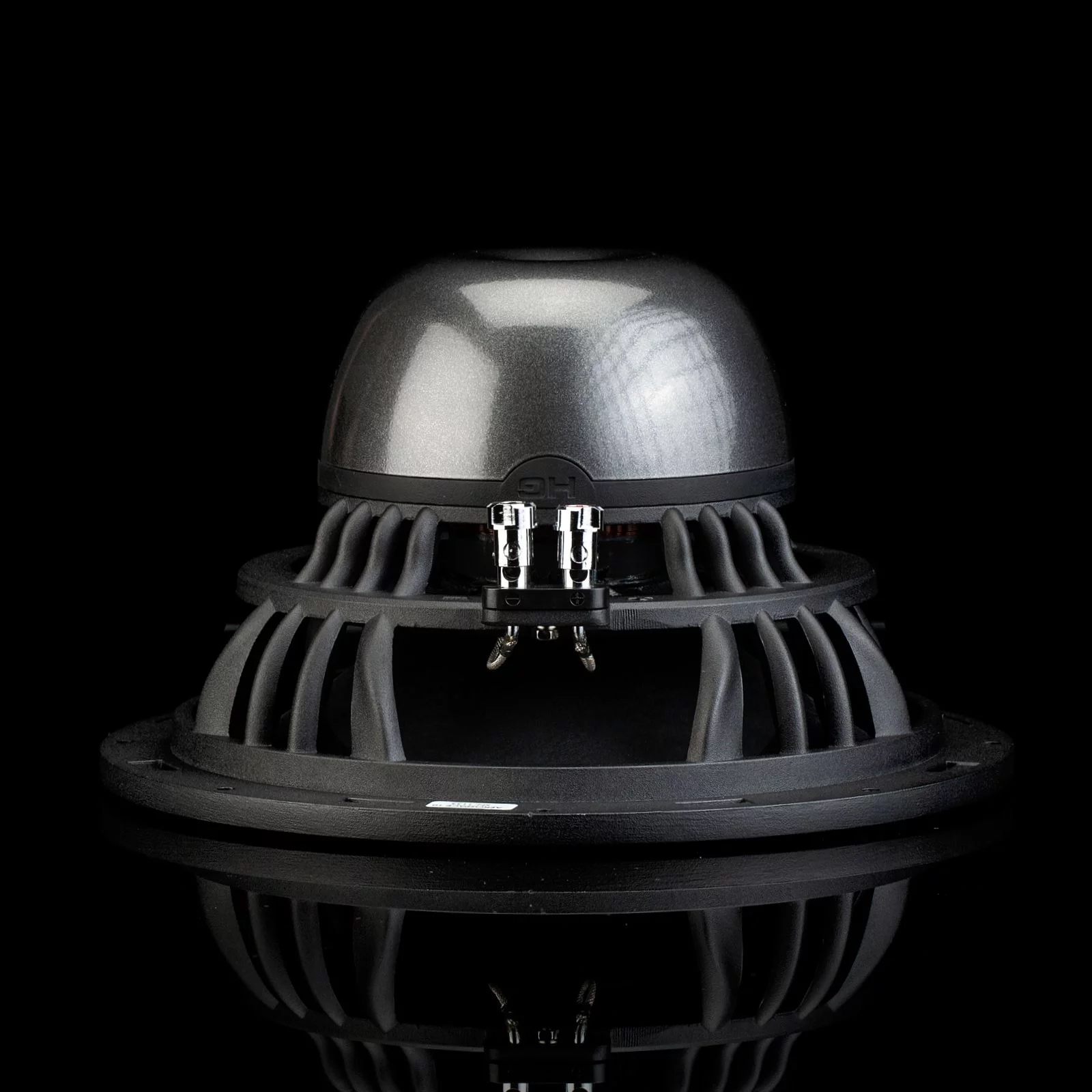

- Neodymium drive with powder-coated AEROSPACE BACK-CAP

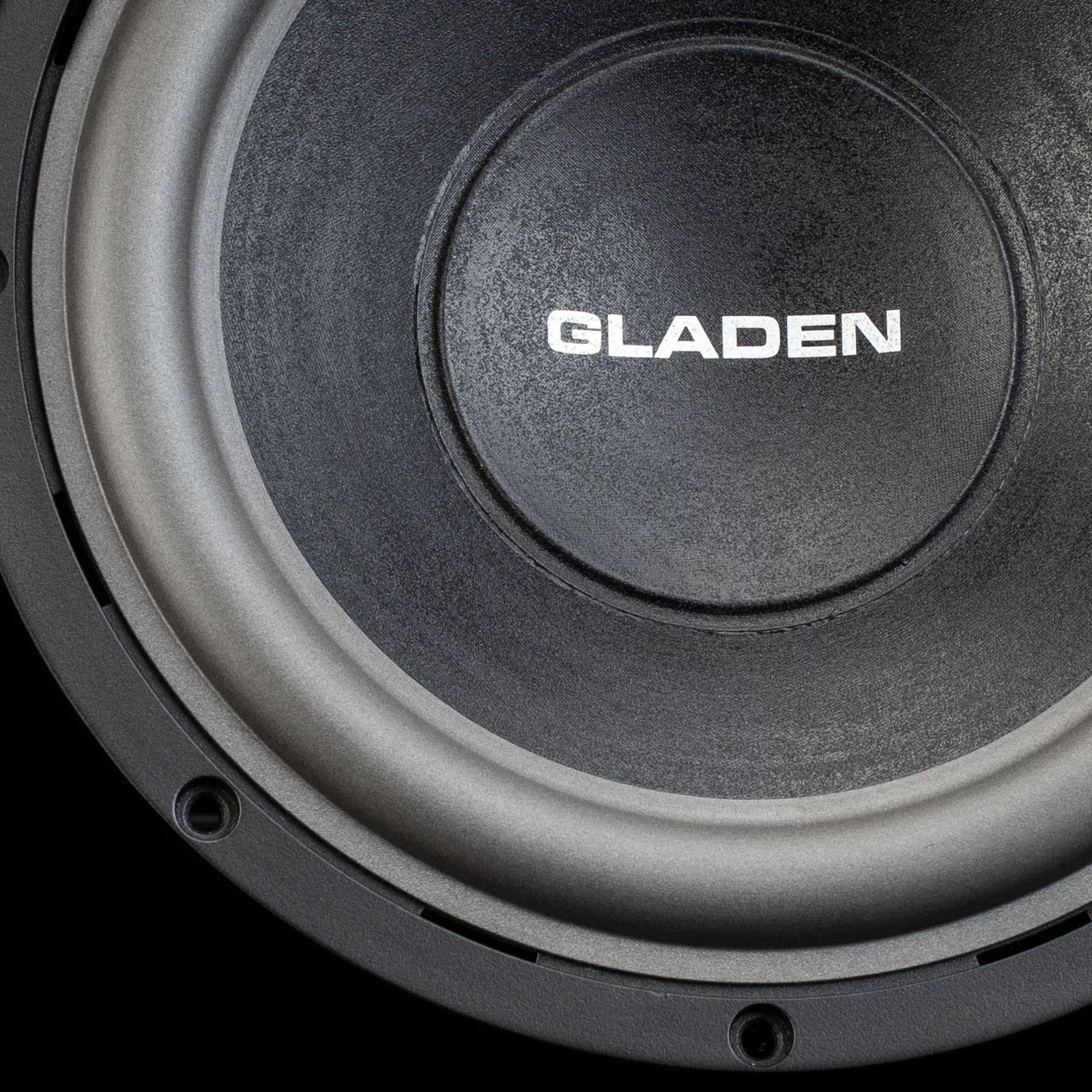

- Paper / form / paper membrane (PFP technology)
- Nomex spider
- Hand made in Germany
MATERIAL:
-
Dust Cap: Paper
-
Coil former: CFK
-
Spider: Nomex
-
Cone: PFP
-
Surround: Foam
-
Basket: Aluminum
SPECIFICATIONS:
-
Recommended volume: 30 liters
-
Box resonance frequency (FT): 46 Hz
-
X-Max linear (+/-): 15 mm
-
X-Max (+/-): 25 mm
-
DC resistance (Rdc): 3,3 Ω
-
Nominal impedance (ZN): 4 Ω
-
Resonance frequency (fs): 34,54 Hz
-

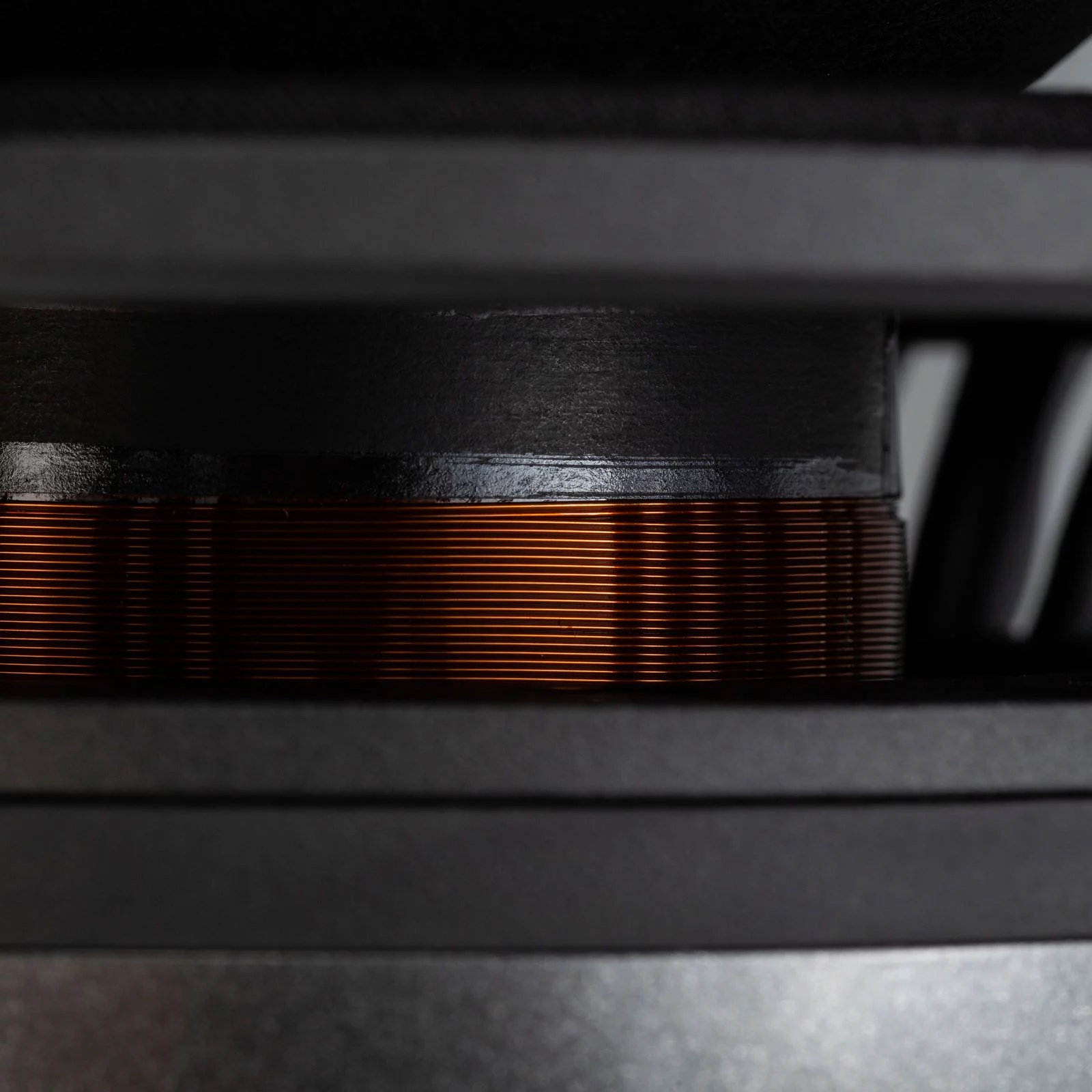

Voice coil diameter: 65 mm
-
Mechanical Q factor (Qms): 10,8
-
Electrical Q factor (Qes): 0,6
-
Total Q factor (Qts): 0,56
-
Moving mass (md): 104,31 g
-
Effective piston area (Sm): 346 cm2
-
Mechanical resistance (Rms): 2,1 kg/s
-
Compliance (Cms): 0,2
-
Force factor (BL): 11,2 Tm
-
Equivalent air volume (Vas): 34,23 dm3
-
Efficiency (η): 0,23 %
-
SPL 1W/1m: 85,58 dB
-
SPL 2,83V/1m: 89,43 dB
-
External diameter: 279 mm / 10.99 inch
-
Installation diameter: 236 mm / 9,29 inch
-
Installation depth: 147 mm / 5.79 inch
