OVERVIEW

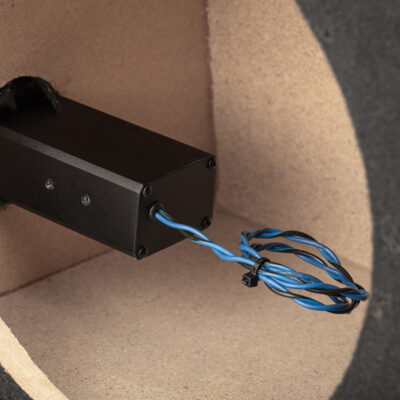

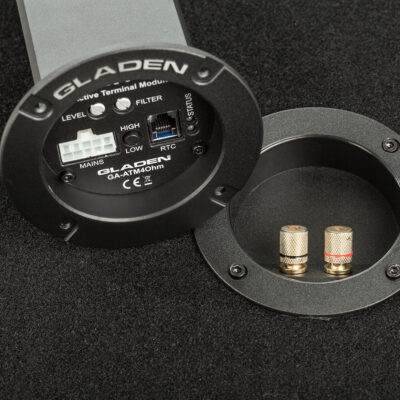

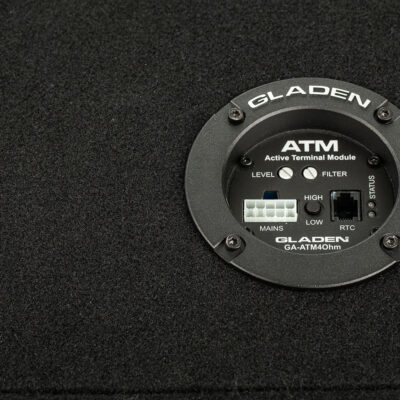

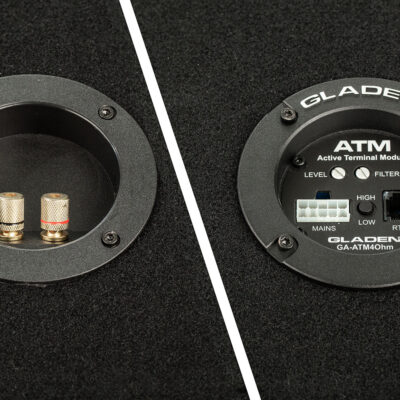

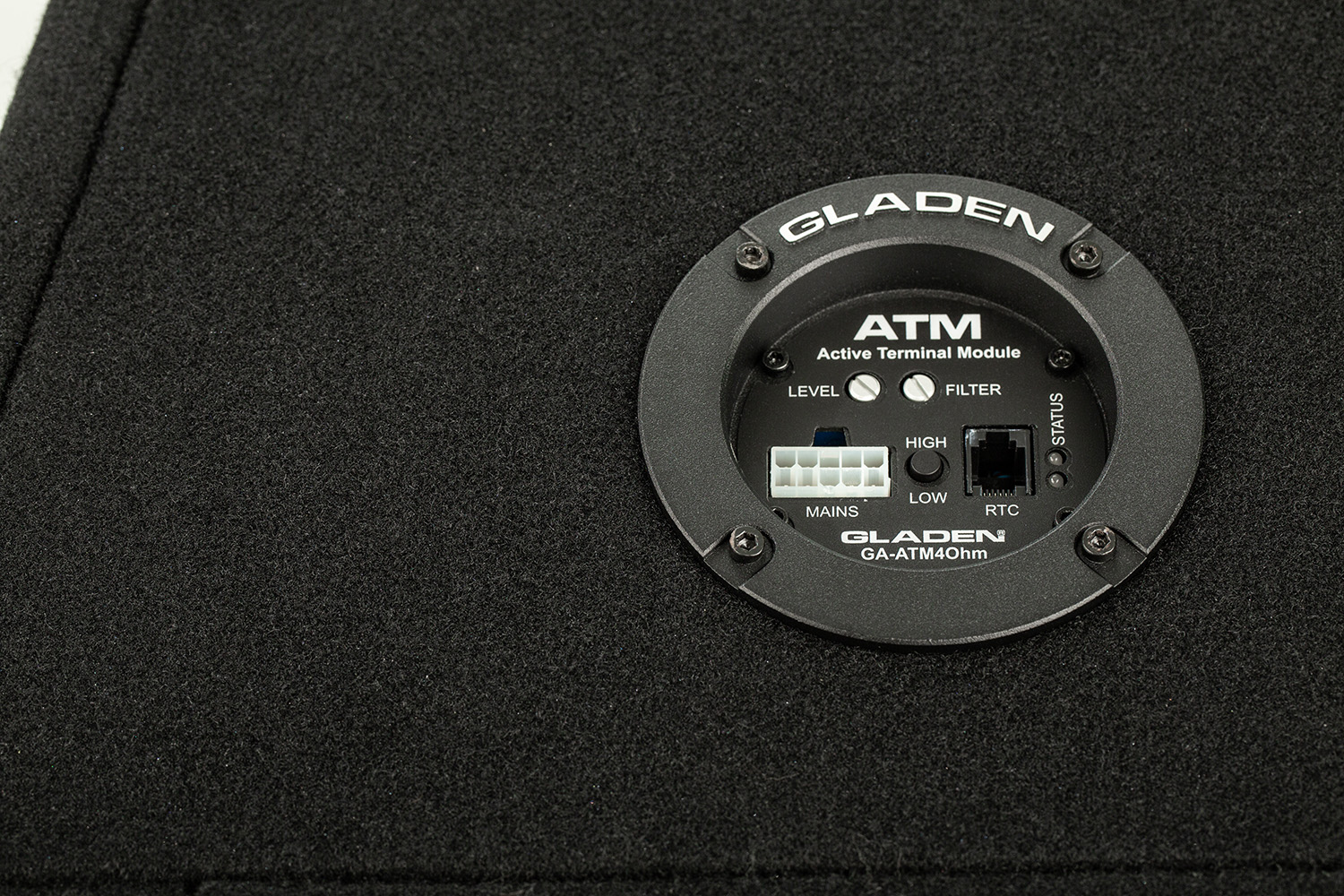

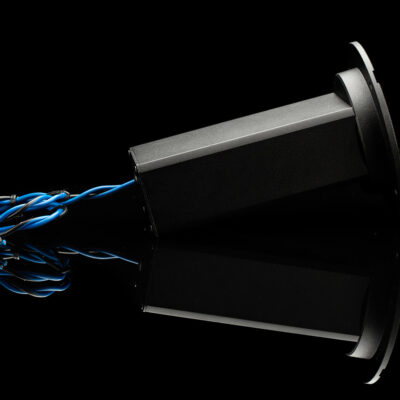

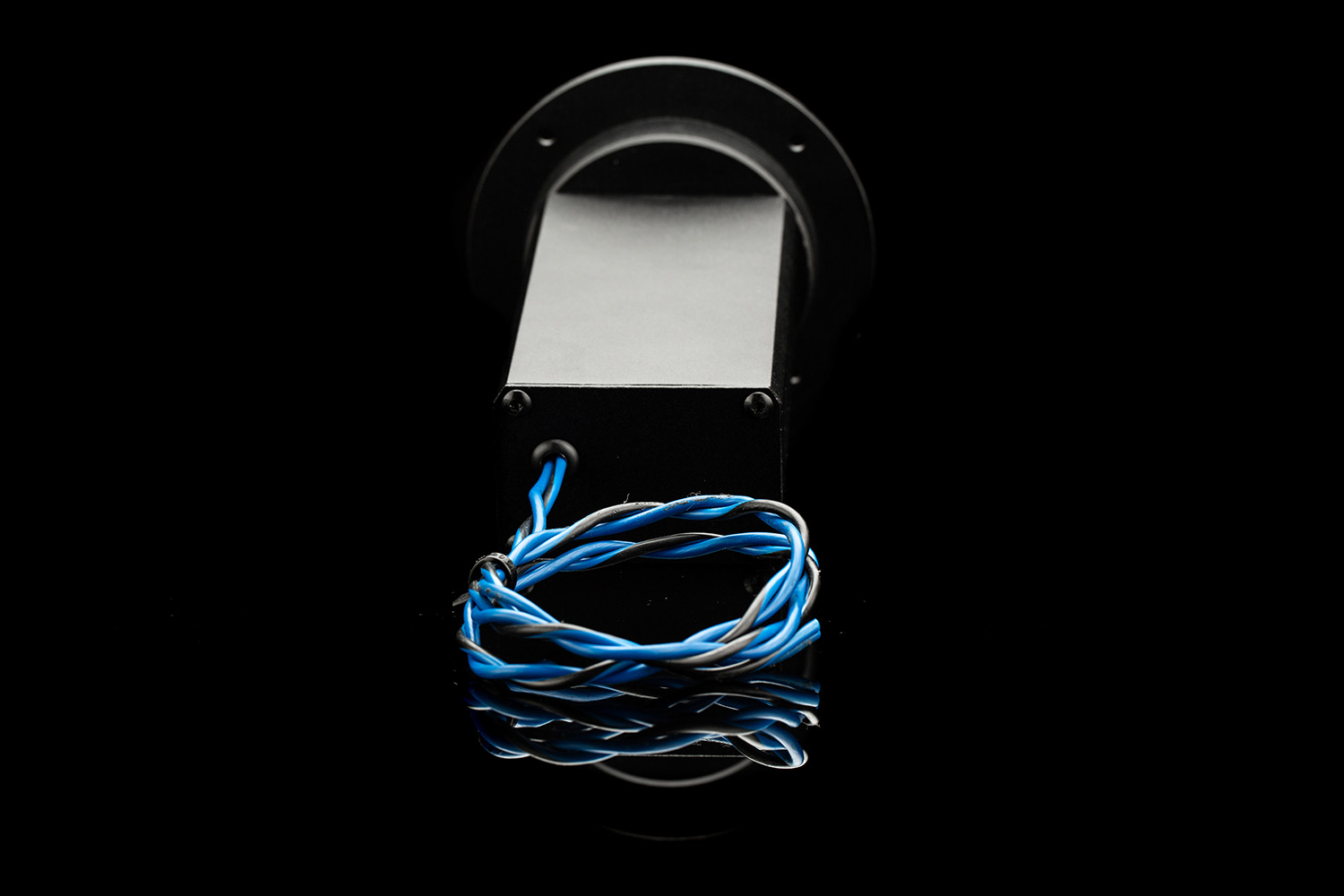

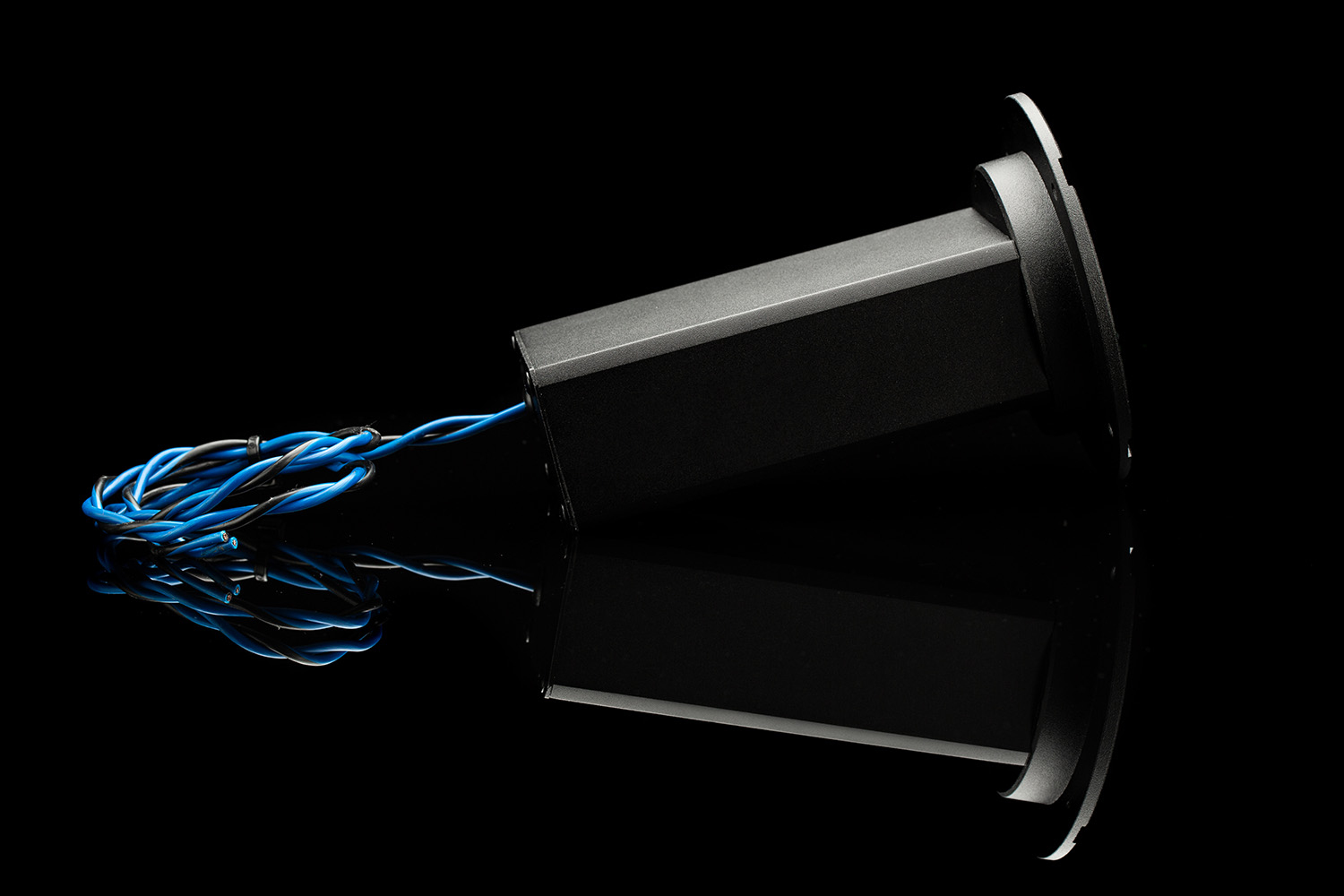

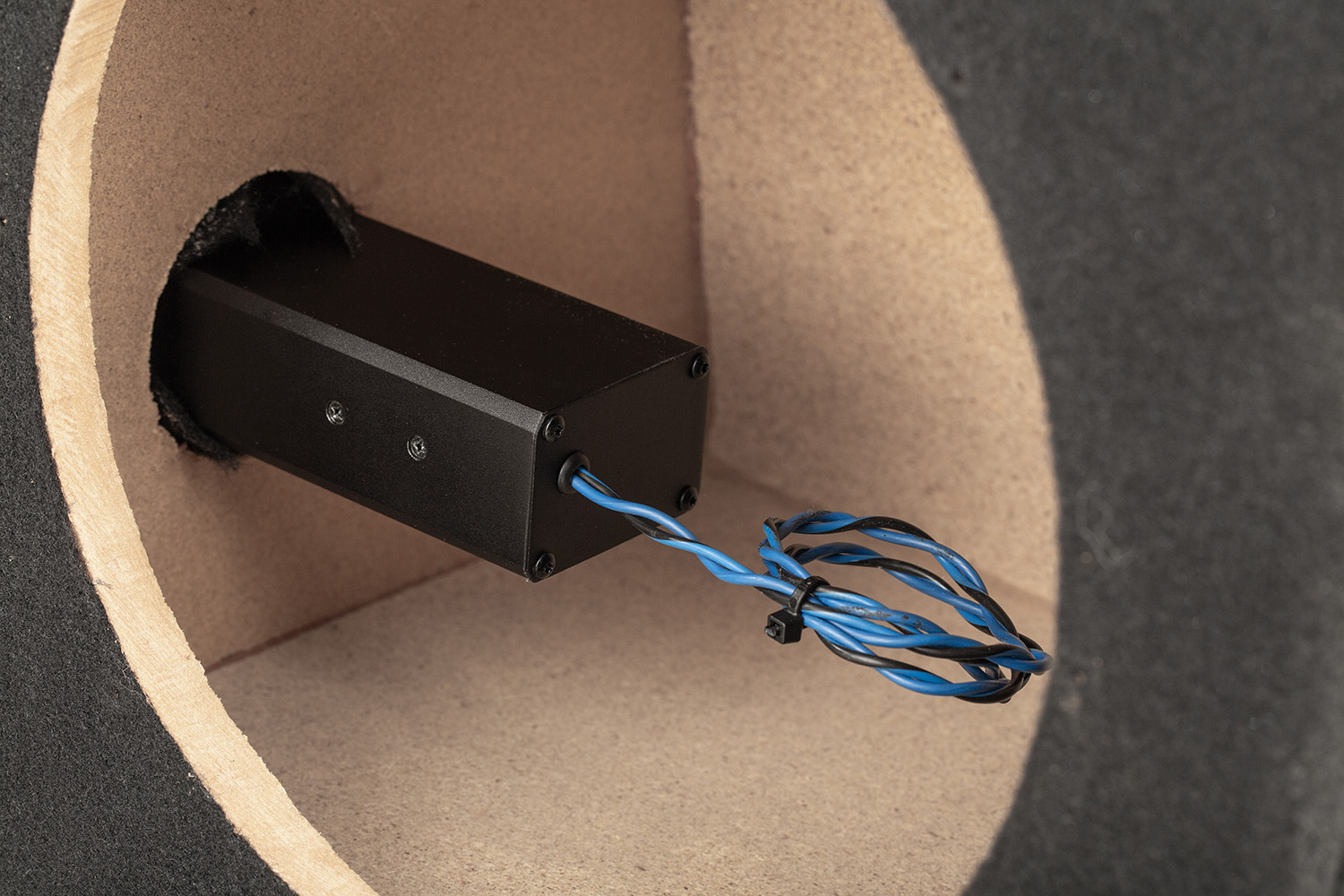

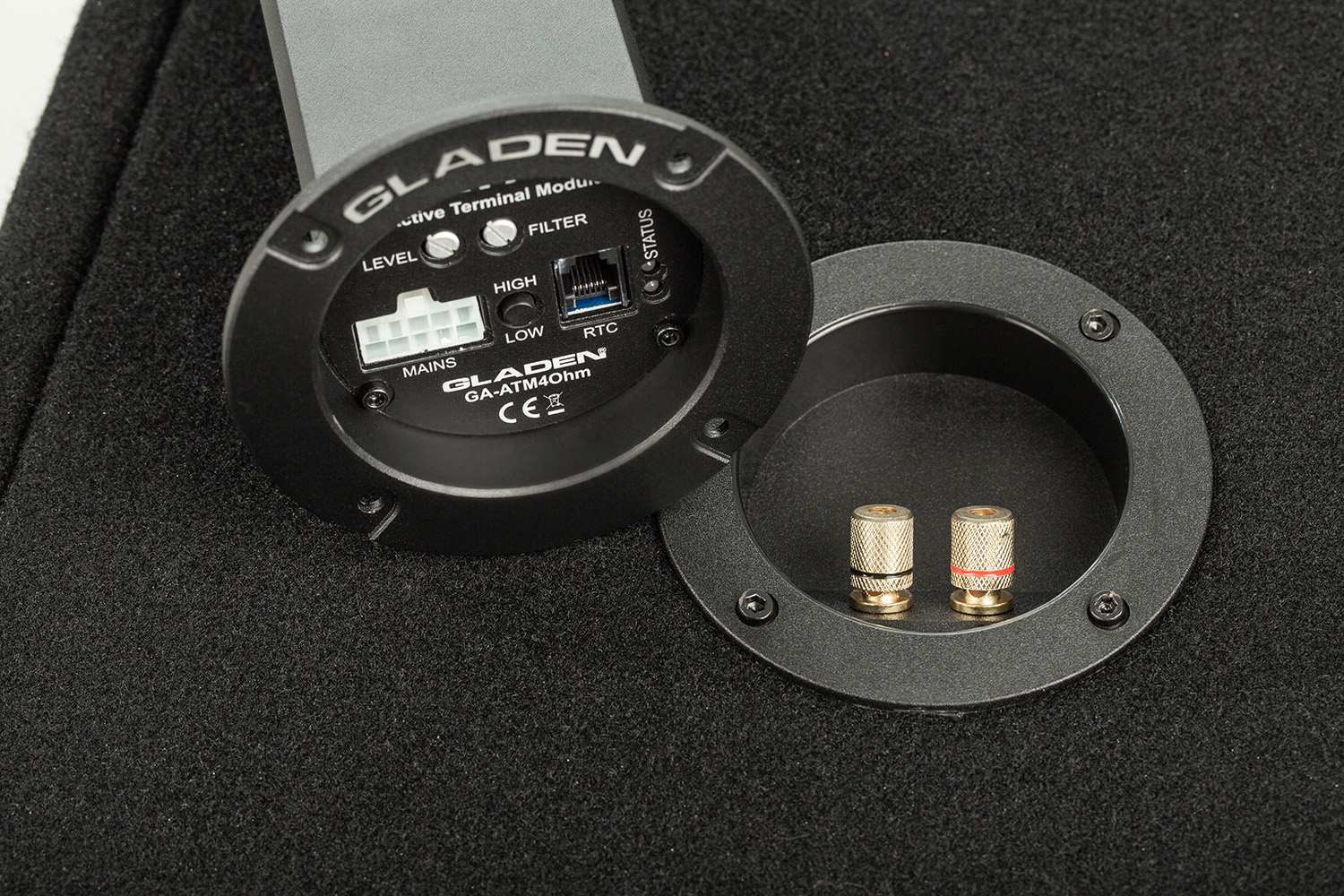

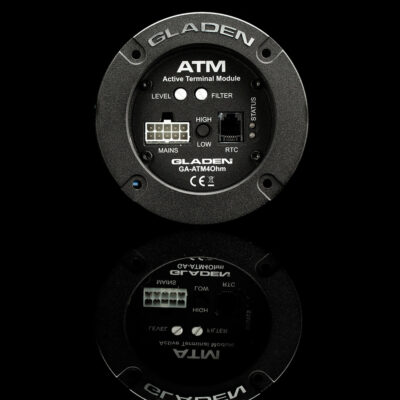

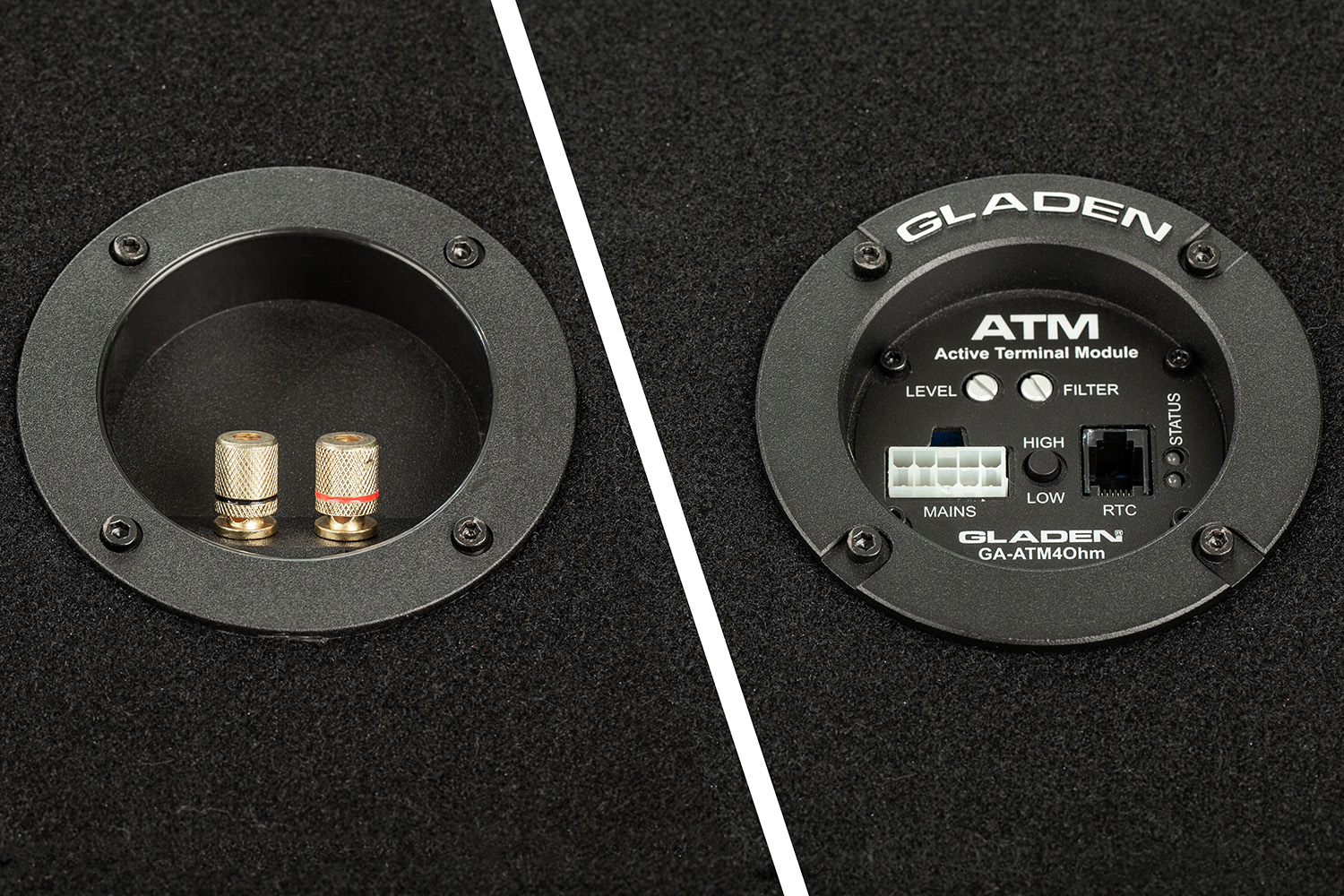

The Gladen ATM 2/4 module can be exchanged for a 78 mm round terminal of a subwoofer cabinet due to its round design.

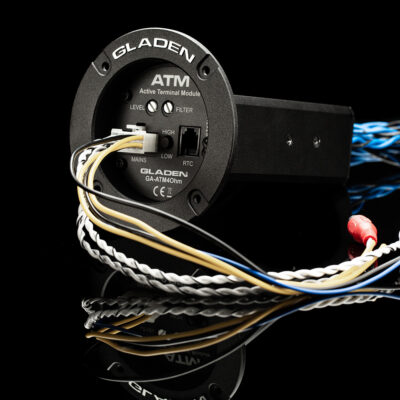

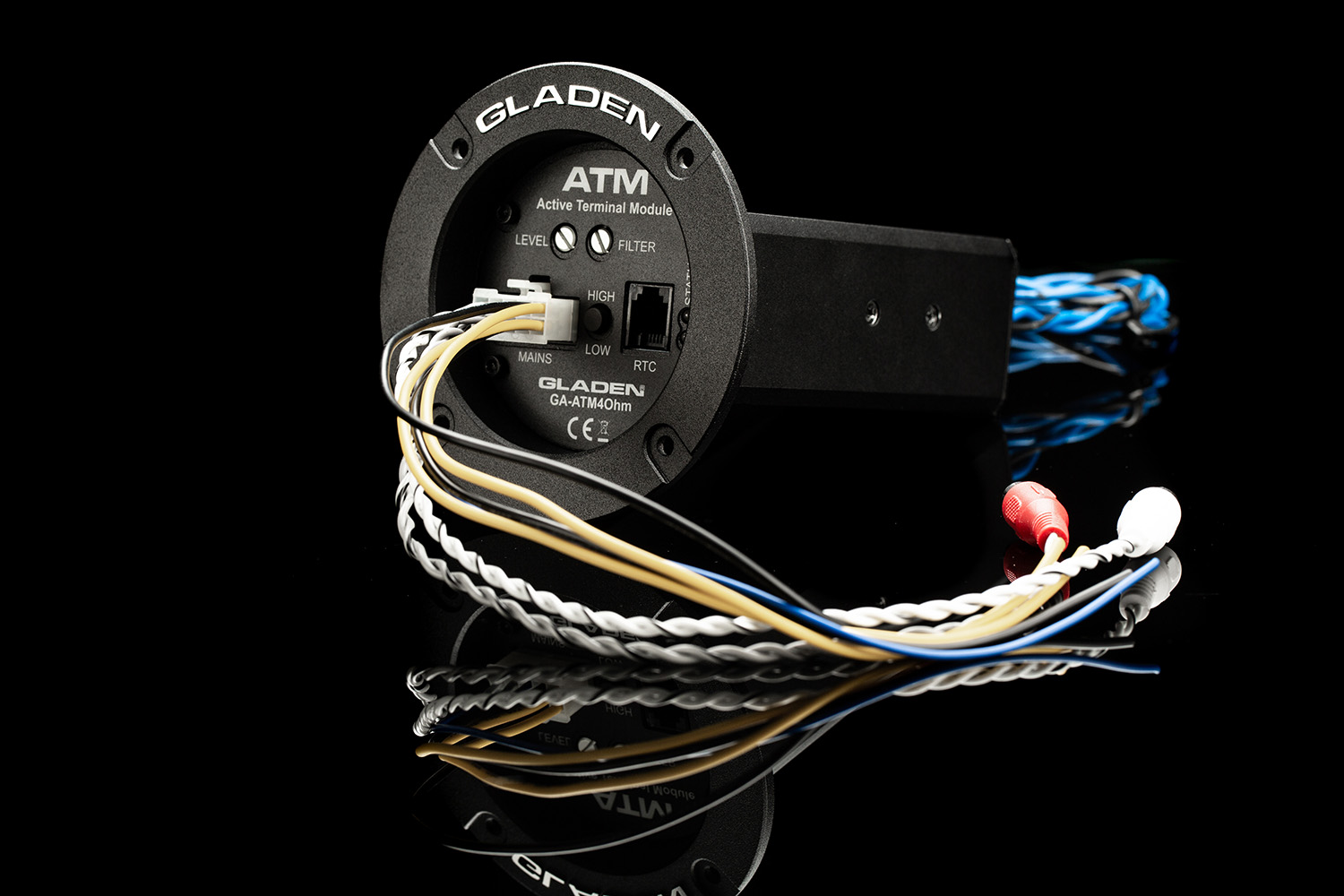

This mono amplifier supplies the subwoofer chassis with 200 Watts RMS at 4 Ohms and is supplied with power and input signals via a Molex Mini Fit JR connector. The amplifier is available for 2 and 4 Ohm subwoofer chassis.

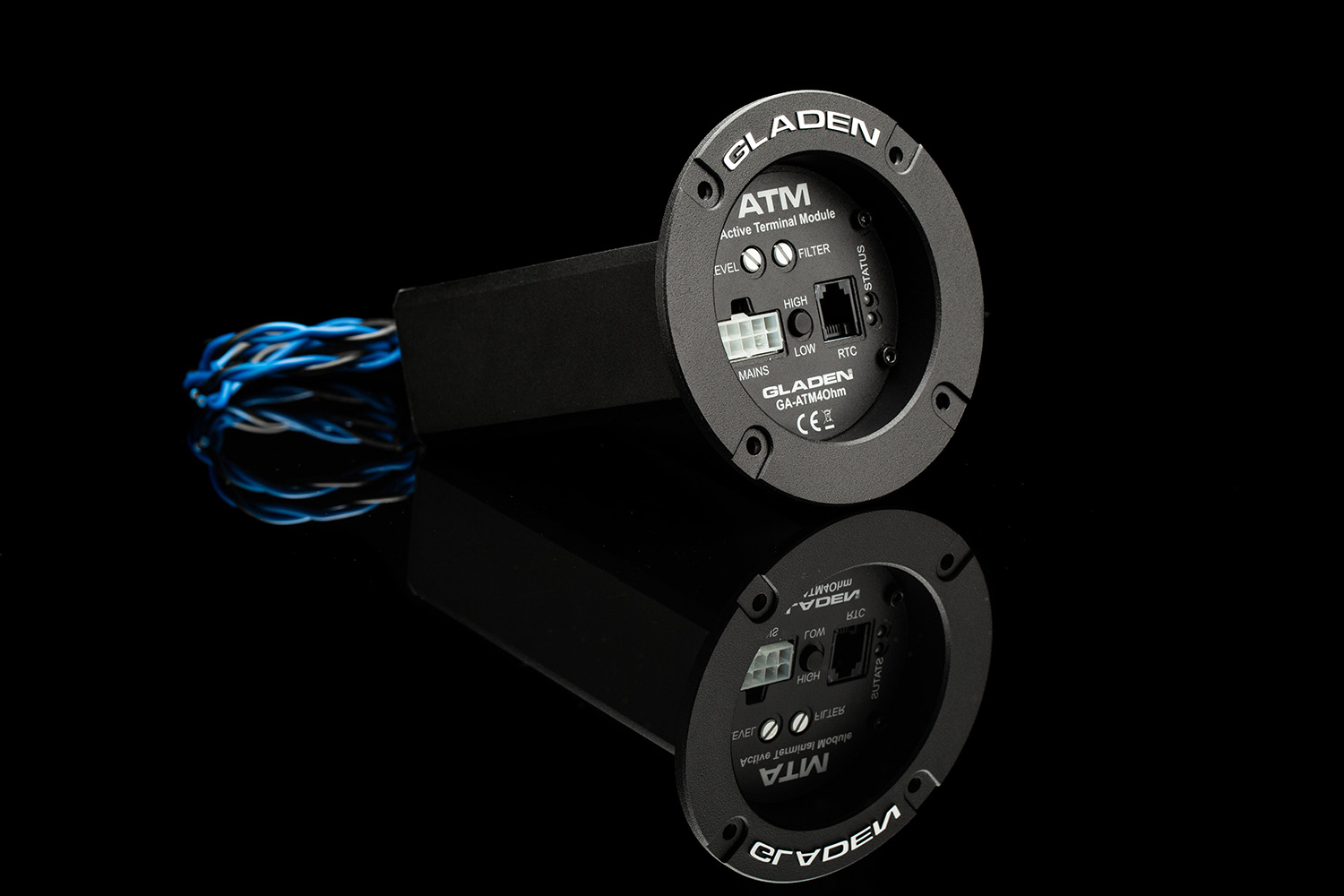

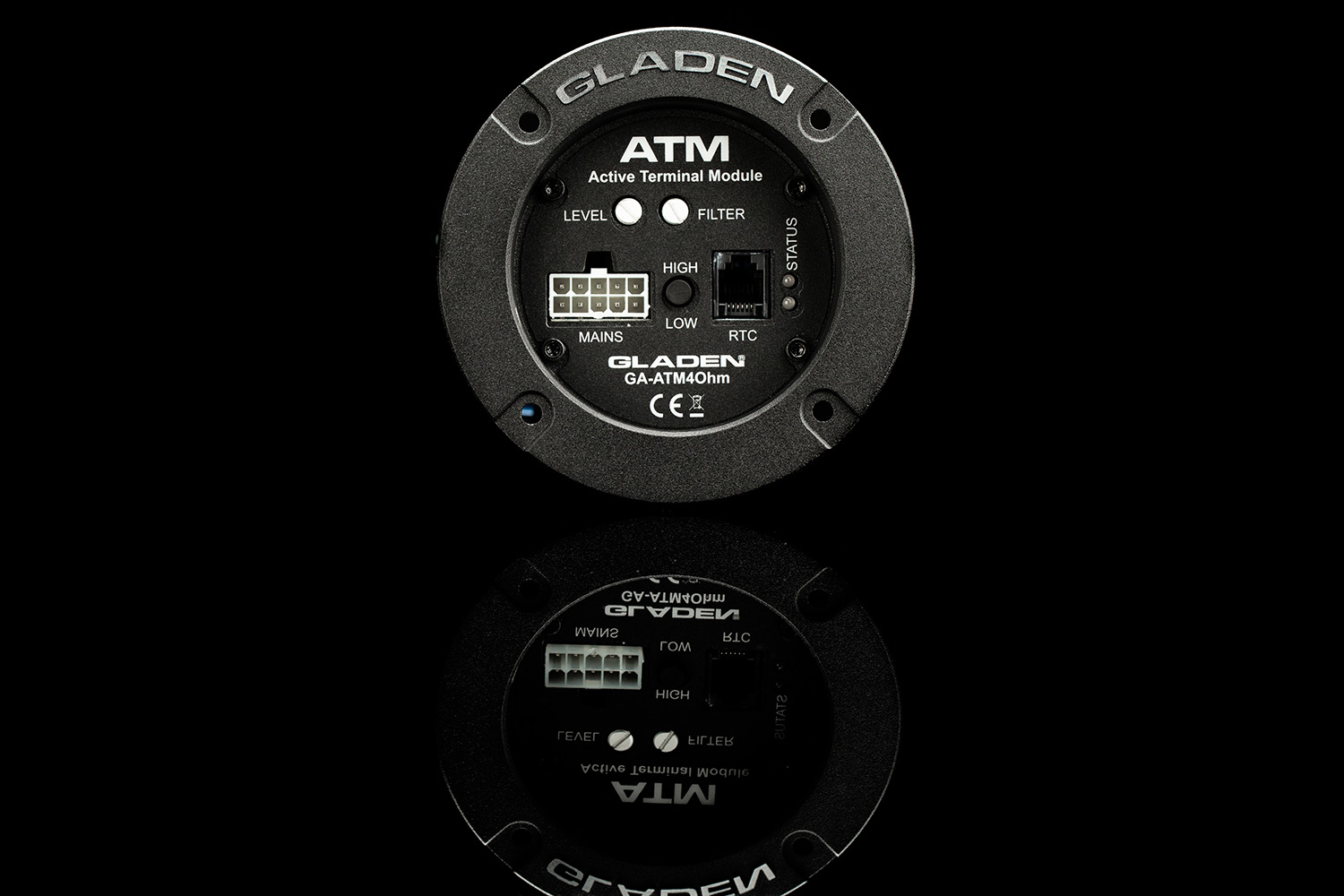

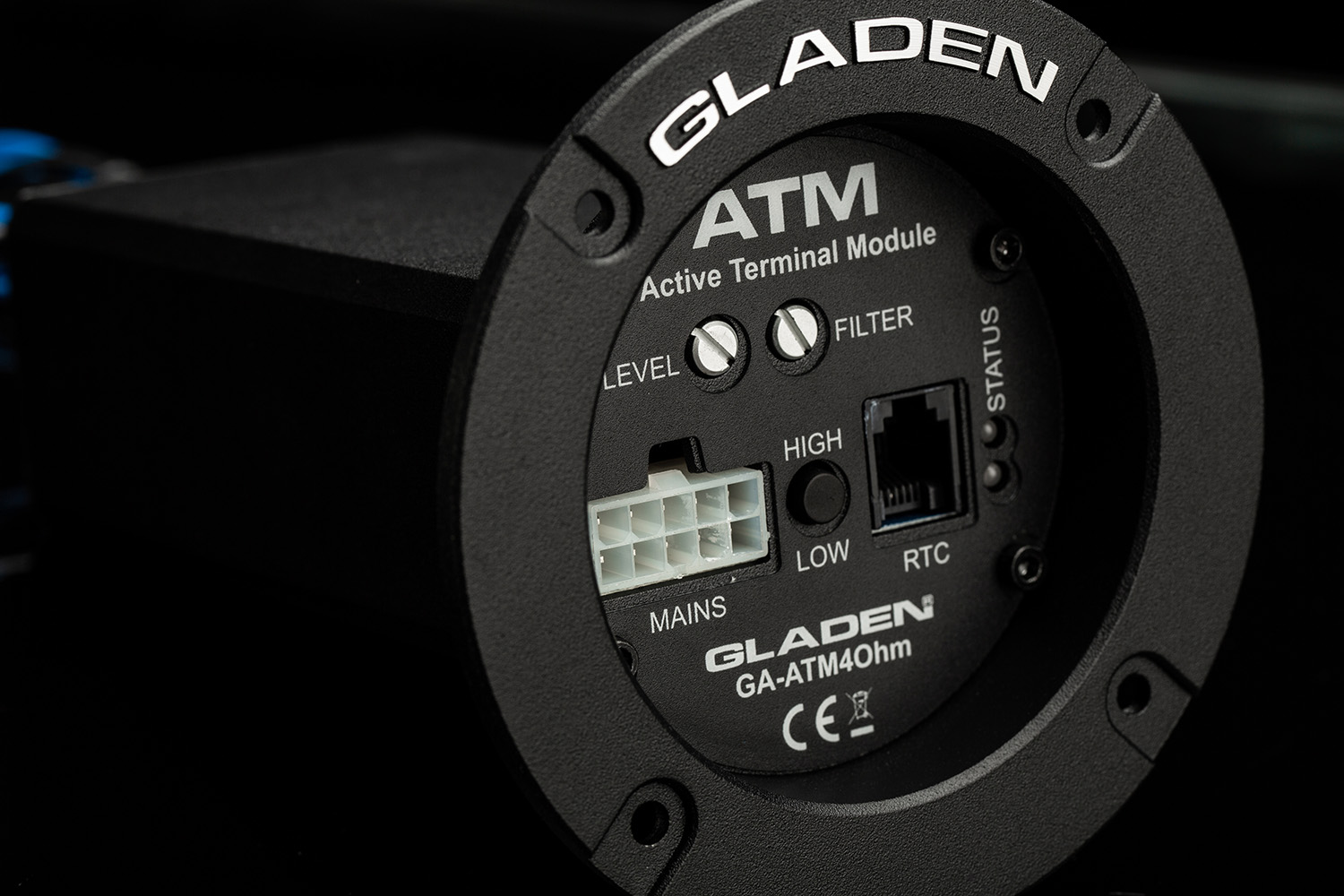

To adjust the subwoofer amplifier, the low pass filter, a high/low input and the level can be set.
With the optional RTC2 module, the amplifier can also be controlled remotely.
SPECIFICATIONS
-
Power: 200 Watts @ 14.4 V
-
Frequency range: 25 – 220 Hz
-
Low pass filter: 50 – 120 Hz, 12 dB/Oct
-
Low-level inputs: Yes
-
High-level inputs: Yes
-
Automatic switch-on: Yes
-
Remote control: Gain (via optional RTC2)
