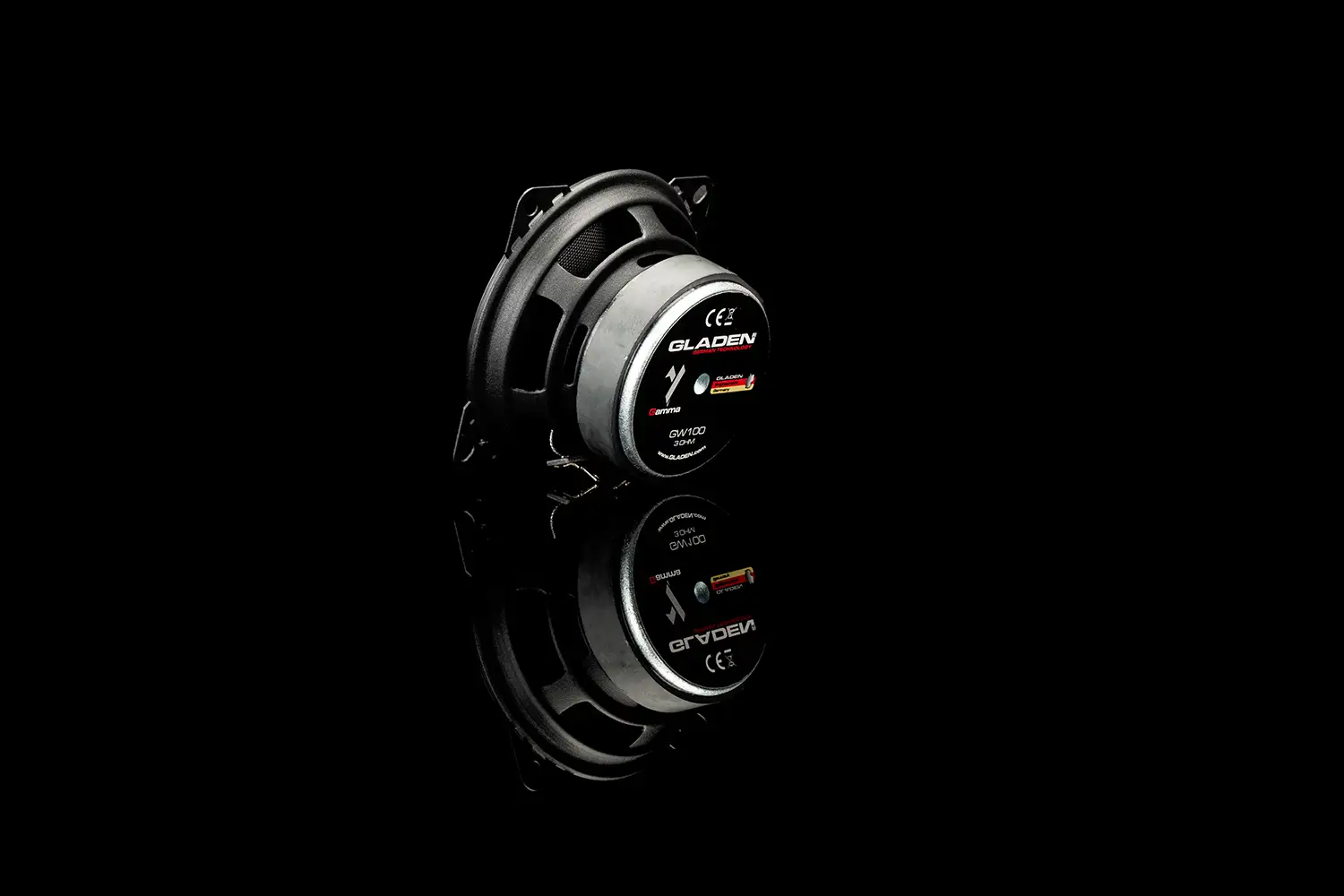

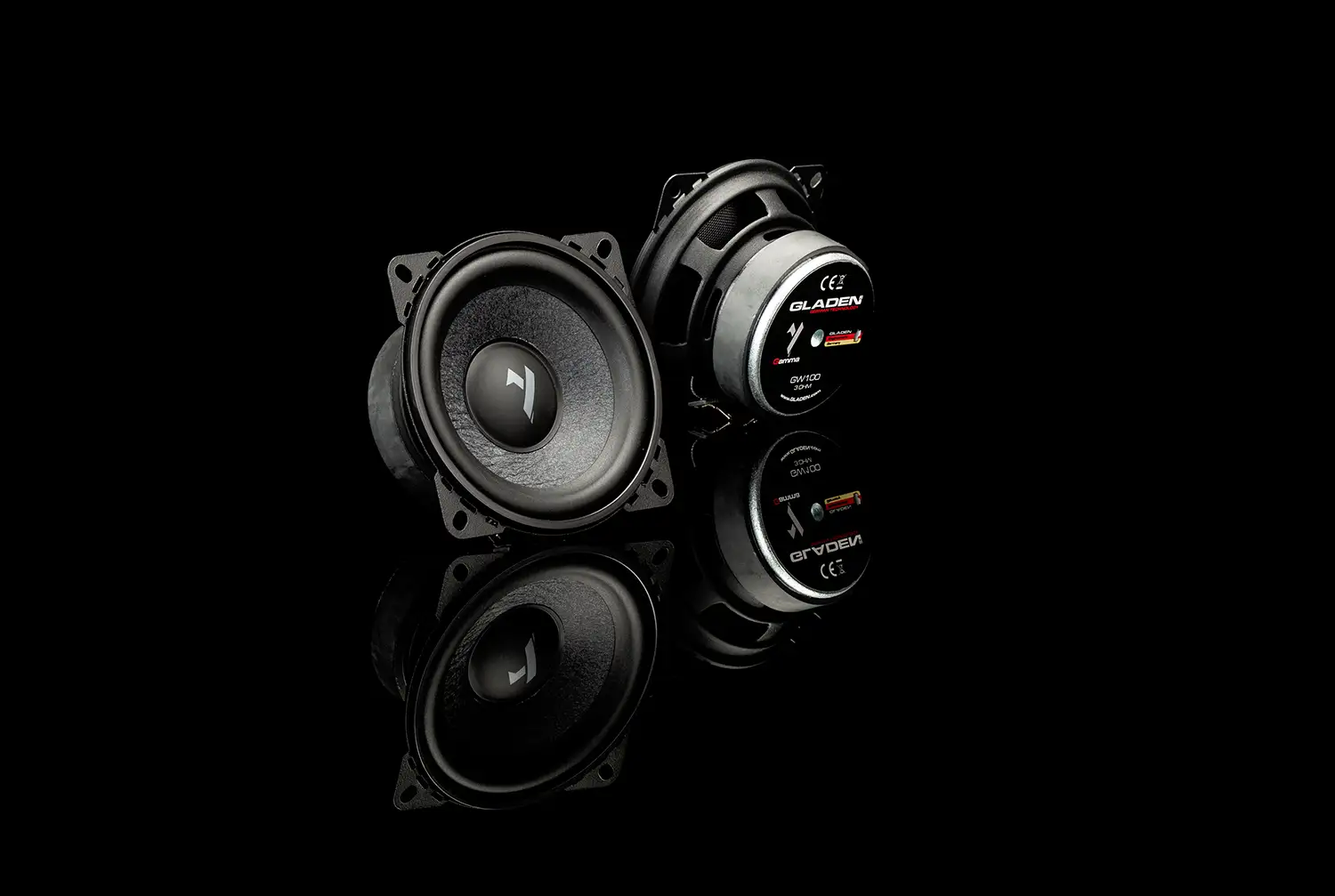

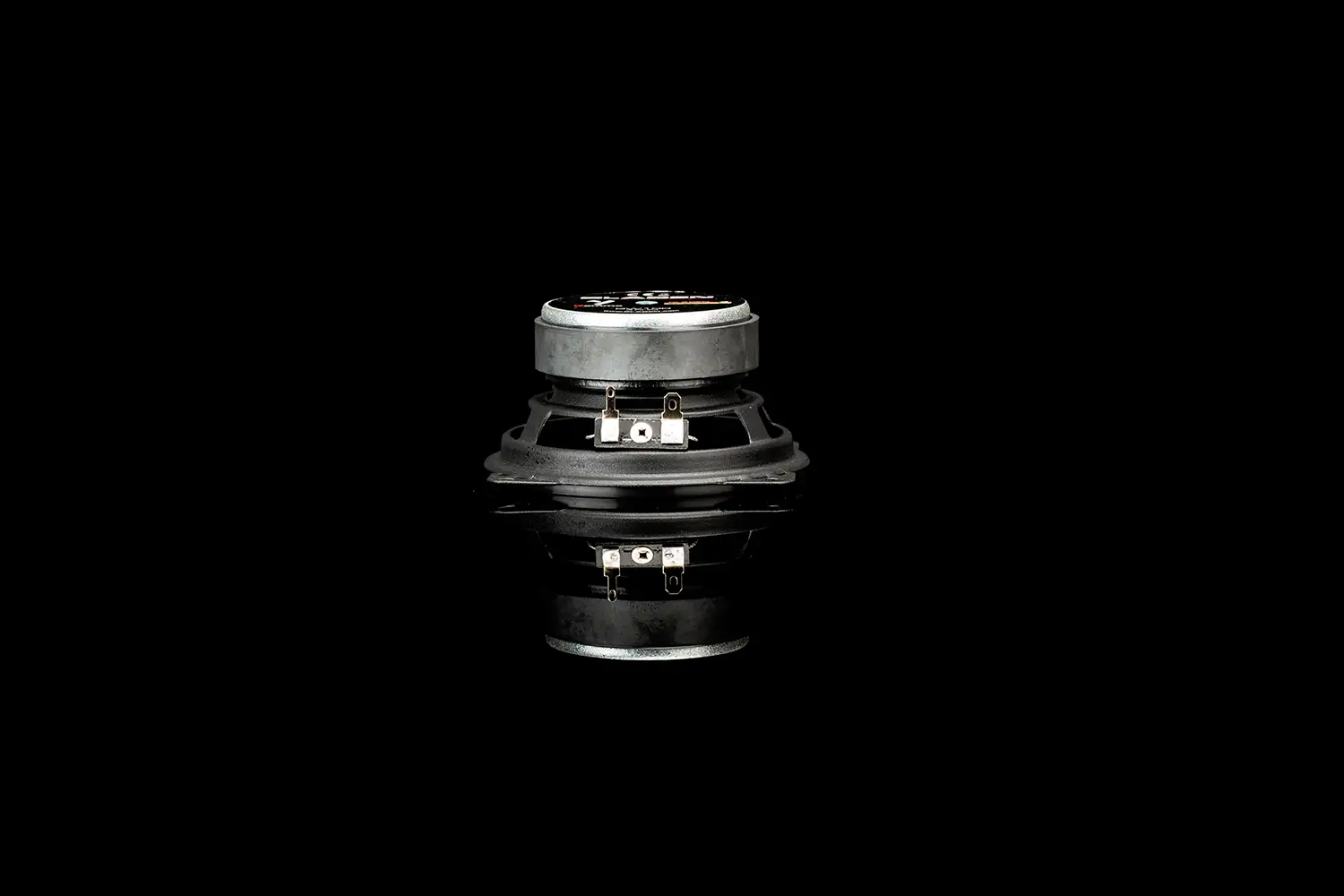

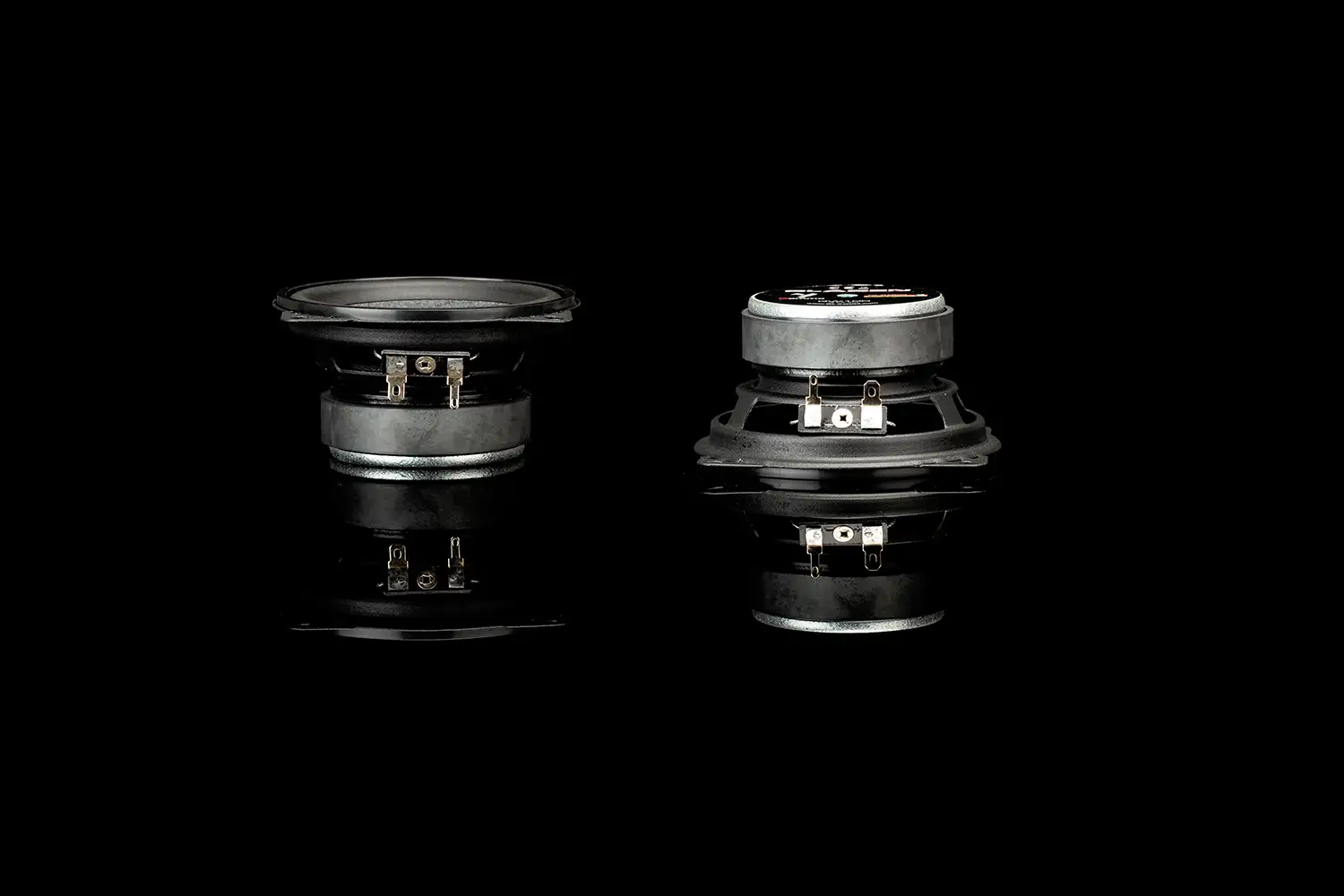

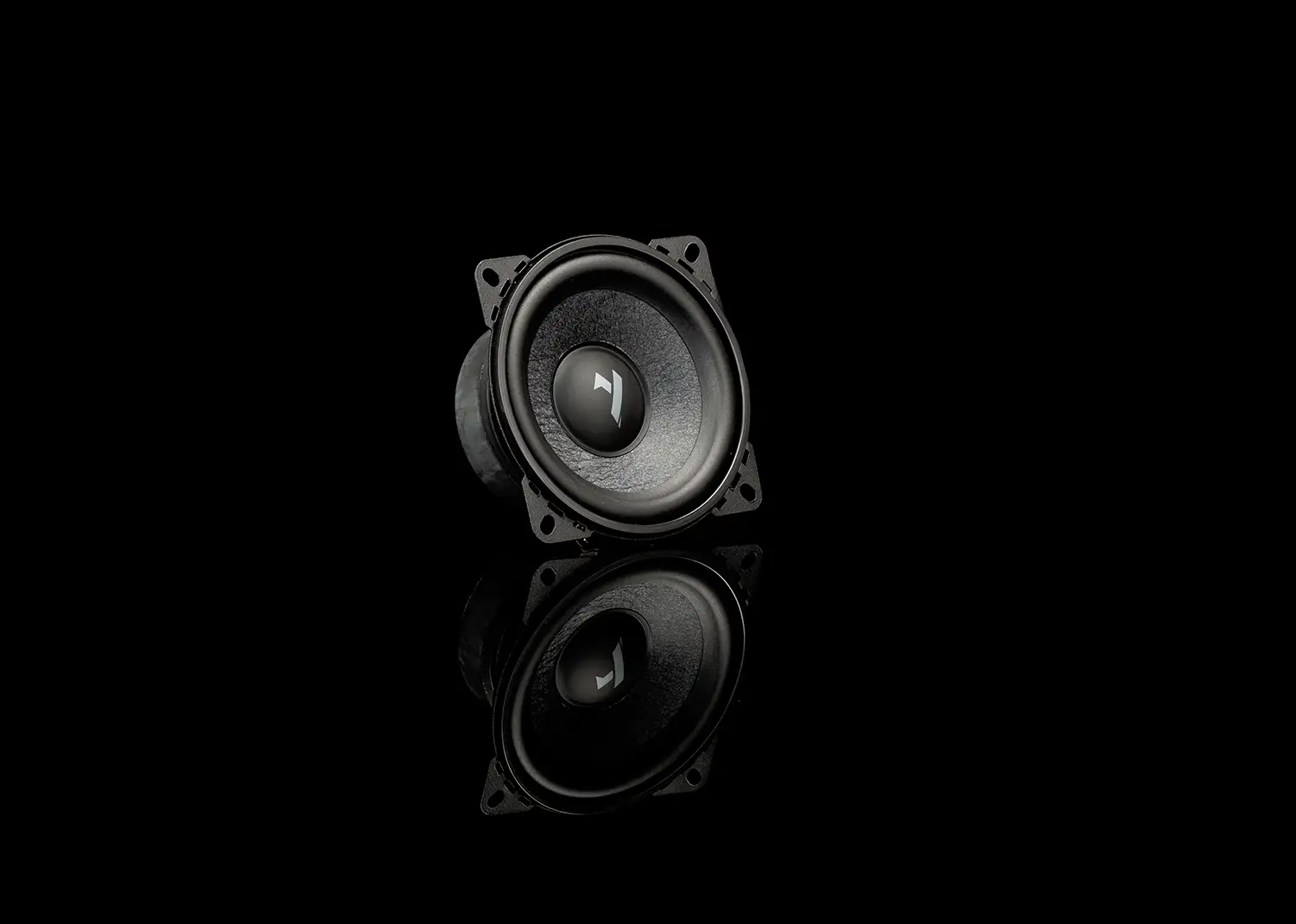

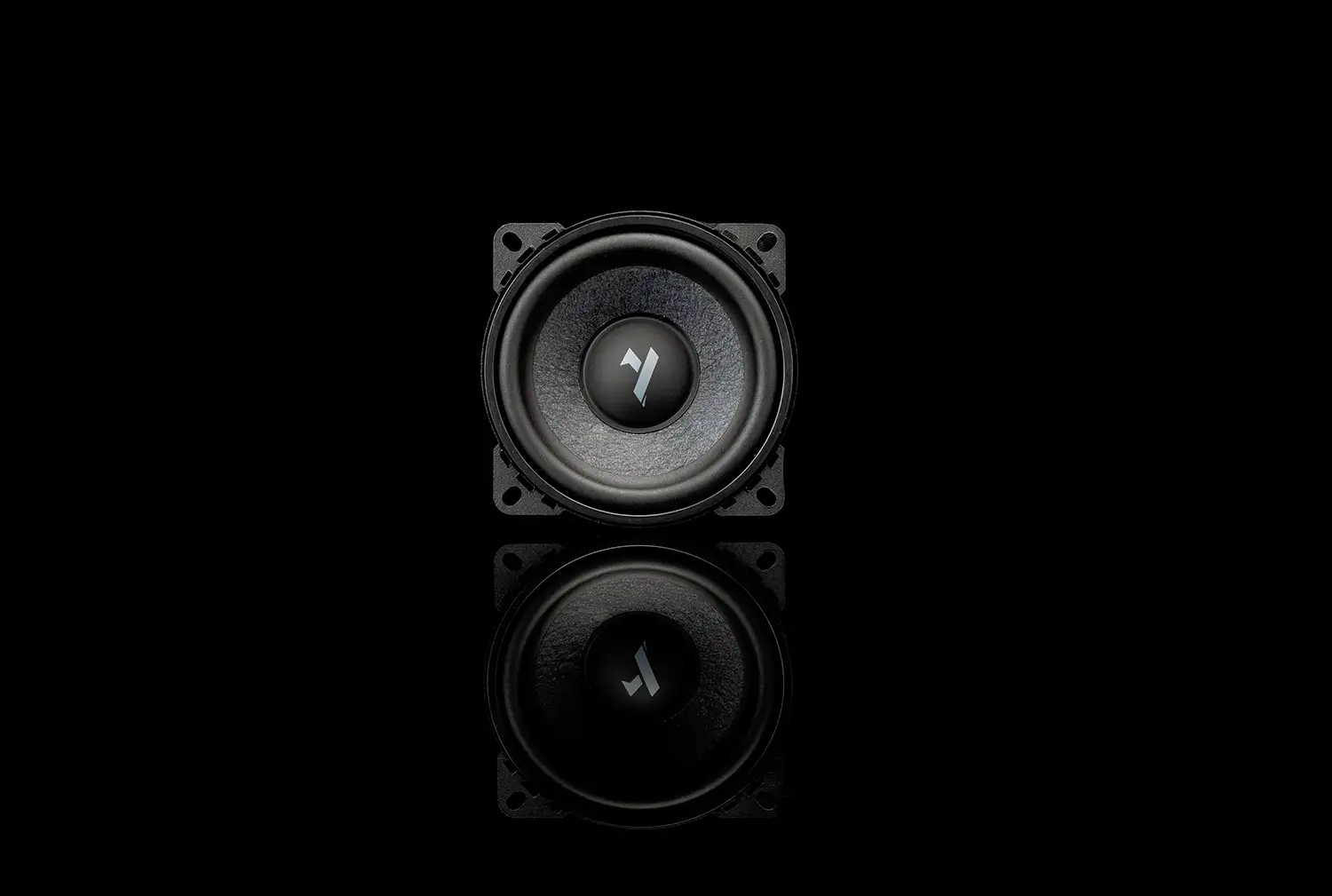

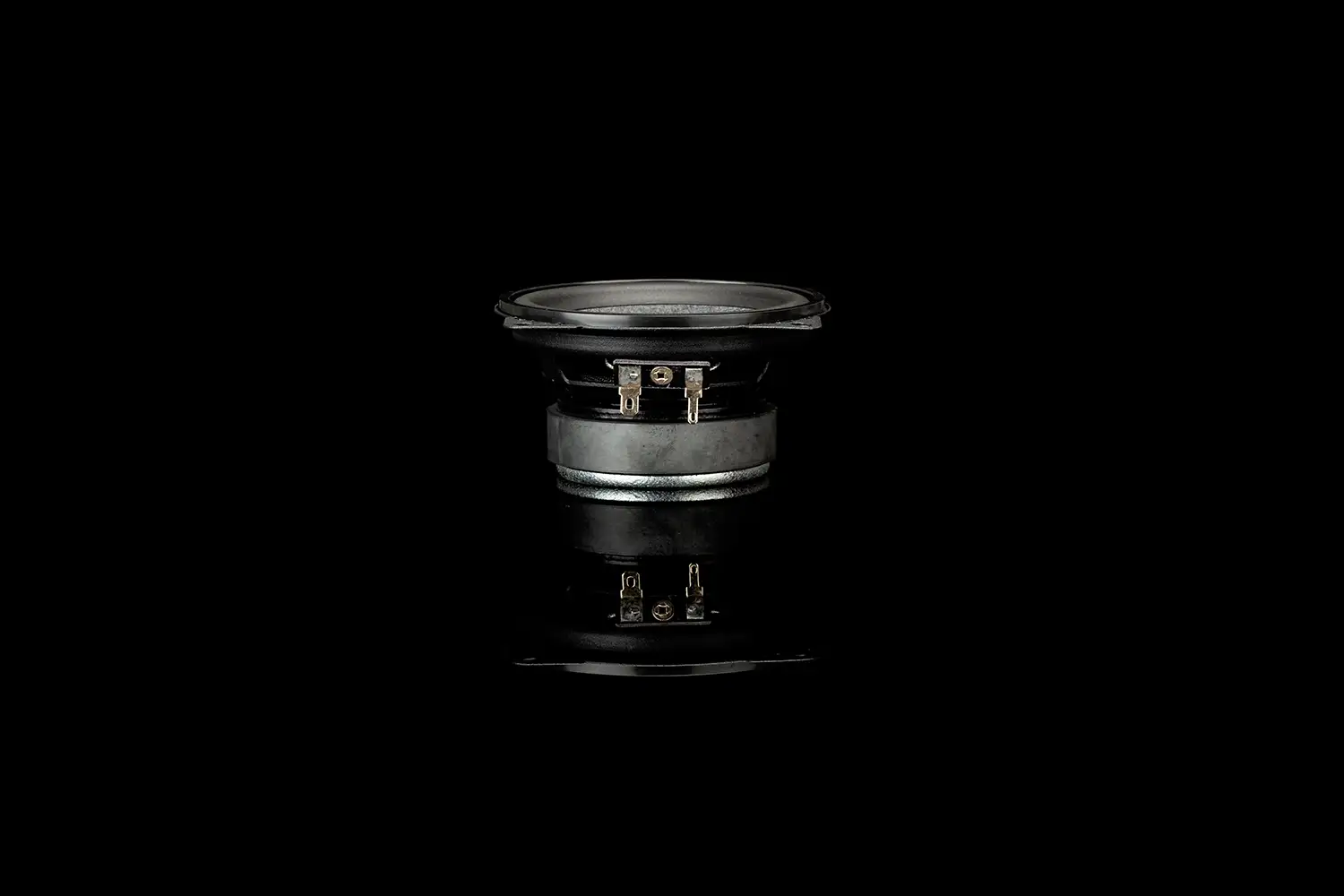

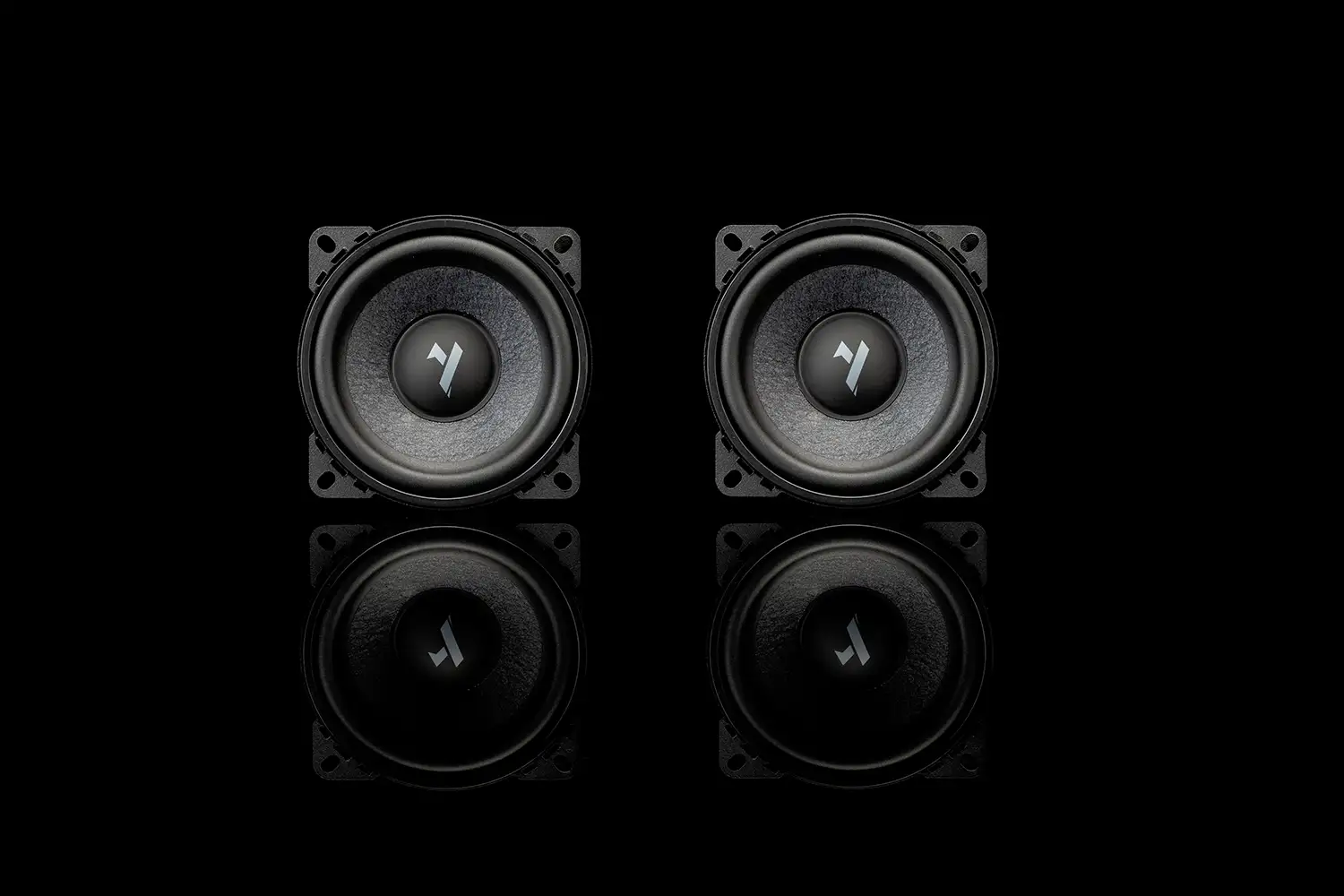

GW 100

100mm Component Speaker (Pair)

  • 100mm Loudspeaker
  • 150 | 100 Watts
  • 3 Ohm Impedance
  • Glass fiber Nomex membrane

Download:

Description

Overview

The GLADEN GAMMA GW100 is a compact woofer ideal for precise midrange and kick bass applications in vehicles. Designed for clear, focused, and balanced sound reproduction, it can fit in even the most limited installation spaces.

Its sound is direct, clean, and controlled. Voices sound clear, speech remains understandable at all times, and instruments are reproduced precisely and naturally. The GW100 gives music structure and order, ensuring stable and pleasant reproduction, especially in places where larger woofers cannot be used.
Its lightweight, rigidly constructed diaphragm enables a fast response and high precision. Consequently, the woofer reacts immediately to impulses and reproduces fine details cleanly. The sound image is lively yet always calm and balanced. This makes the GAMMA GW100 ideal for high-quality front or additional systems.
Thanks to its design, the GW100 is ideal for door or free-air installations and can be flexibly integrated into active or passive systems. It is the perfect complement to compact multi-way systems within the GAMMA series.
The GAMMA GW100 is perfect for those looking for a small, precise, musical woofer with clear midrange, controlled fundamental tones, and uncompromising quality.

  • Size: 100 mm
  • Glass fiber Nomex cone
  • Nomex spider
  • 25 mm voice coil
  • Soft dust cap

Specifications

  • Powerhandling: 140 | 80 Watt
  • Direct current resistance (Rdc): 2,6 Ω
  • Impedance: 3 Ω
  • Resonance frequency (fs): 123 Hz
  • Qms: 2,5
  • Qes: 1,02
  • Qts: 0,73
  • VAS: 1,5 Liter
  • Mms: 5,6 g
  • Sq: 60 cm²
