R Core 1|600

R Core 1|600

Mono Class D Amplifier

  • 1-channel amplifier
  • Class D technology
  • Stable at 2 ohms
  • 620 watts

Description

Overview

The RC1|600 is an uncompromising mono amplifier designed for subwoofer applications where control, stability, and continuous power output are paramount. The Class D amplifier delivers high efficiency while ensuring precise reproduction of low frequencies—ideal for high-performance bass systems in daily use.

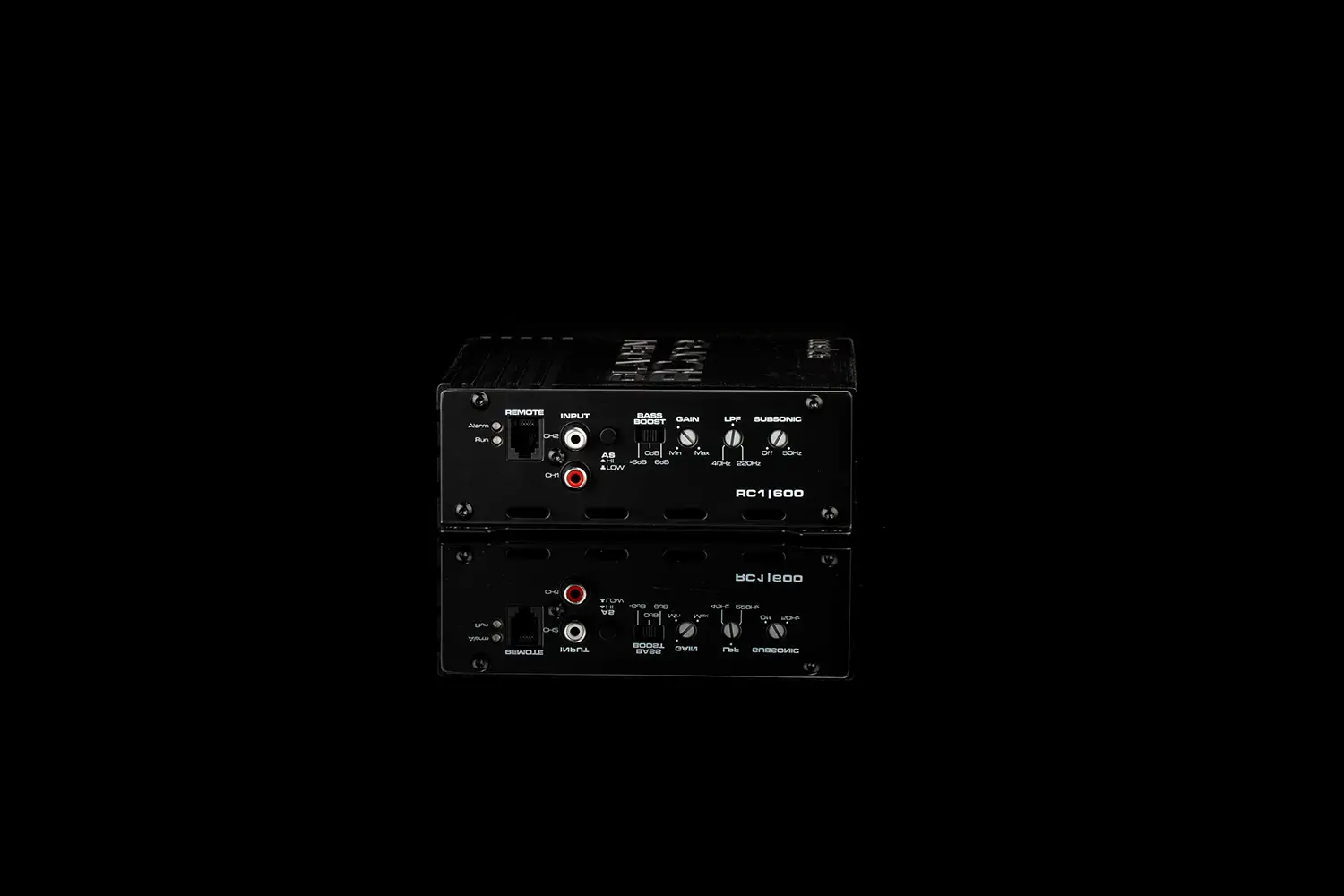

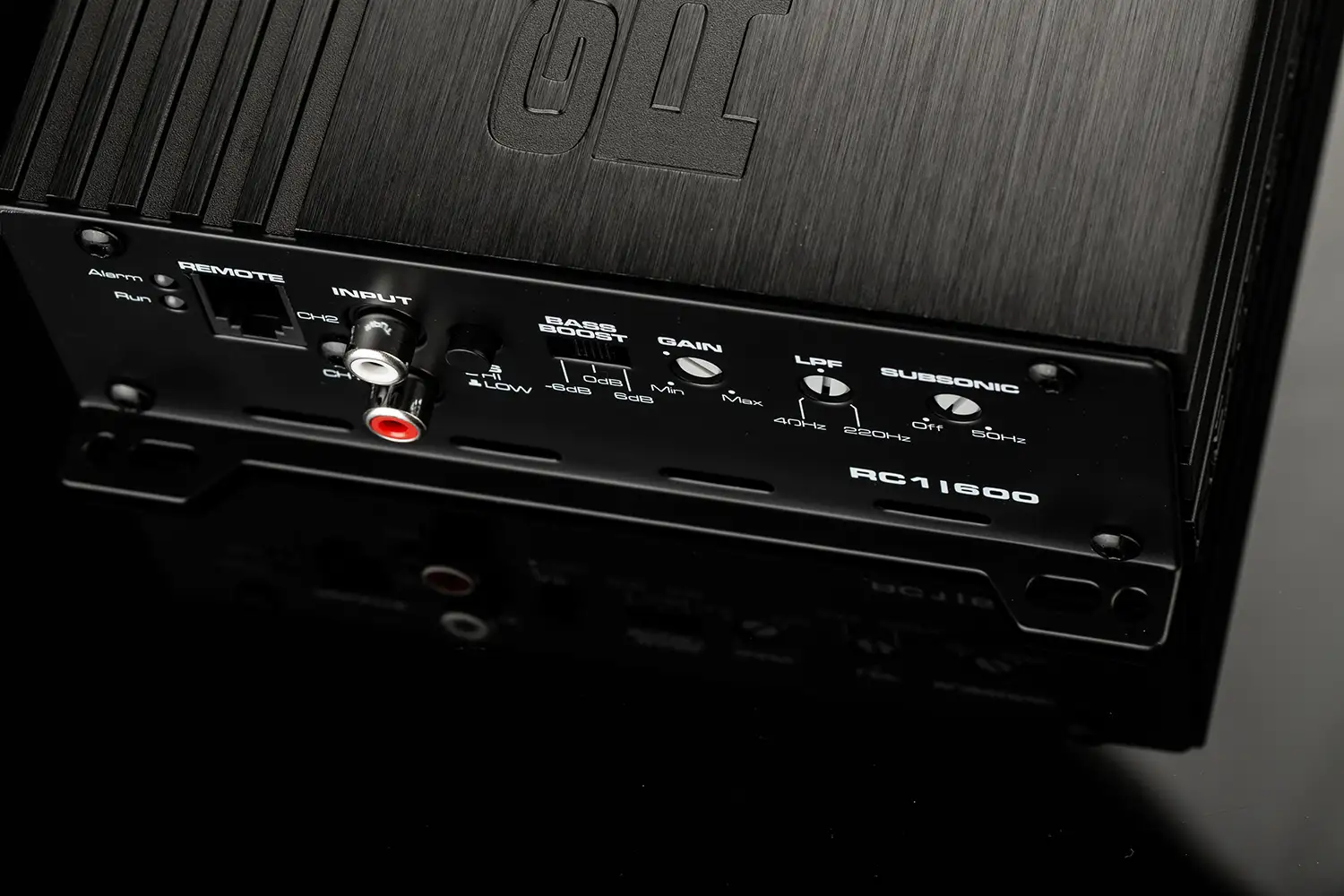

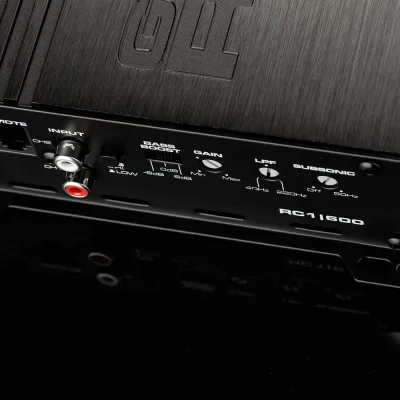

Thanks to its high-level and low-level inputs, the RC1/600 can be integrated into both OEM and aftermarket setups. The analog controls allow for quick and intuitive adjustment directly on the unit, without the need for additional software.

Key features:

  • Class-D mono power amplifier
  • Stable operation at low impedances
  • Variable low-pass filter for precise subwoofer connection
  • Subsonic filter to protect the speaker
  • Adjustable bass boost for targeted level adjustment
  • RTC connection

Specifications

  • Output power at 4 ohms: 395 watts
  • Output power at 2 ohms: 620 watts
  • Input voltage: 0,4V-10V Highlevel | 0,2V-5V Lowlevel
  • Frequency range: 10-220Hz
  • Lowpassfilter: 40-220hz/ 24db/Oct
  • Subsonic: 20-50hz/ 24db/Oct
  • Bassboost: -6 / 0 / +6db
  • Efficiency above all else: > 80 %
  • Auto-On (only High Level): Off-BTL
  • Operating voltage: 10-16 vaolts
  • Start/Stop: 7,5 volts / 3 sec
  • External fuse: 40 A
  • Dimensions: 198 x 150 x 52 mm
  • Weight: 1150 gramm
