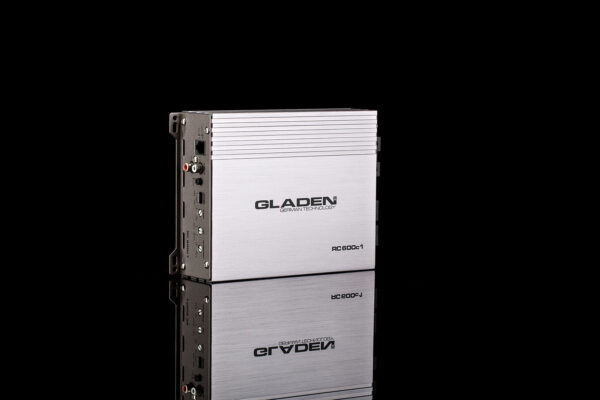

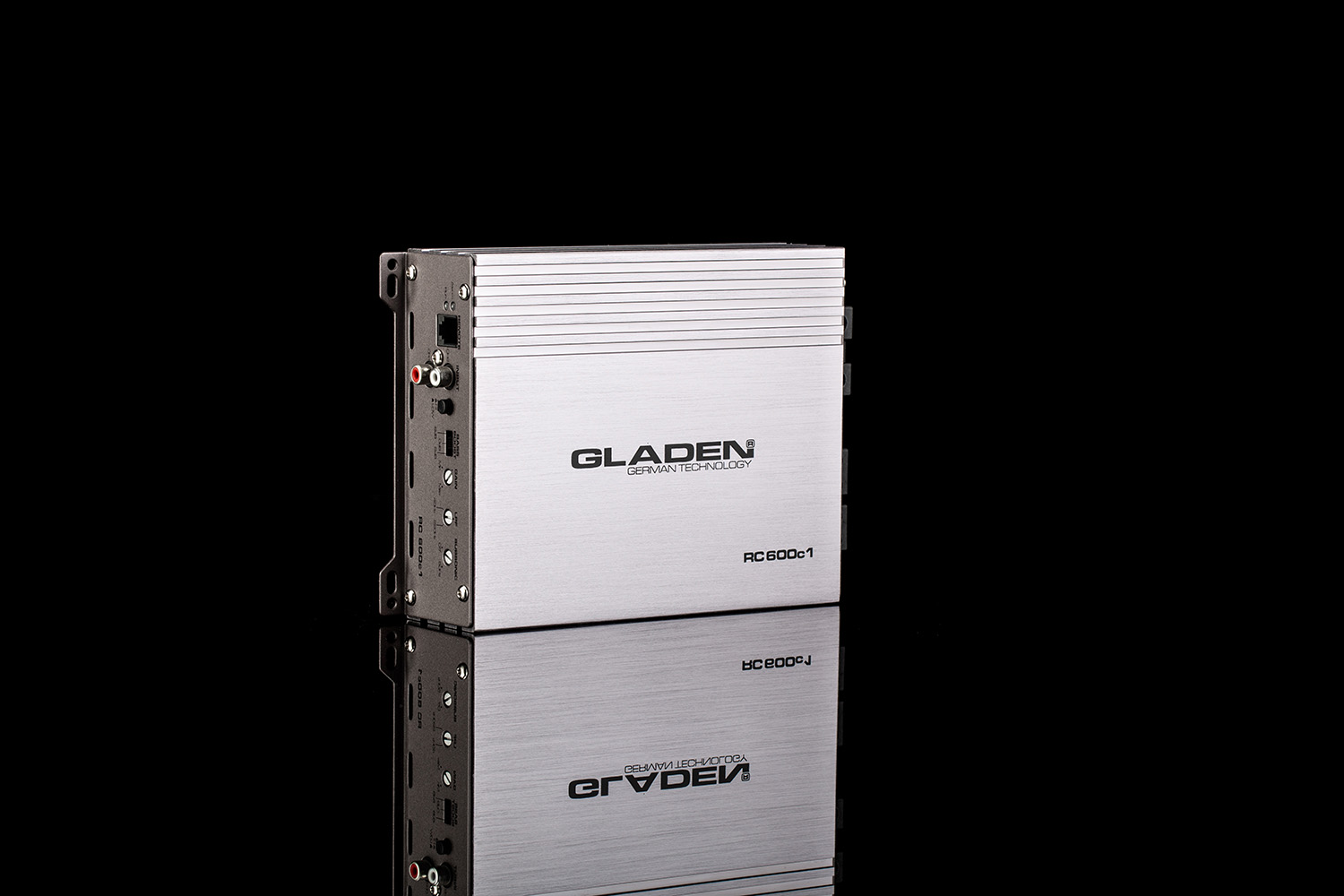

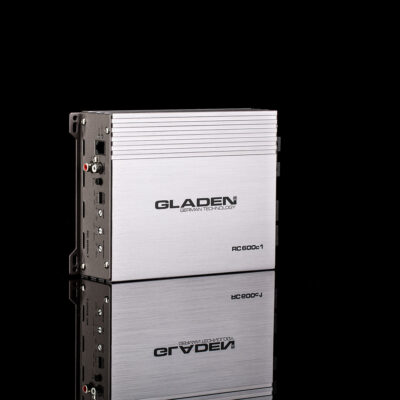

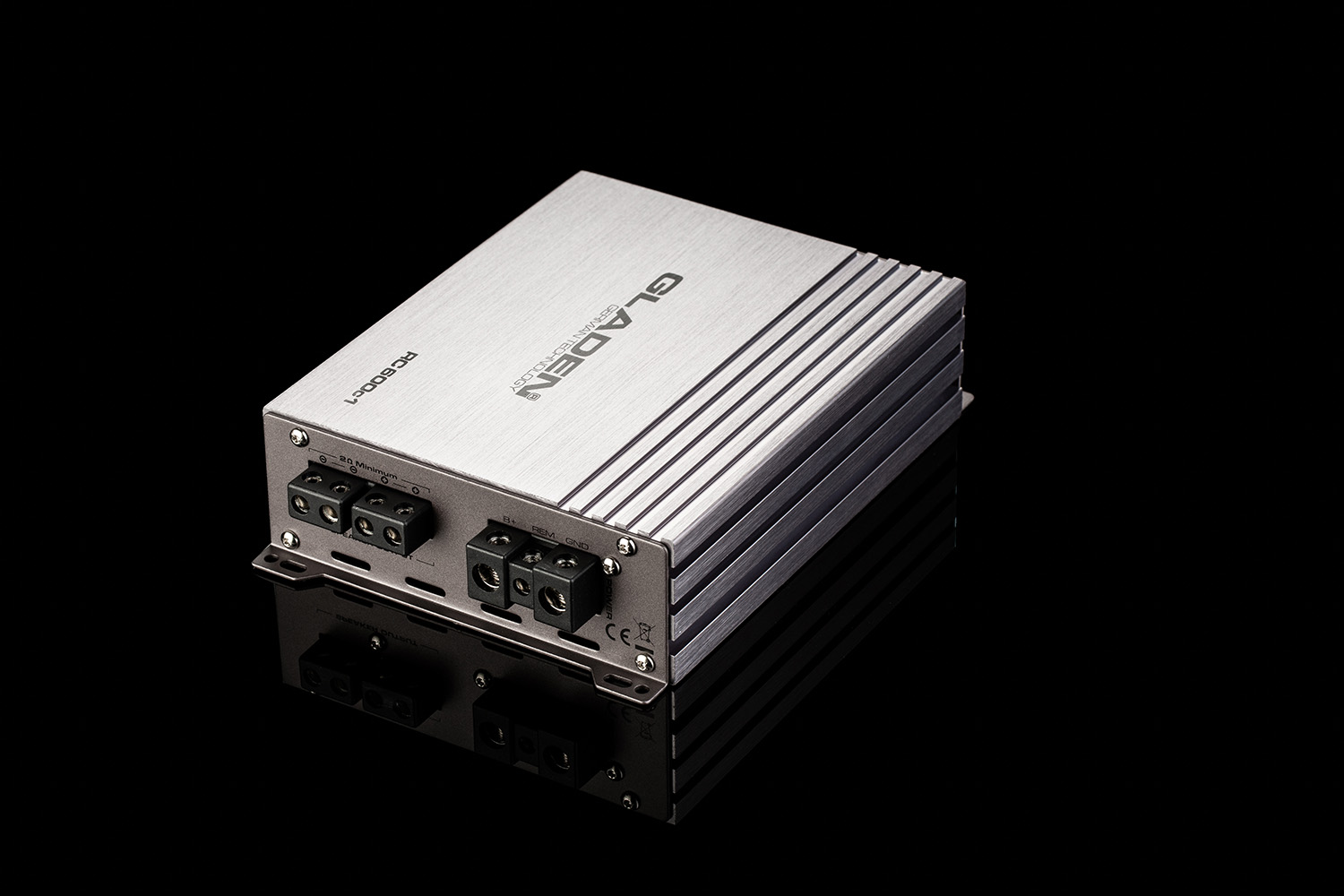

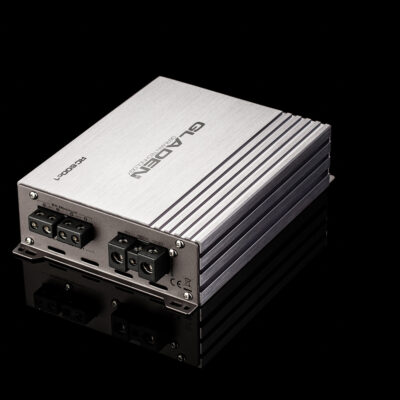

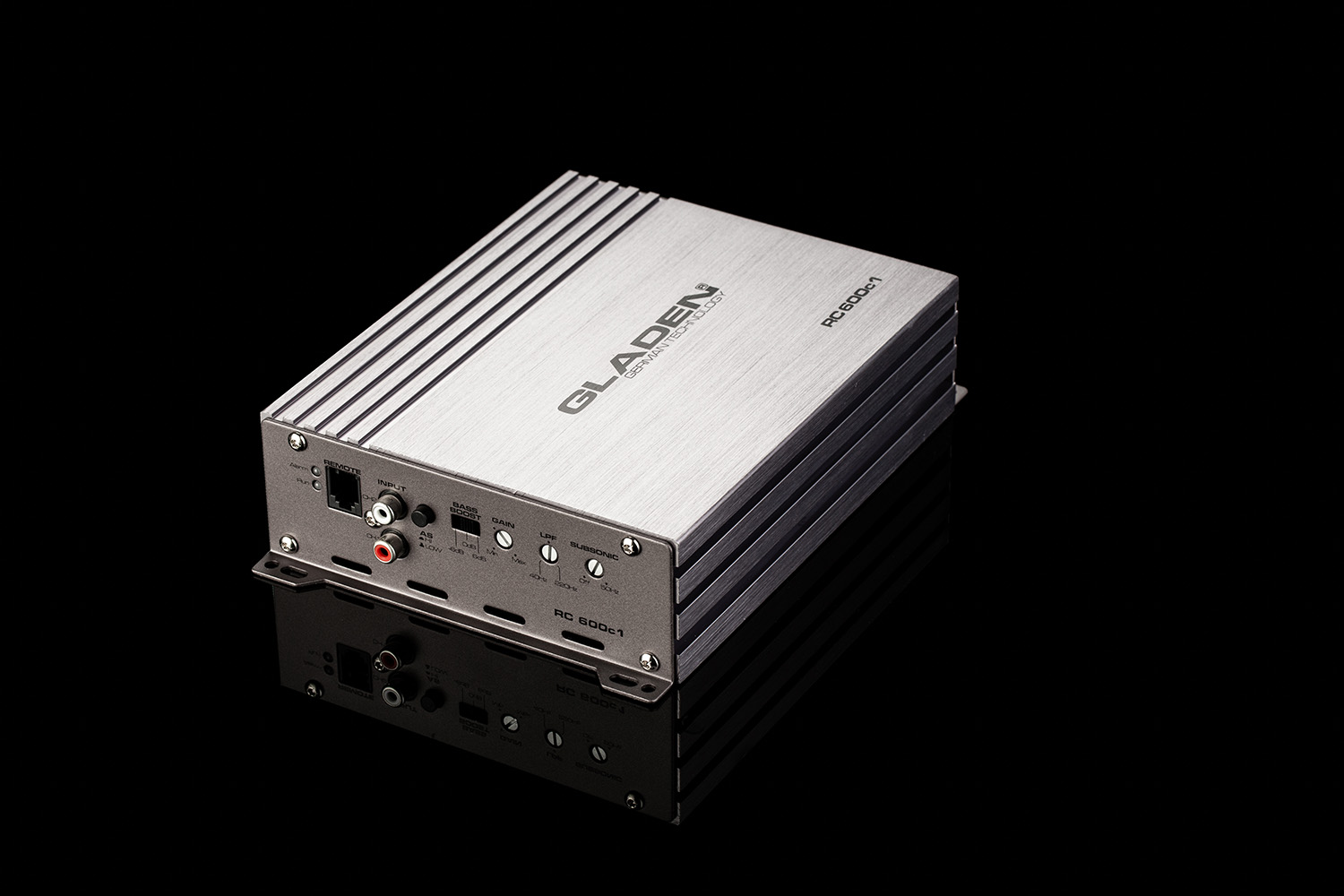

OVERVIEW
- Mono amplifier CLASS-D
- High-level with auto sense
- Double-sided PCB and
- SMD components
- Optional remote control module

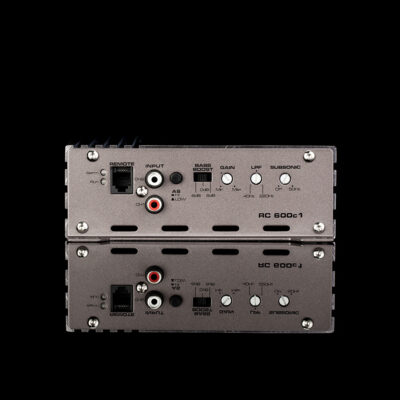

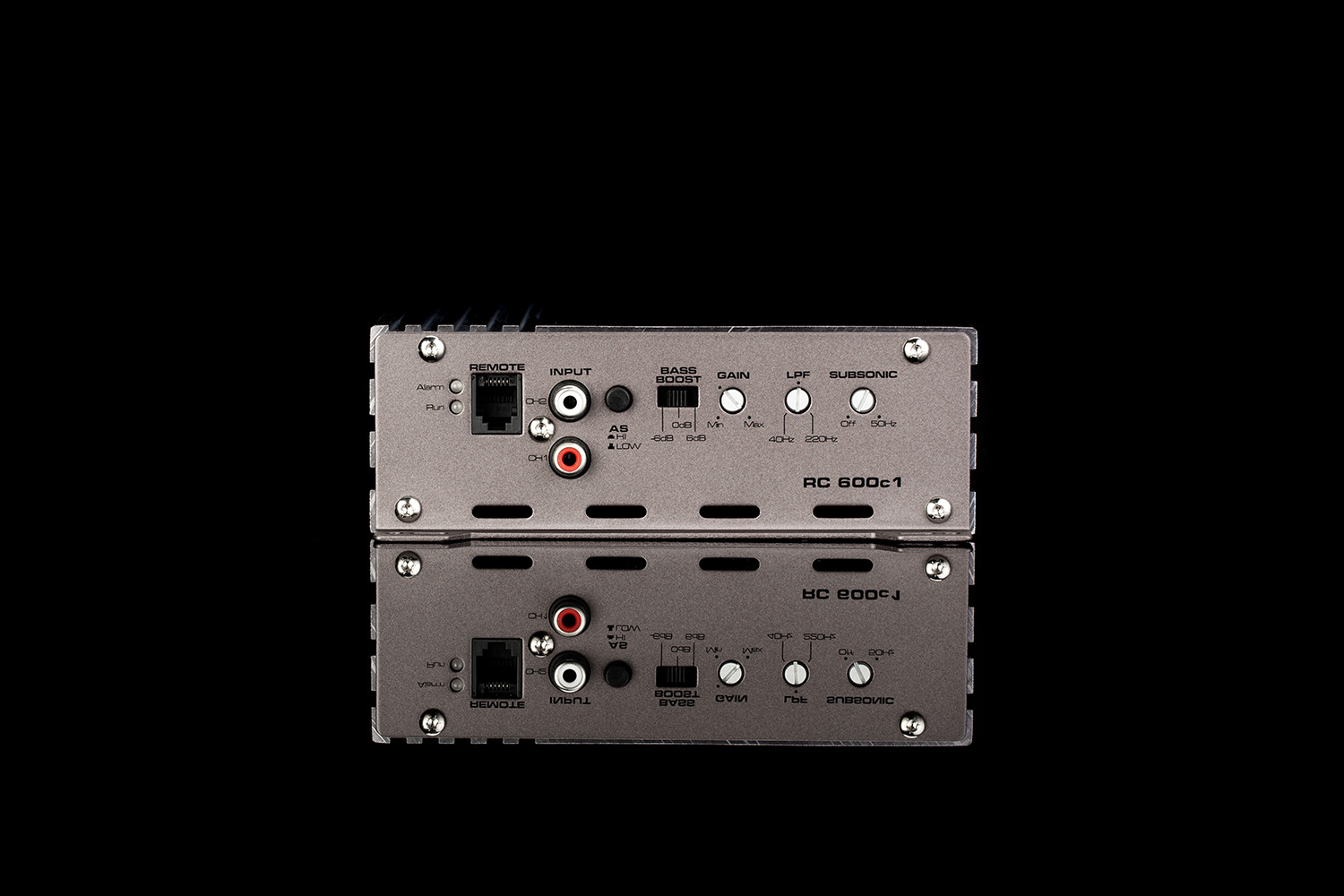

FUNCTIONS
- Input with low or high level signal
- High level with auto-sense function (no remote control signal required)
- Low-pass filter from 40 to 220 Hz
- Subsonic filter from 10 to 50 Hz
- Bass boost: – 6 dB, 0 dB or + 6 dB
- RC-RTC wired remote control (optional)
- Overheat, overload, short circuit and speaker DC protection
- Solid, heavy aluminum heat sink

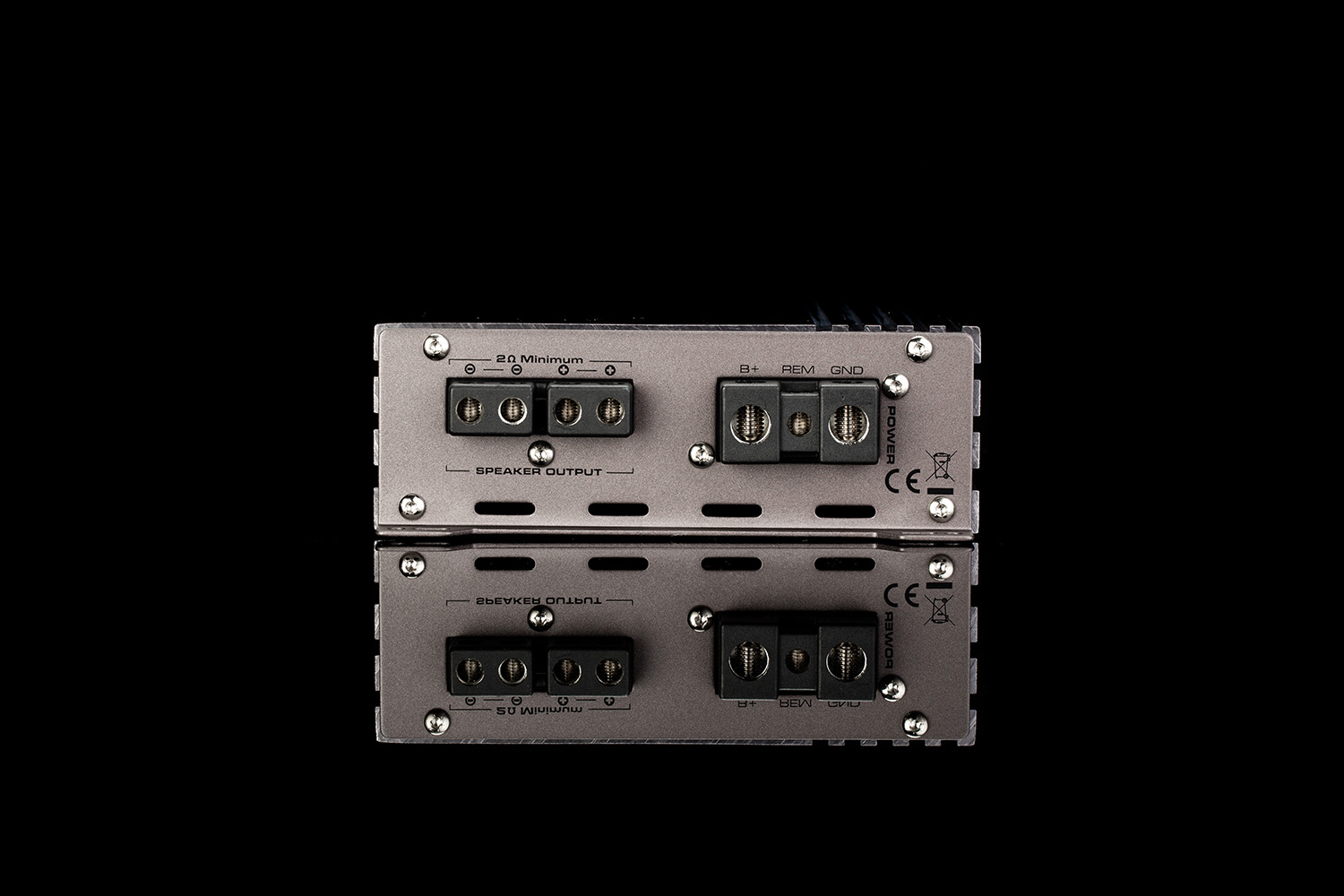

OUTPUT POWER
-
RMS power, 4 Ohm: 360 Watts
-
RMS power, 2 Ohm: 560 Watts
SPECIFICATIONS
-
Thermal protection: 80 °C
-
THD @ 4 Ω / 50% Pmax: 0.5 %
-
Signal/noise: 100 dB
-
Band width +- 3 dB: 20 – 220 Hz
-
Input sensitivity: 0.2 – 10 Vrms
-
Low input impedance: 17 kΩ
-
High input impedance: 50 Ω (with RC-HLT)
-
Damping @ 80 Hz: 60
-
Power consumption, idle: 0.9 A
-
Weight: 1.72 kg
-
Dimensions: Length: 208 mm x Width: 150 mm x Height: 50 mm
