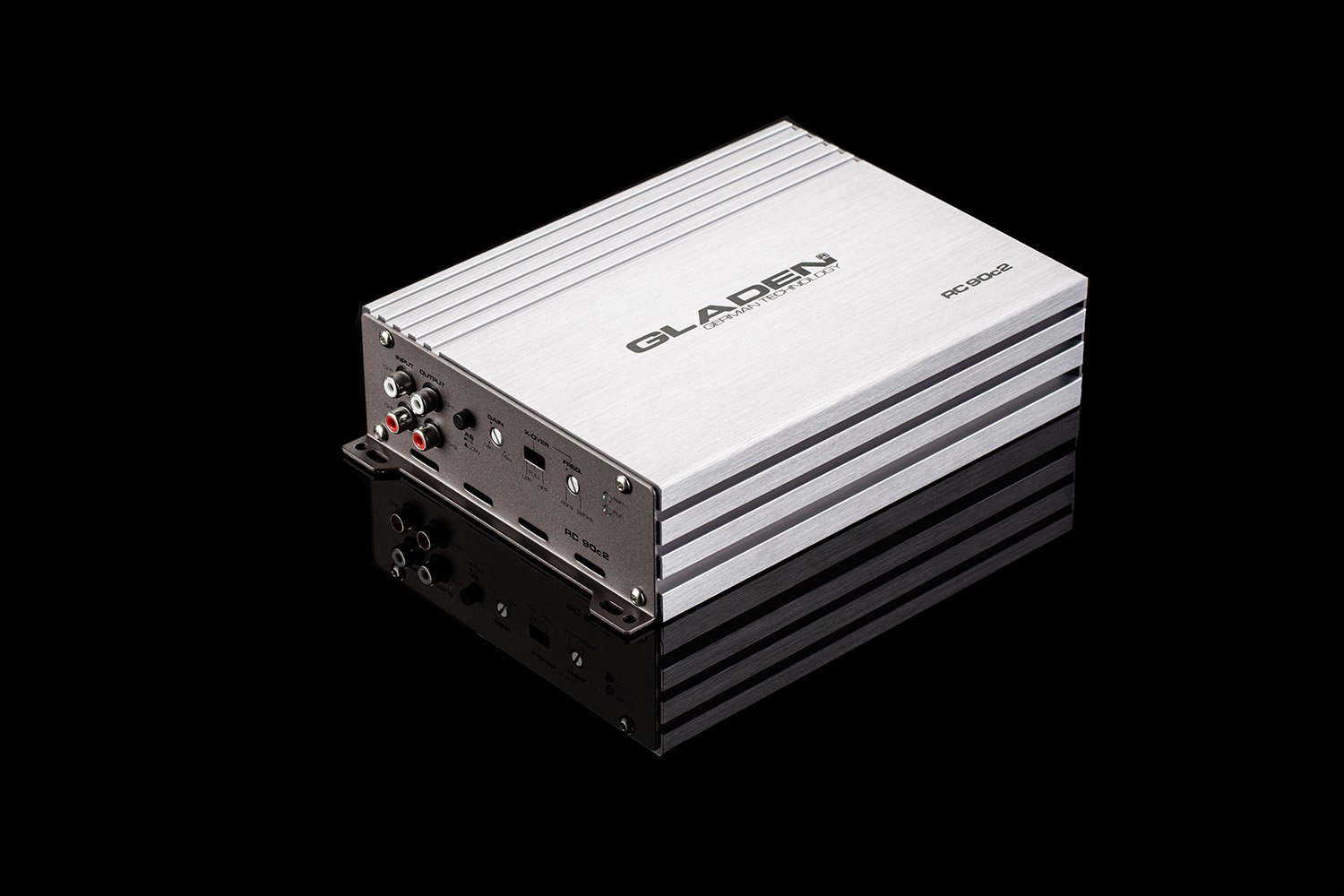

OVERVIEW
- 2-channel amplifier Class A/B
- High-level with auto sense
- Double-sided PCB and
- SMD components

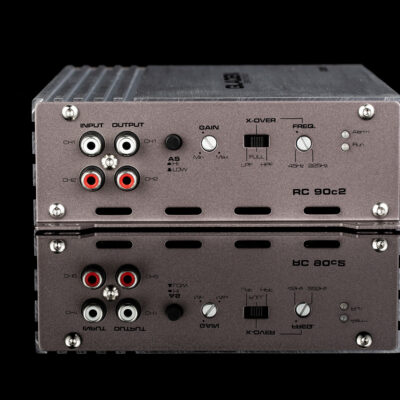

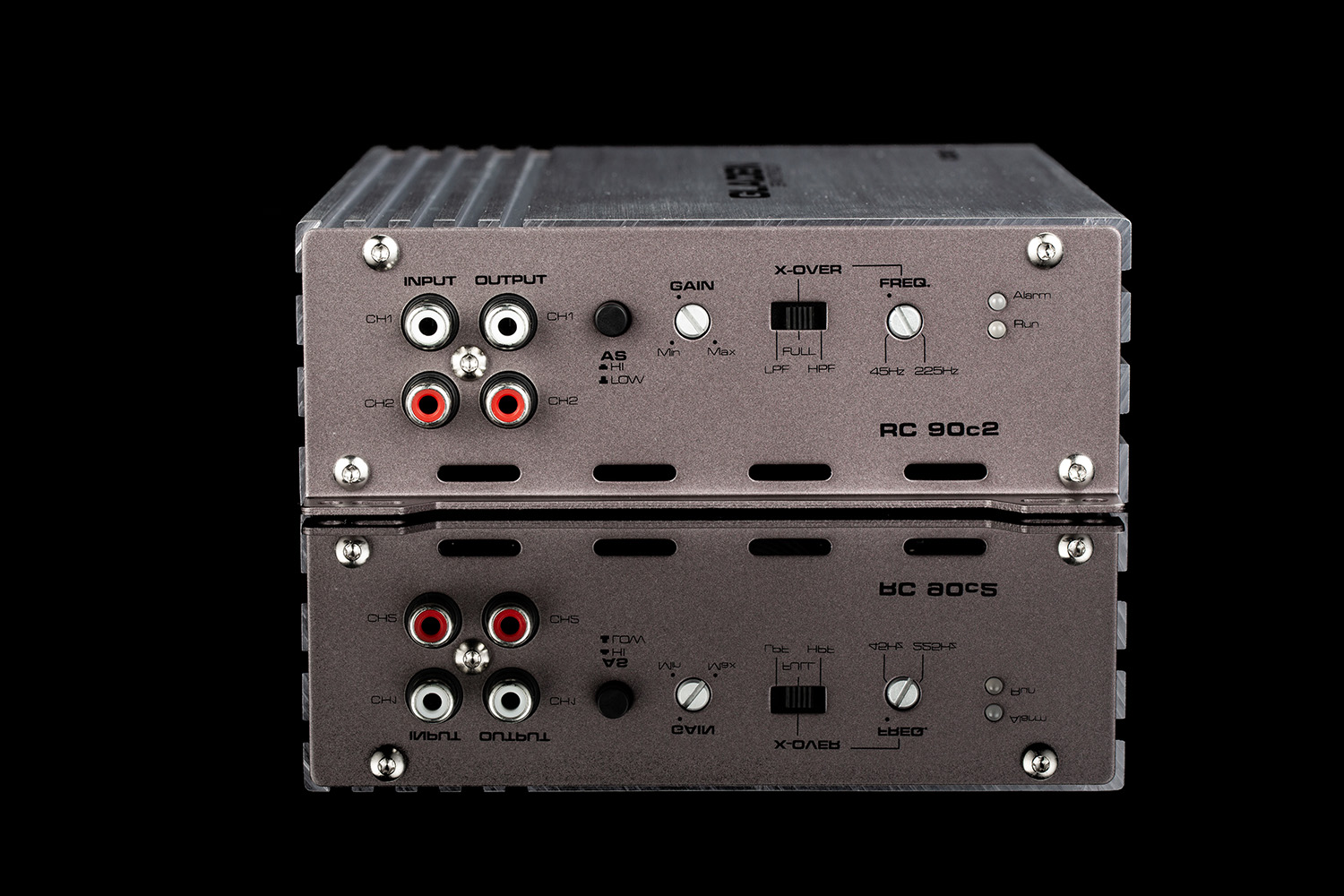

FUNCTIONS
- Input with low or high level signal
- Stable at 2 ohms stereo per channel and 4 ohms bridge operation
- High level with auto-sense function (no remote signal required)
- Variable switchable low-pass filter from 45 to 225 Hz
- Variable switchable high-pass filter from 45 to 225 Hz

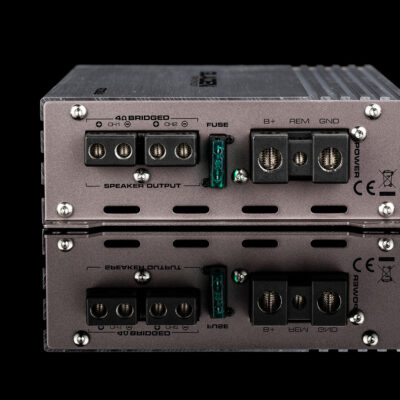

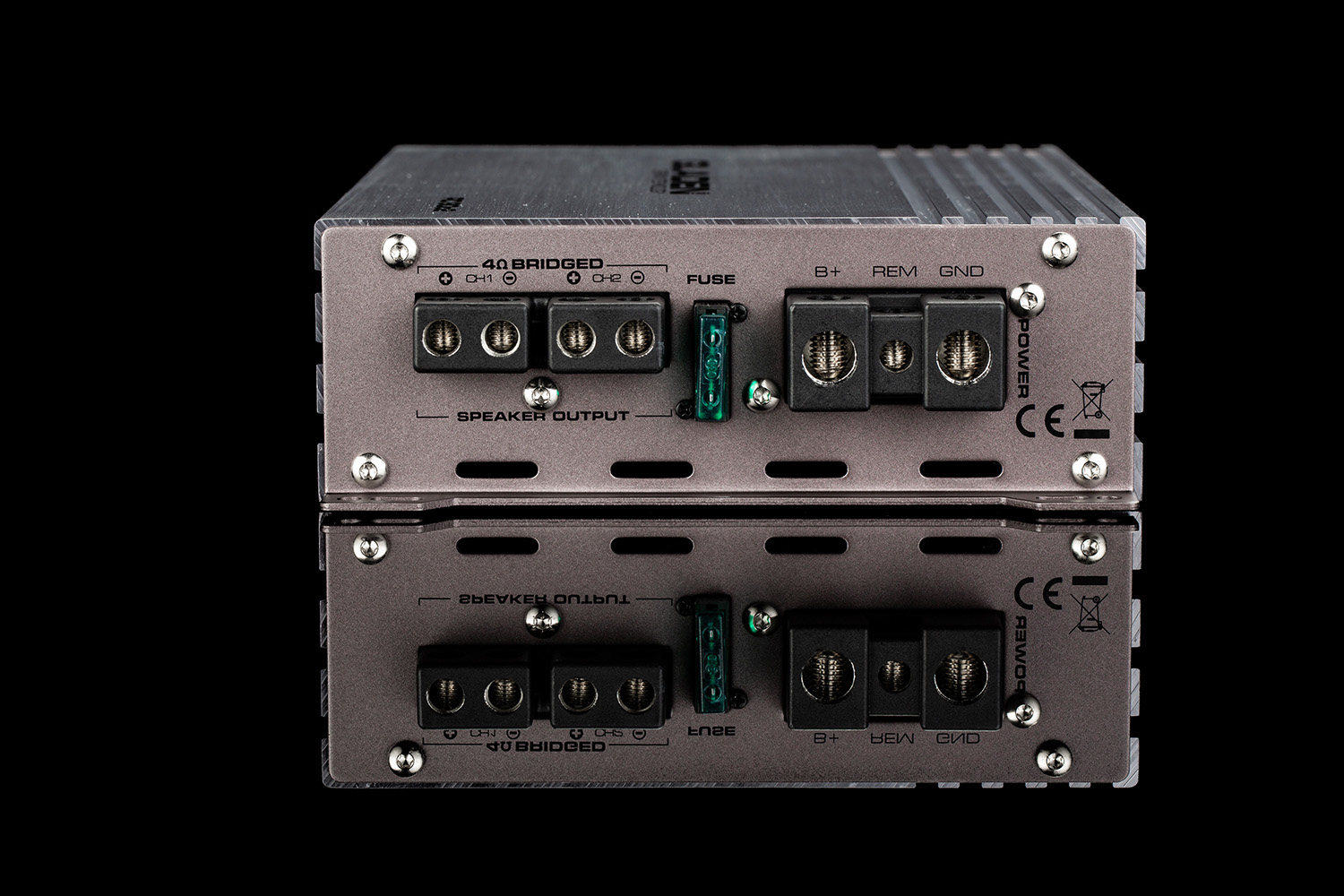

POWER OUTPUT
-
RMS power, 4 Ohm: 2 x 85 Watts
-
RMS power bridged, 4 Ohm: 1 x 260 Watts
SPECIFICATIONS
-
Thermal protection: 80 °C
-
THD @ 4 Ω / 50% Pmax: 0.5 %
-
Signal/noise: 100 dB
-
Band width +- 1 dB: 20 – 20000 Hz
-
Input sensitivity: 0.2 – 10 Vrms
-
Low input impedance: 17 kΩ
-
High input impedance: 50 Ω (with RC-HLT)
-
Damping @ 80 Hz: 50
-
Power consumption, idle: 0.5 A
-
Power cons. 4 Ω stereo: 18 A
-
Power cons. 4 Ω bridged: 32 A
-
Power cons. 2 Ω stereo: 32 A
-
Weight: 1.67 kg
-
Dimensions: Length: 215 mm x Width: 150 mm x Height: 50 mm
