Overview

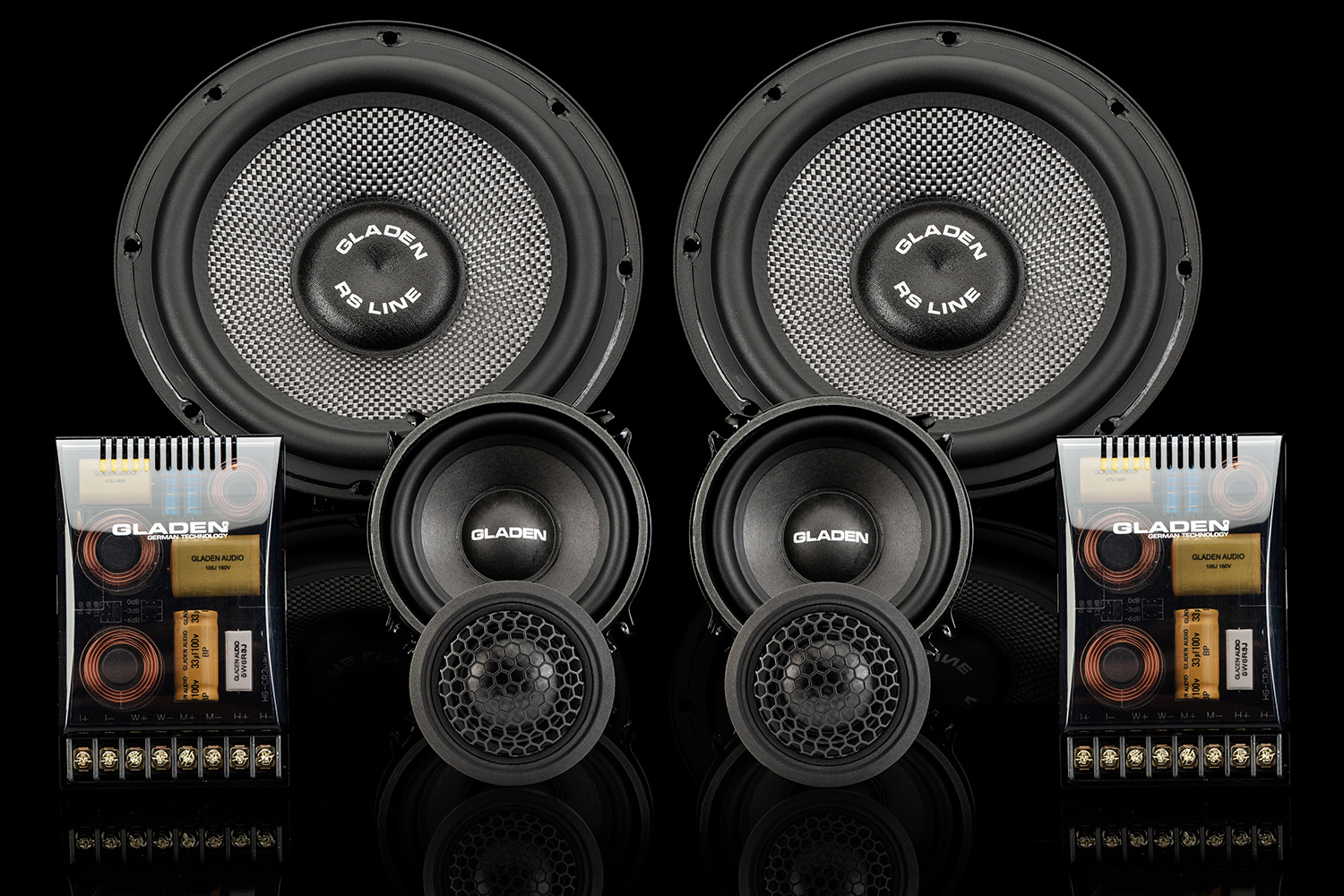

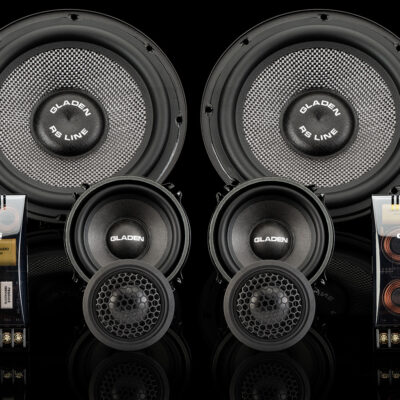

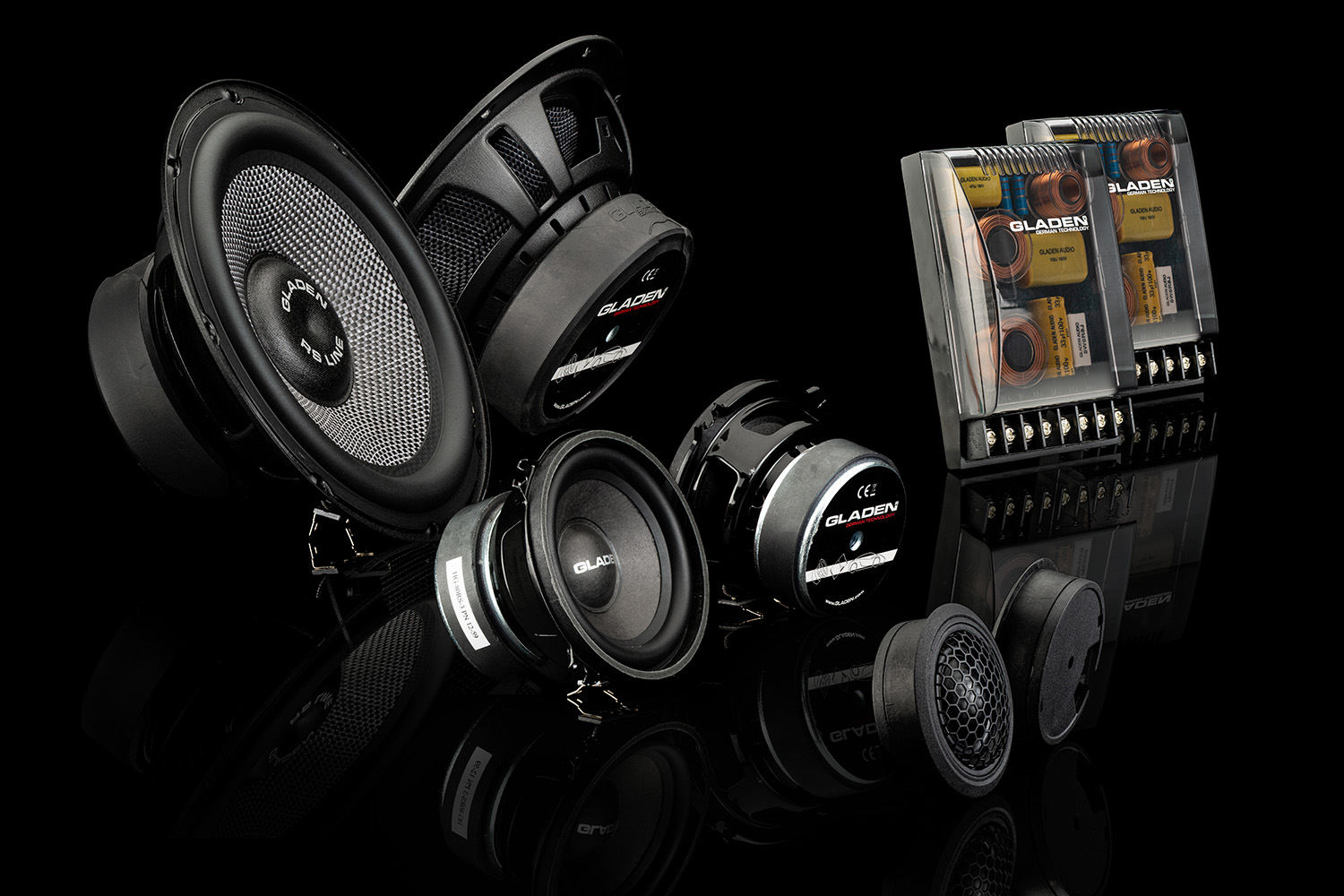

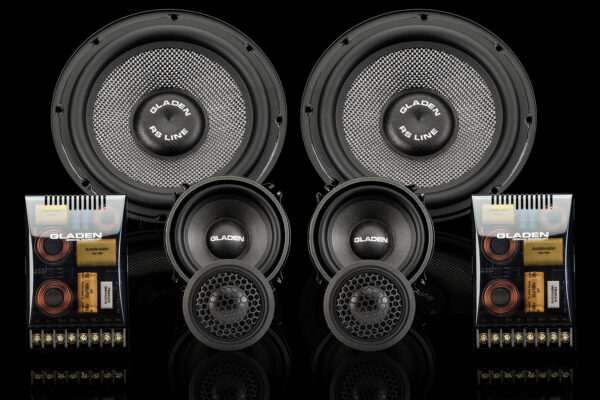

All-round 3-way speaker system consisting of a 165 mm woofer, an 80 mm midrange driver and a 25 mm tweeter dome (always in pairs). The speaker system comes with a passive 3-way crossover.
For the installation of the tweeter in original mounting locations, the plastic housing can be disassembled. For optimal alignment of the tweeter, the optional Gladen PODs can be used.
Specifications

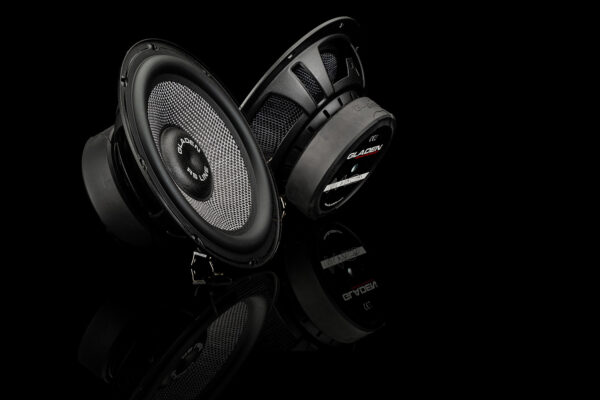

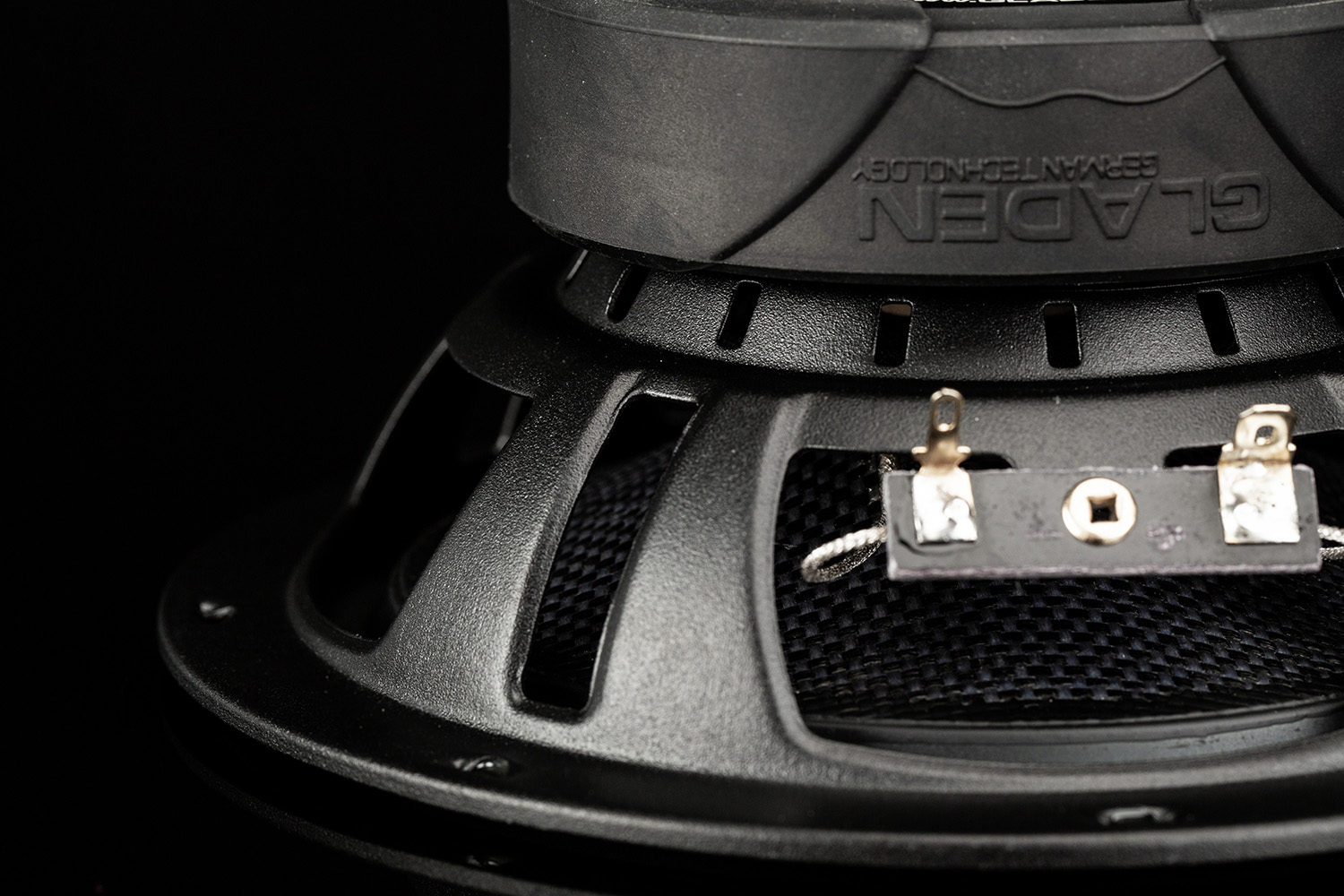

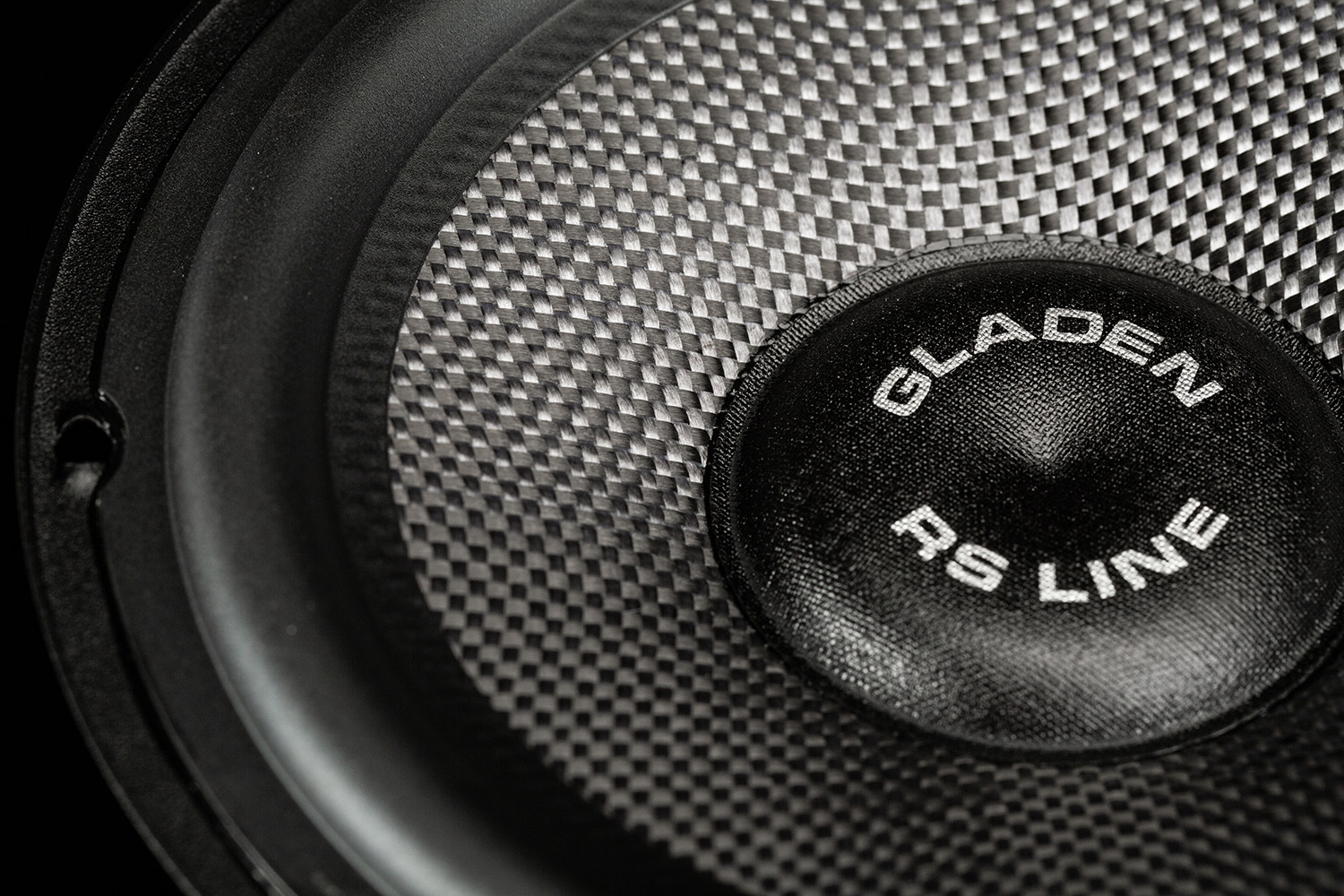

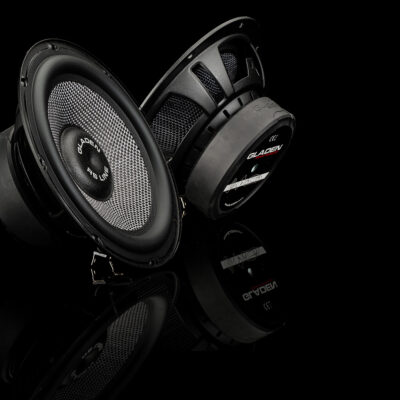

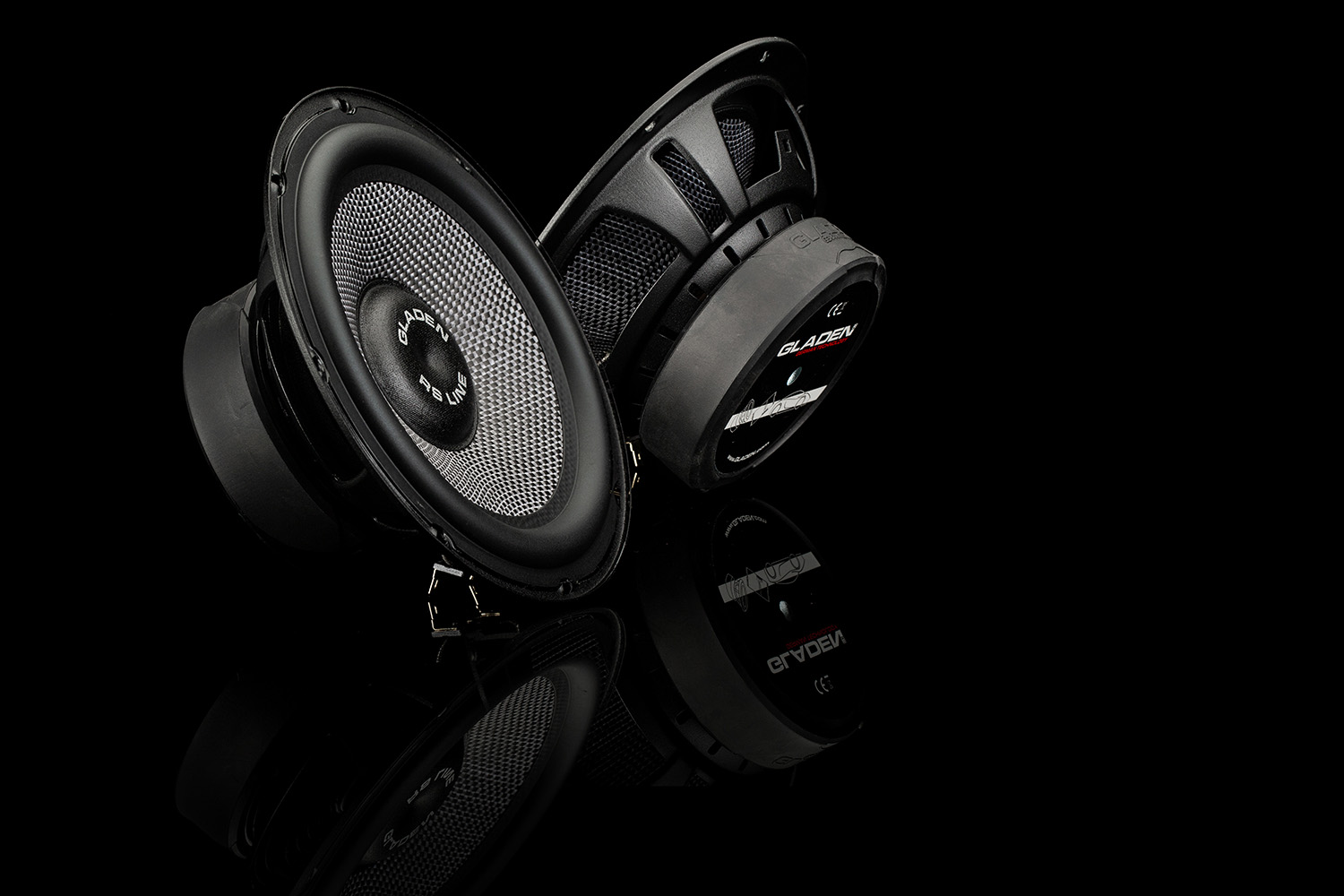

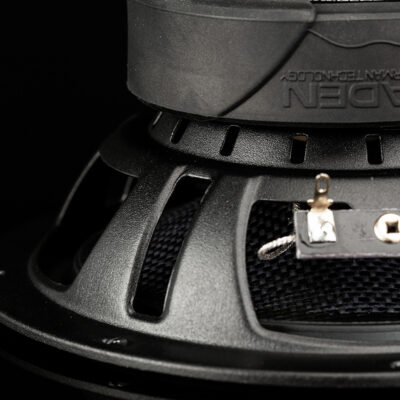

Woofer:
- Size: 165 mm
- Steel plate-basket
- Nomex center spider
- 25 mm voice coil
- Rubber-magnet protection
- 3 Ohm impedance
-
Cone: Fiberglass
-
Spider: Nomex
-
Surround: Rubber
-
Coil former: Aluminum
-
Dust cap: Fiberglass
Midrange:
- Size: 80 mm
- Paper diaphragm
- Ferrite-Magnet
- Polkerm-ventilation
- 3 Ohm impedance
-
Cone: Paper
-
Spider: Nomex
-
Surround: Rubber
-
Coil former: Aluminum
-
Basket: Steel
-
Dust cap: Paper
Tweeter:
- Size: 25 mm (voice coil)
- Silk-fabric diaphragm
- Hexagon grille
- 4 Ohm impedance
- Optional accessories: Gladen PODs
-
Cone: Silk fabric
-
Coil former: Kapton
Crossover:
- Plexiglas housing
- 9 adjustment possibilities
- Gold-plated screw terminals
