OVERVIEW
The RS 200 is a universal 200 mm 2-way speaker system and is characterized by a high efficiency so that it can be operated even with small amplifier power.
The crossover of the RS 200 has a shrink tube crossover each for the tweeter and woofer. This makes the RS system easy and universal to mount. Furthermore, the separate crossovers allow bi-amping operation (e.g. with a 4-channel amplifier).

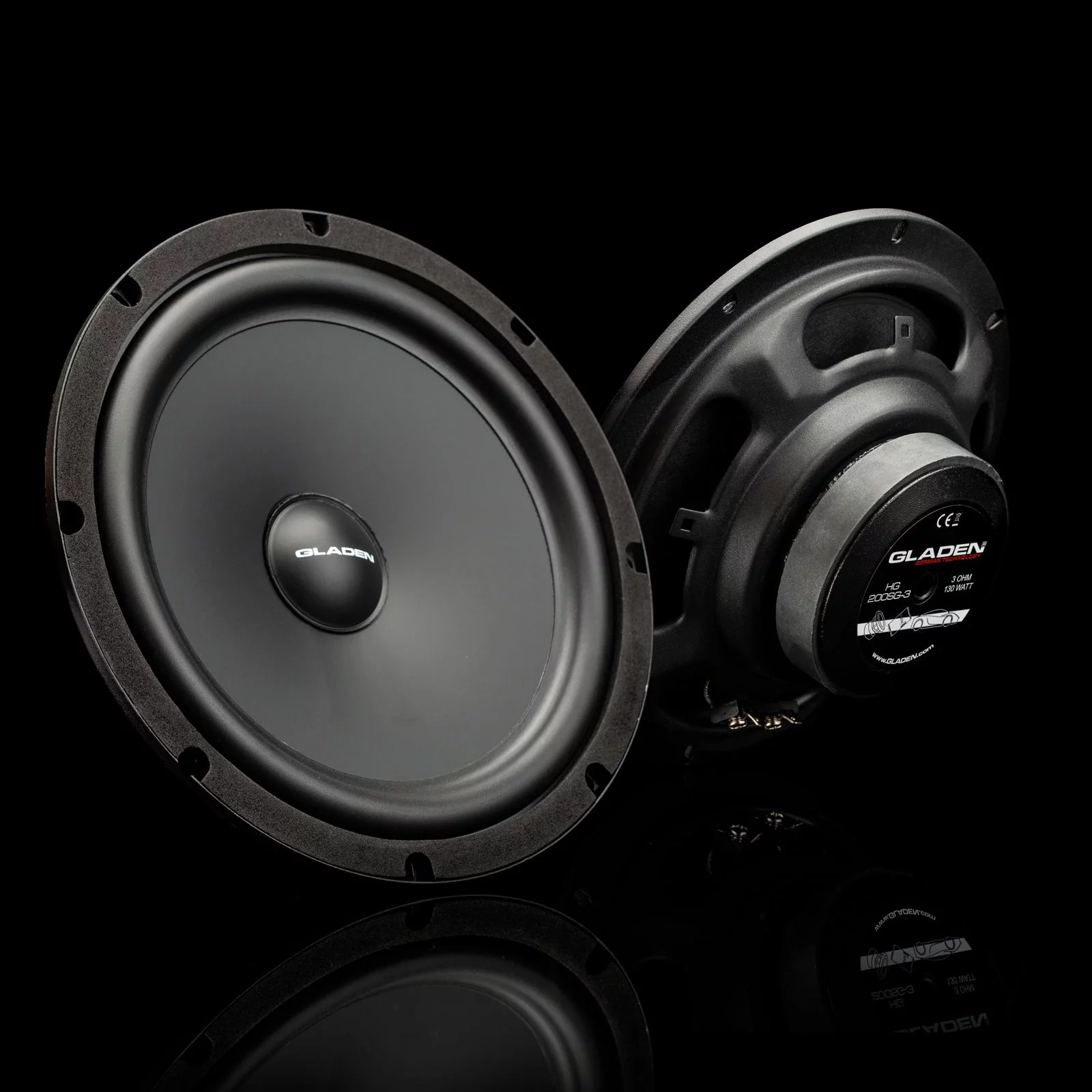

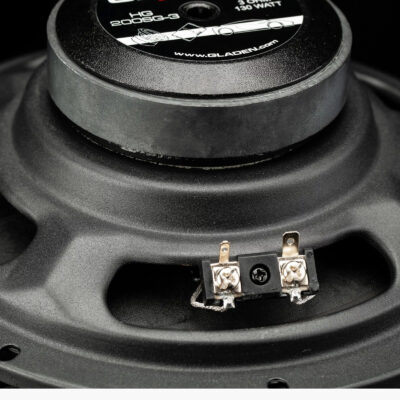

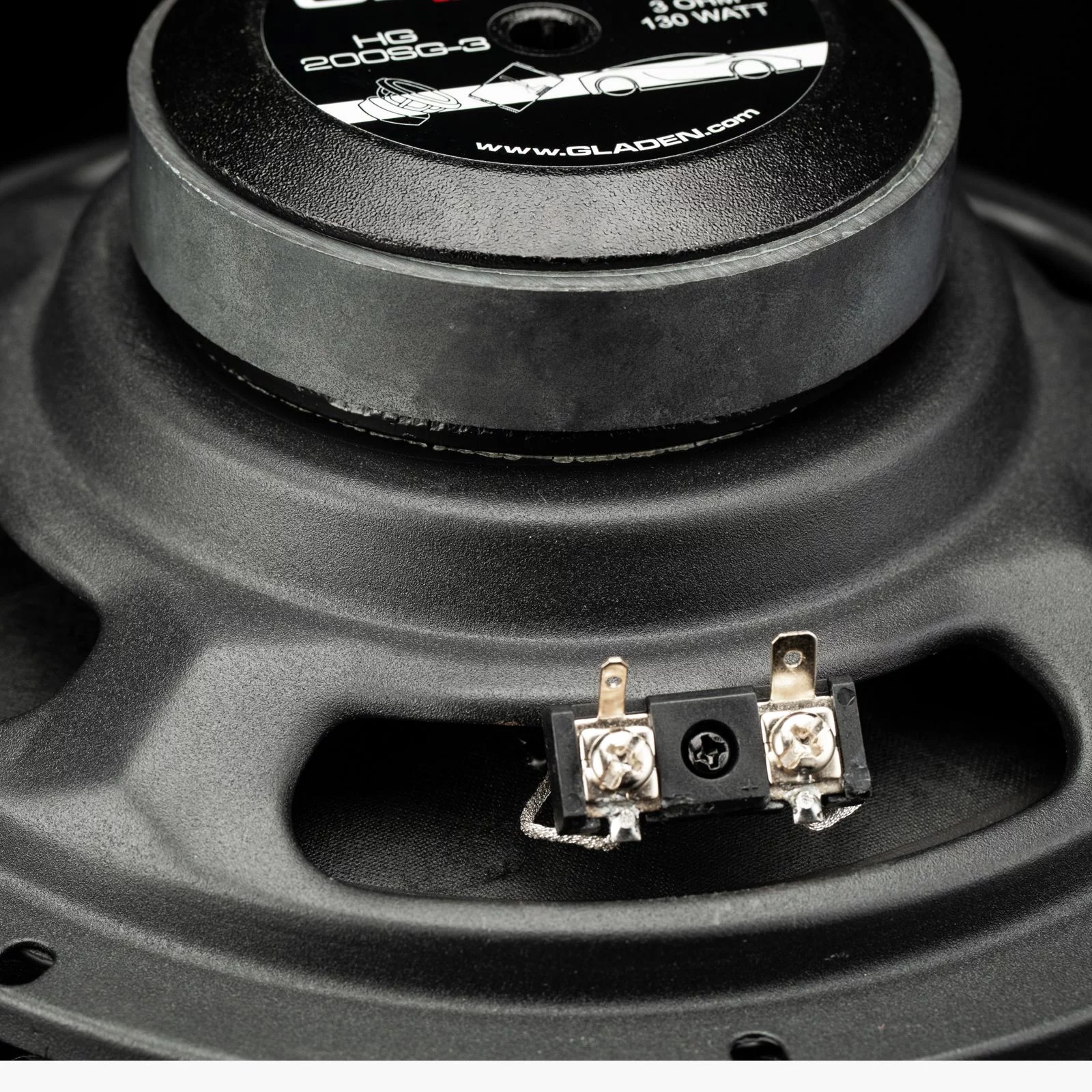

Woofer:
- Size: 200 mm
- Coated paper cone
- Steel basket
- Nomex center spider
- 25 mm voice coil
- 3 Ohm impedance
-
Surround: Rubber
-
Coil former: Aluminum
-
Dust cap: Polypropylene

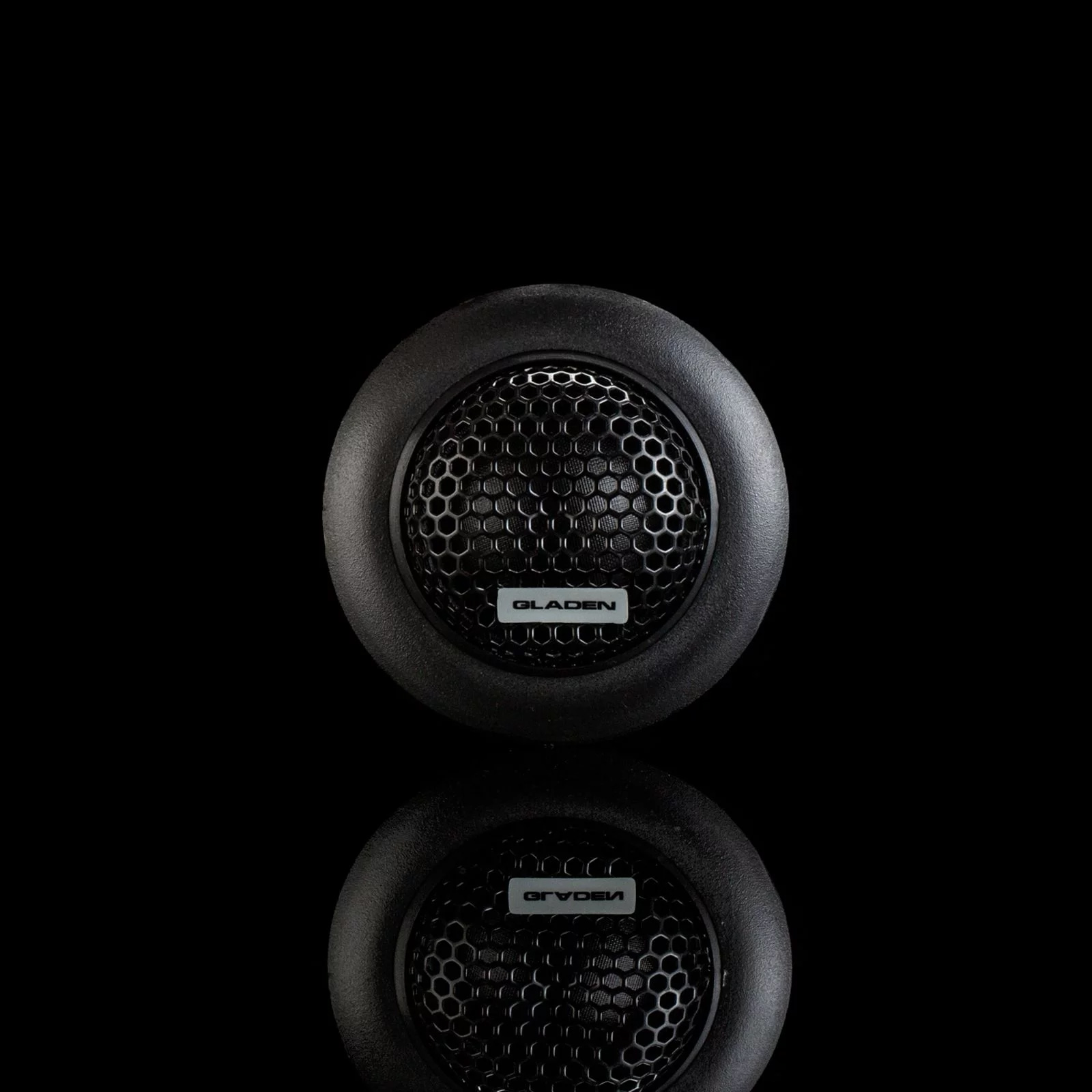

Tweeter:
- Size: 25 mm (voice coil)
- Silk fabric diaphragm
- 4 Ohm impedance
- Accessories: installation housing, installation flange
-
Coil former: Kapton

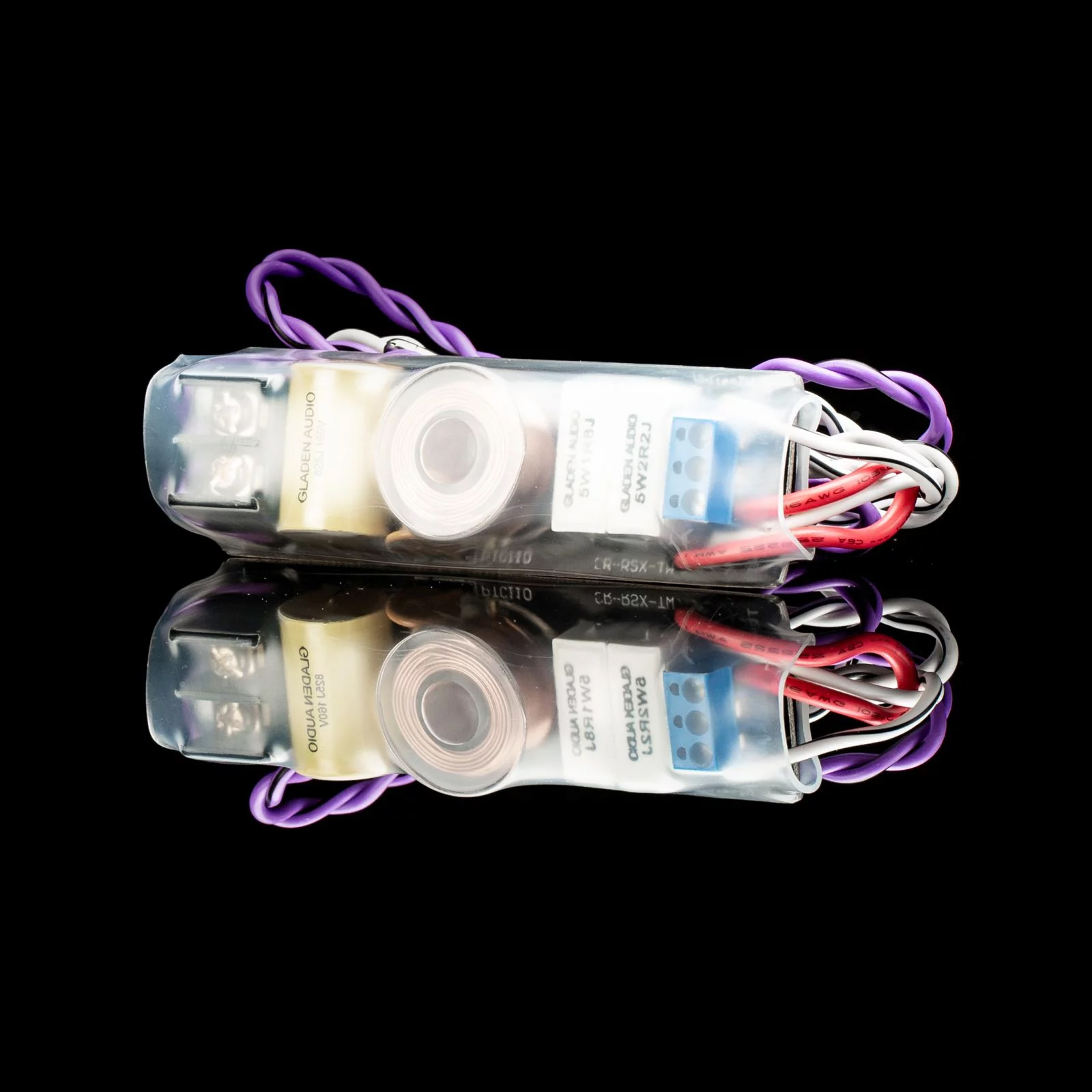

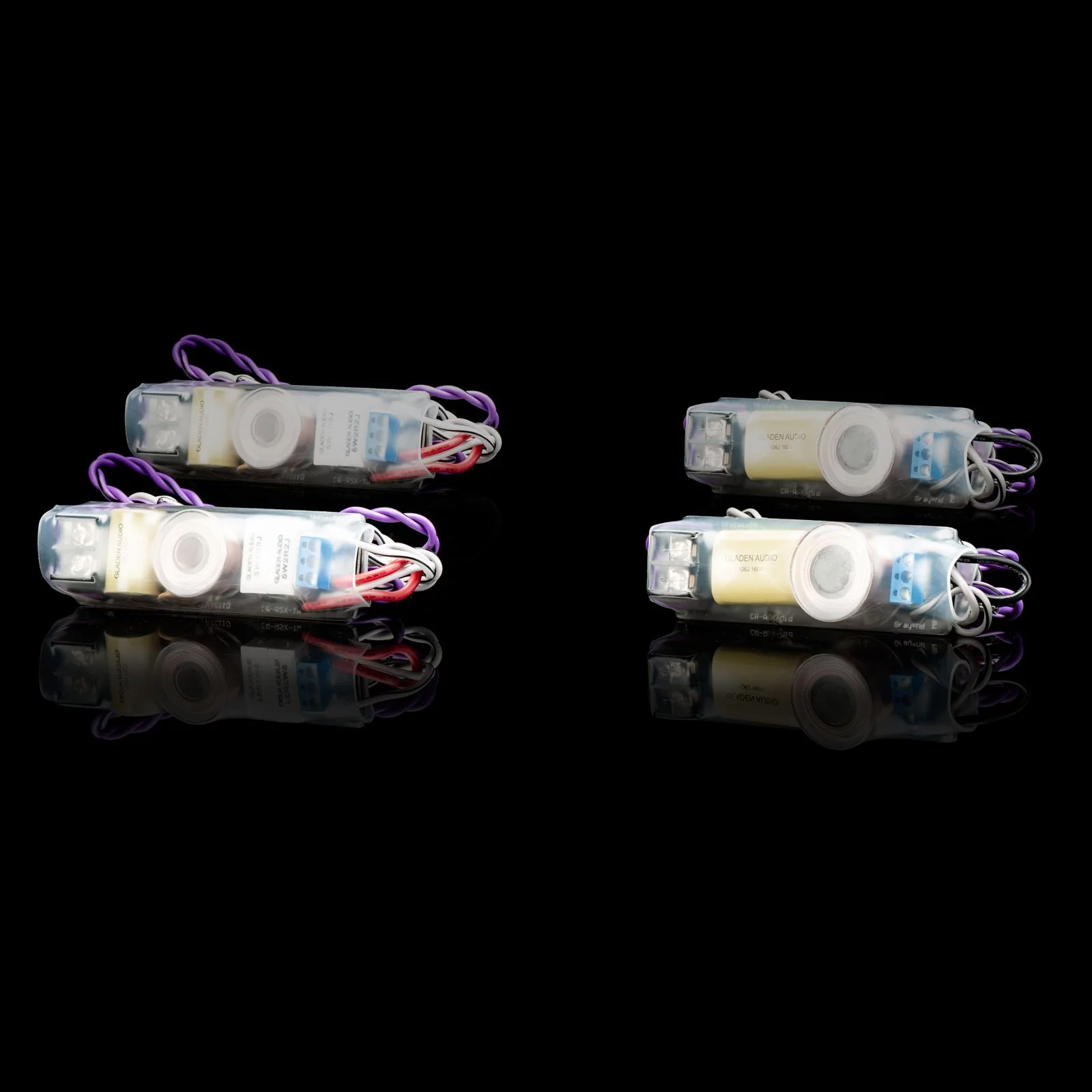

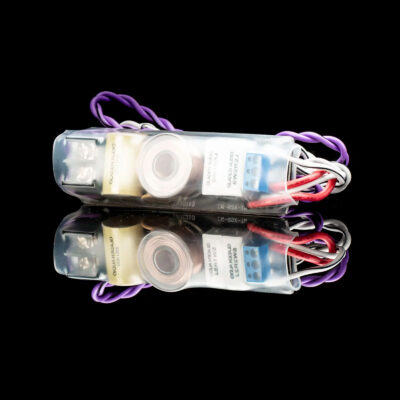

Crossover
- Tweeter and woofer separated
- Heat shrink tube
- 9 adjustment possibilities
- Gold plated screw terminals
- Bi amping capable
- Compact design
