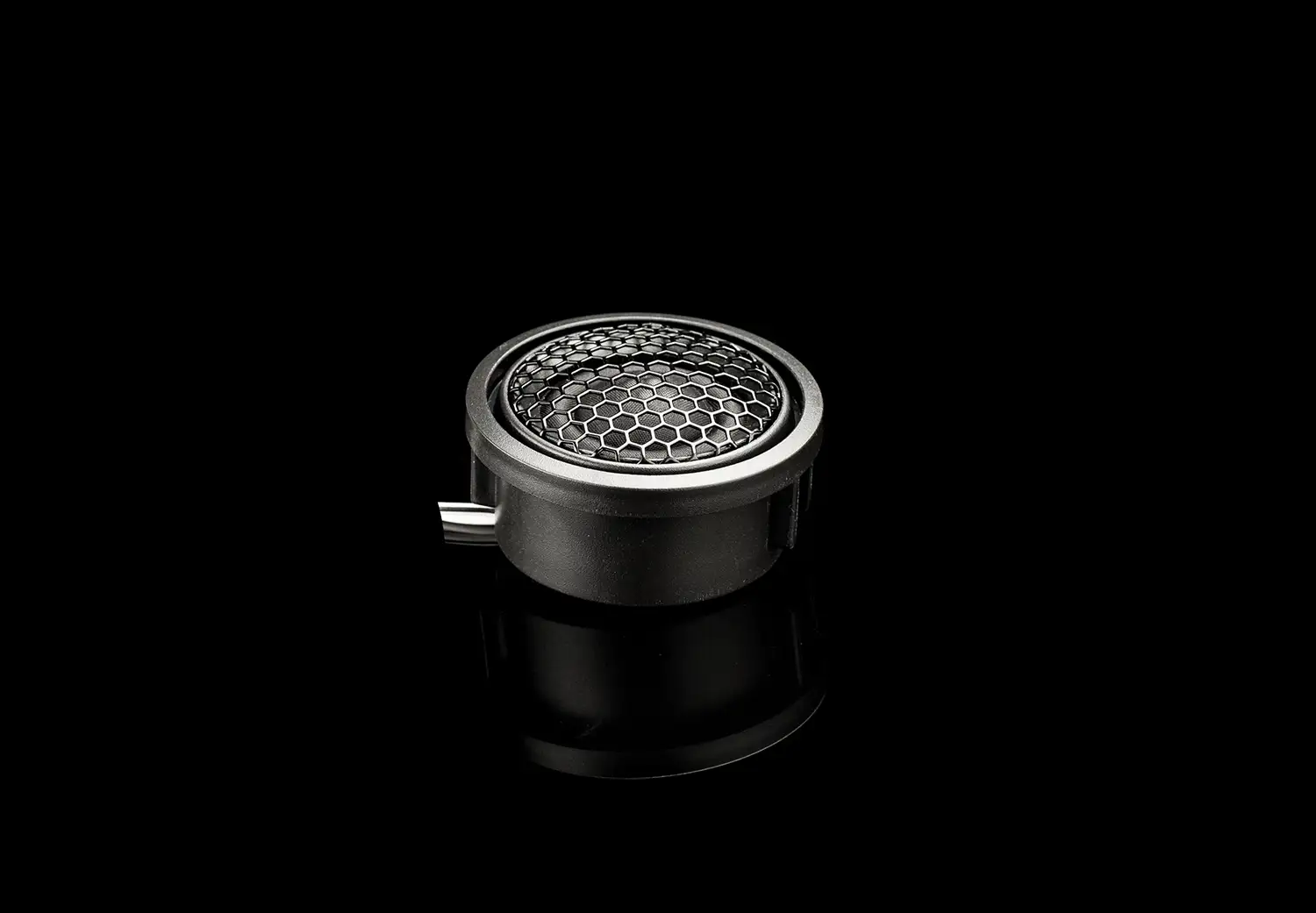

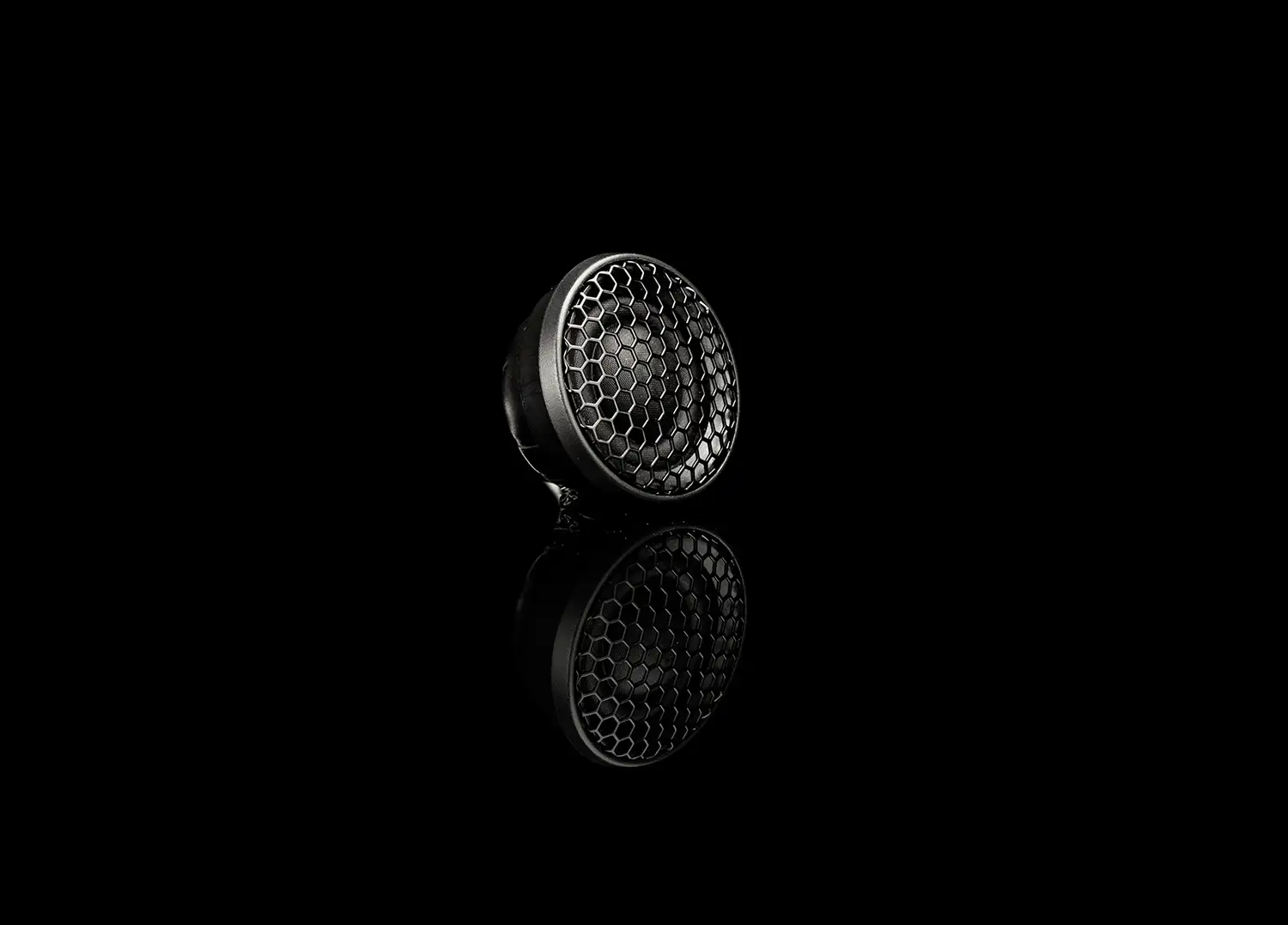

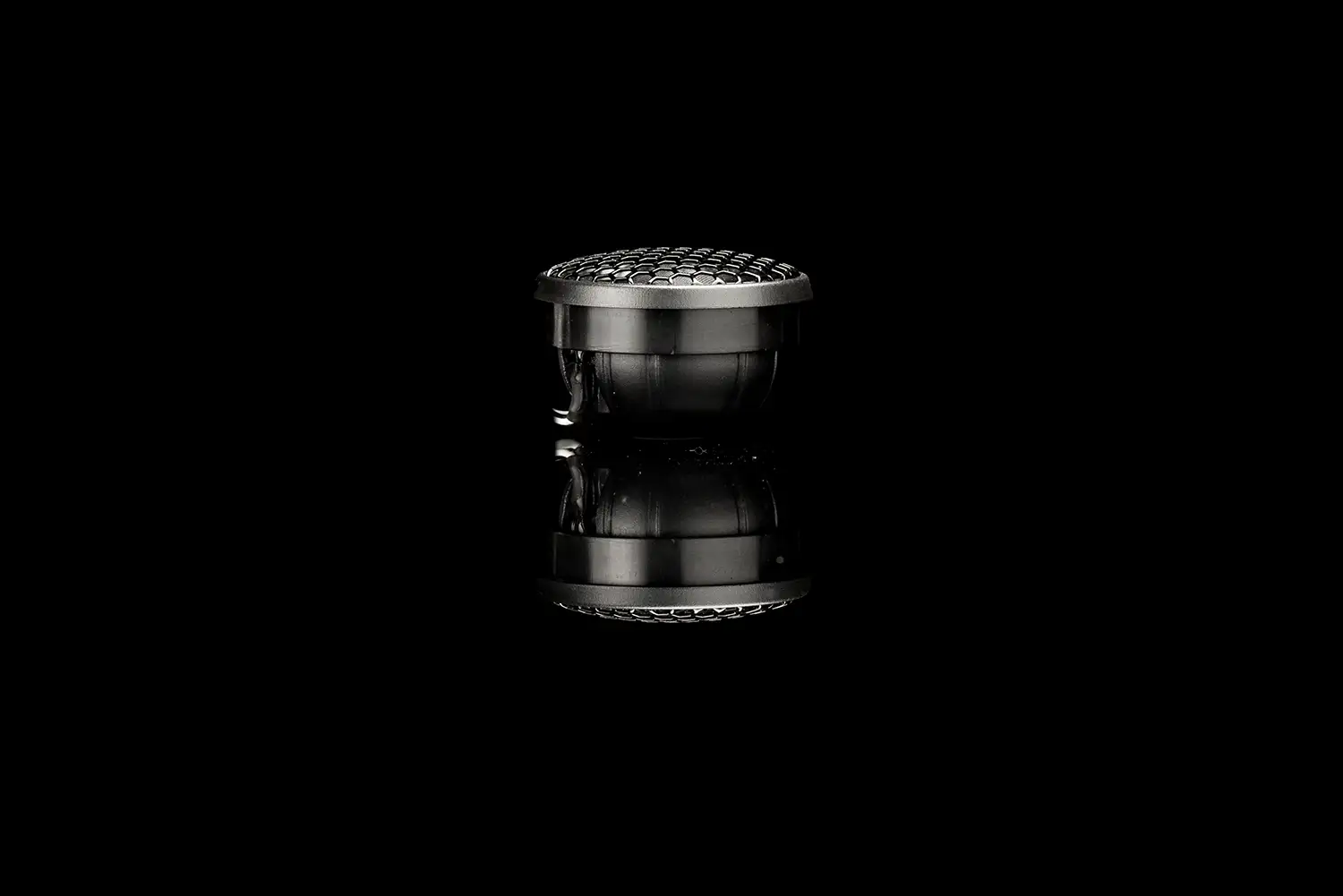

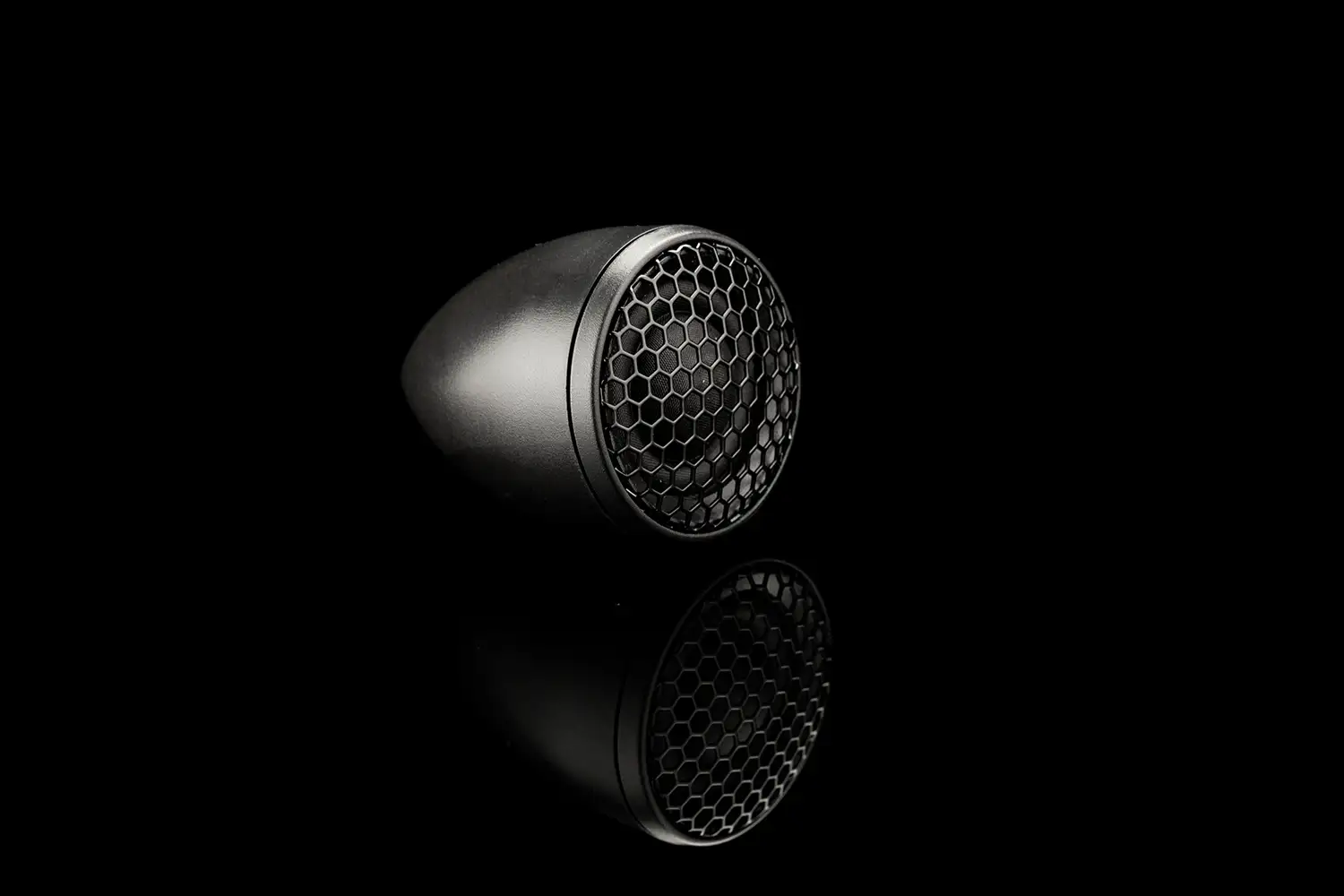

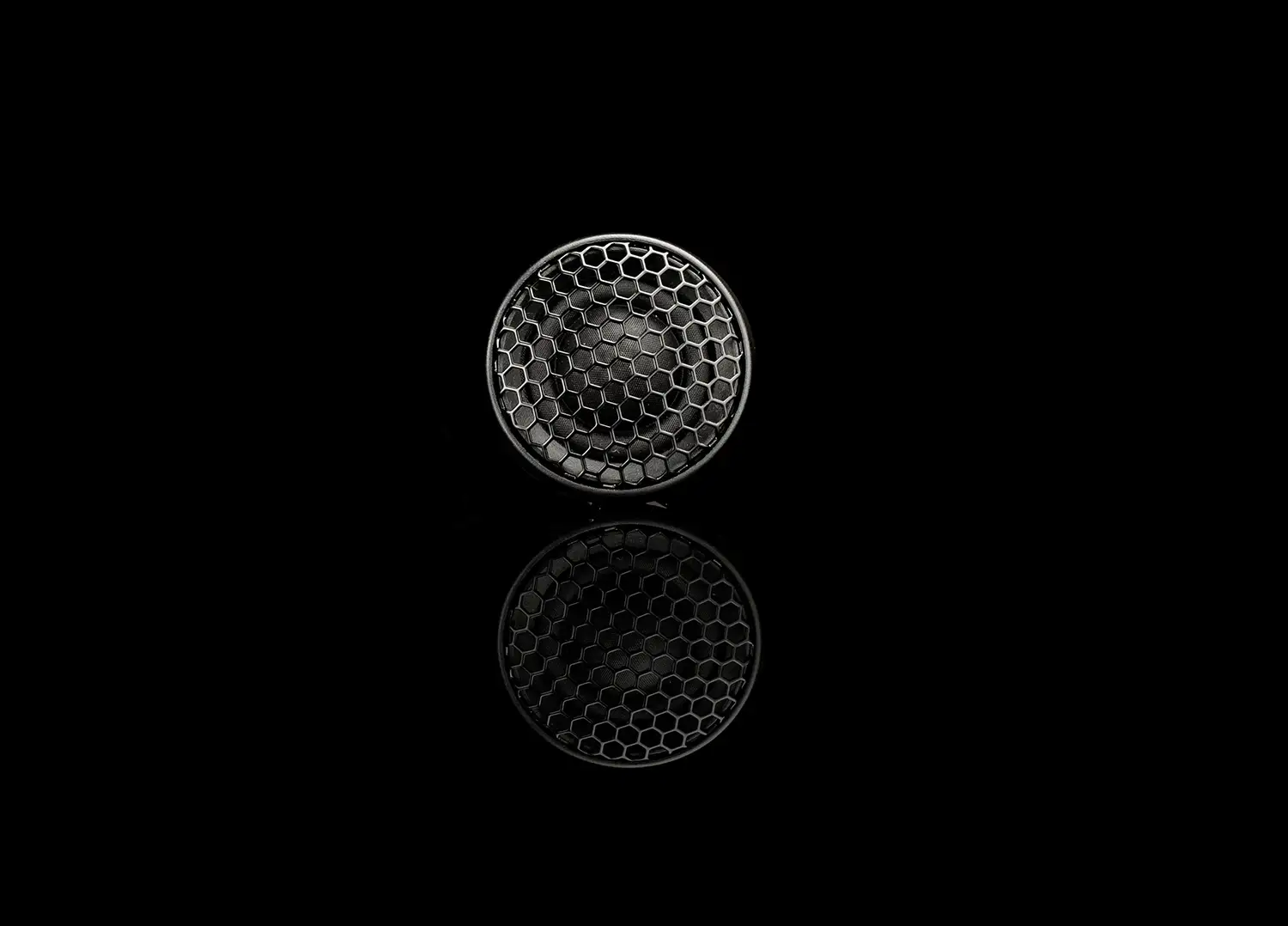

ST 22 Silver

ST 22 Silver

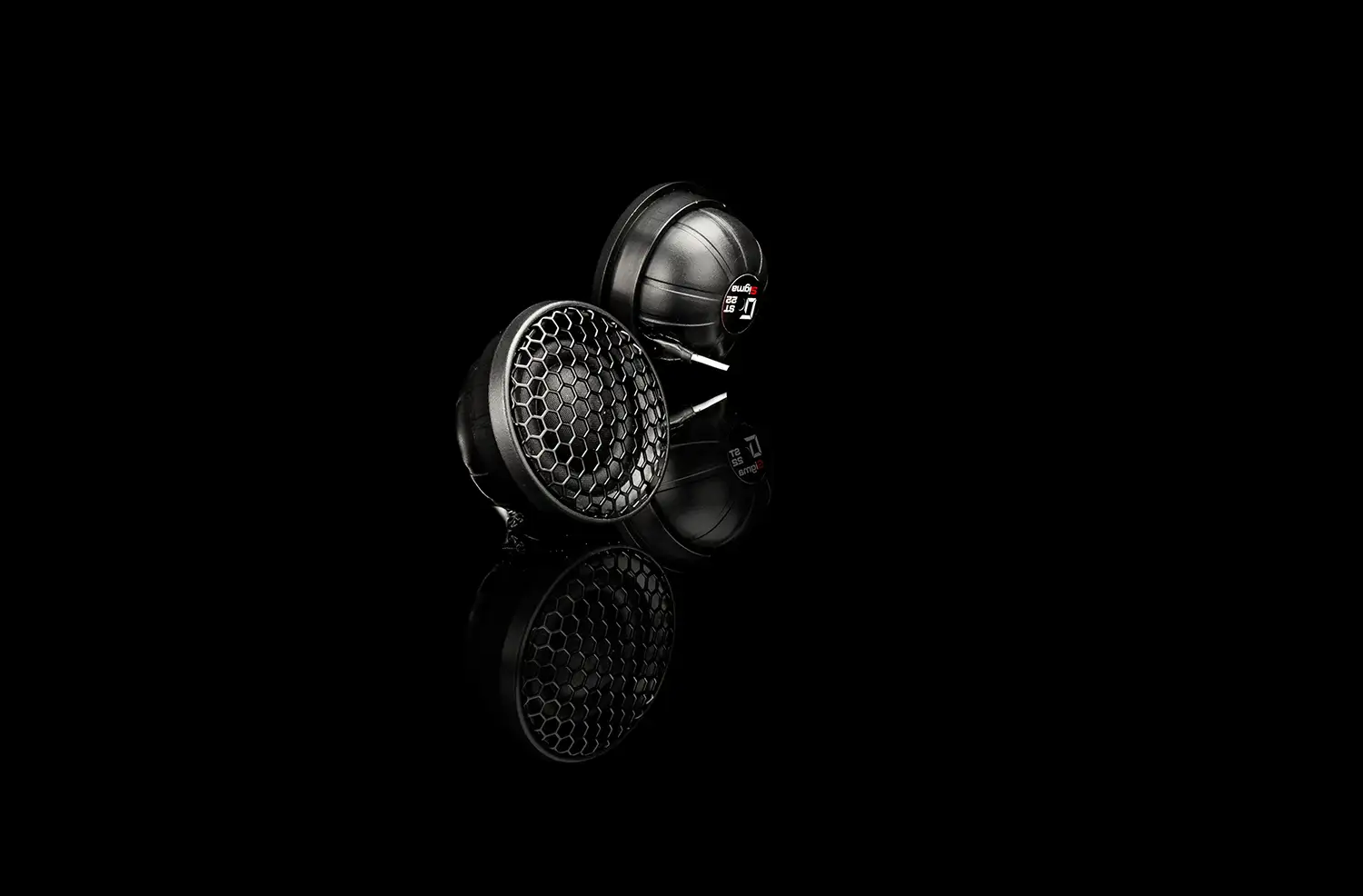

22mm High-Performance Tweeter (pair)

  • 22 mm Tweeter
  • 4 ohms Impedance

Download:

Description

Overview

The GLADEN SIGMA ST 22 is a high-quality 22 mm silk dome tweeter developed for demanding car audio enthusiasts. As part of the modular GLADEN Generic system, it offers maximum installation flexibility and impresses with its detailed sound reproduction and dynamic response. Also available as part of Sigma 165.2 Kit.

Features

  • 22 mm silk dome for accurate, detailed highs

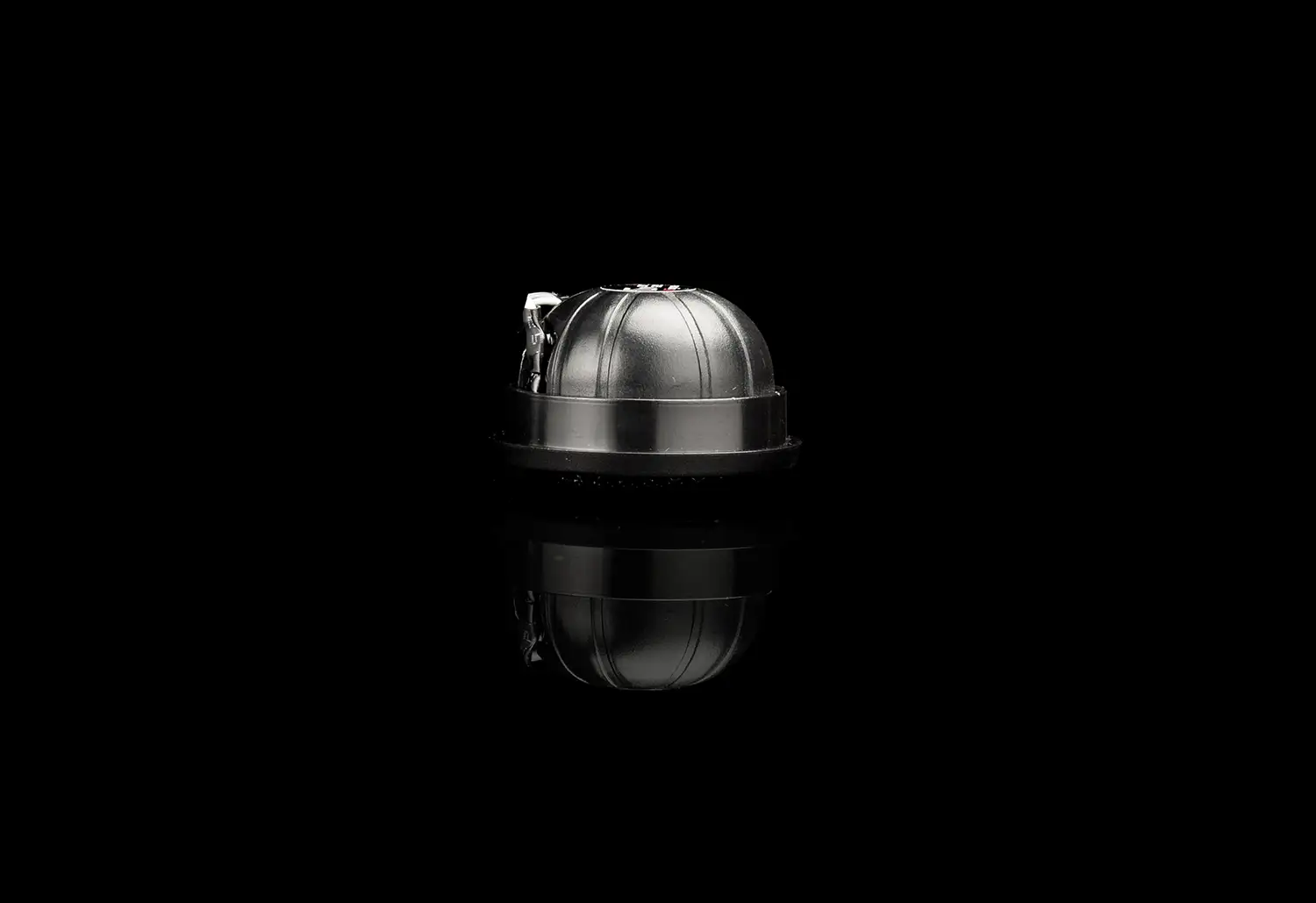

  • Integrated rear chamber for lower crossover frequencies

  • Compact housing with OEM-compatible mounting options

  • Part of the GLADEN Generic concept for flexible installation

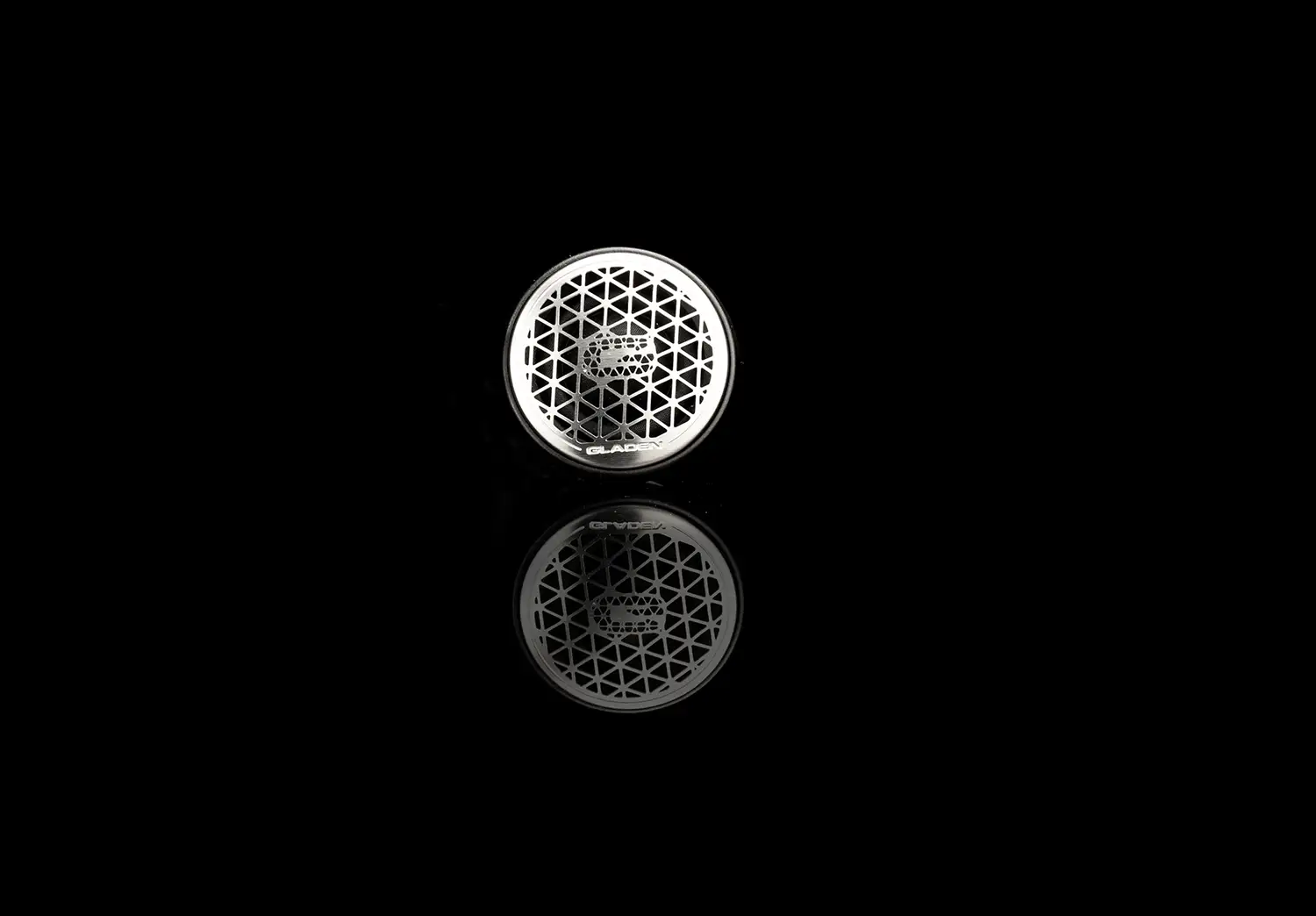

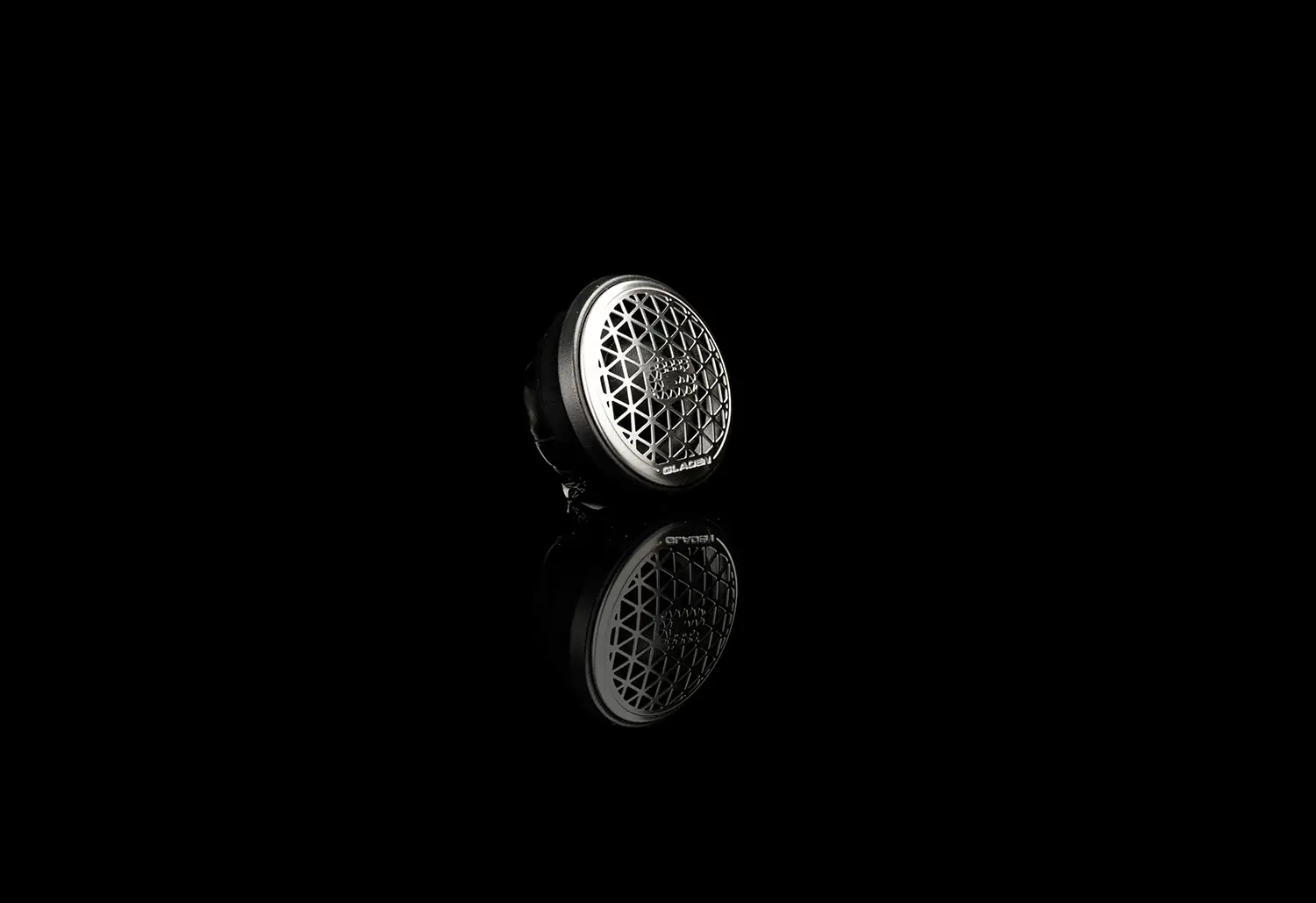

  • Includes comprehensive installation accessories (mounting rings, grilles, adapters)

Application

Whether installed in A-pillars, mirror triangle mounts, or integrated into OEM locations – the ST 22 can be perfectly adapted to almost any vehicle using included accessories or 3D data files.

Specifications:

  • DC resistance (Rdc): 3,63 Ω
  • Impedance (Ohm): 4 Ω
  • Resonance frequency (fs): 790 Hz
  • Voice coil diameter: 22 mm
  • SPL 2,83V/1m: 91 dB
  • Dome/Calotte: Silk
  • Cutoff frequency: > 2800 Hz 24 dB/Oct
