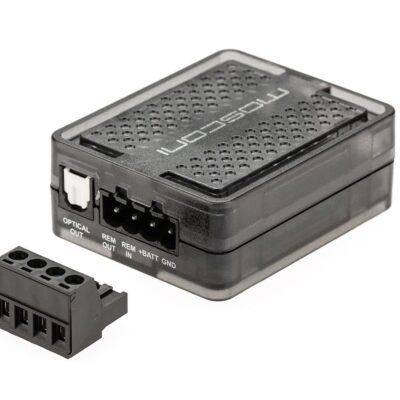

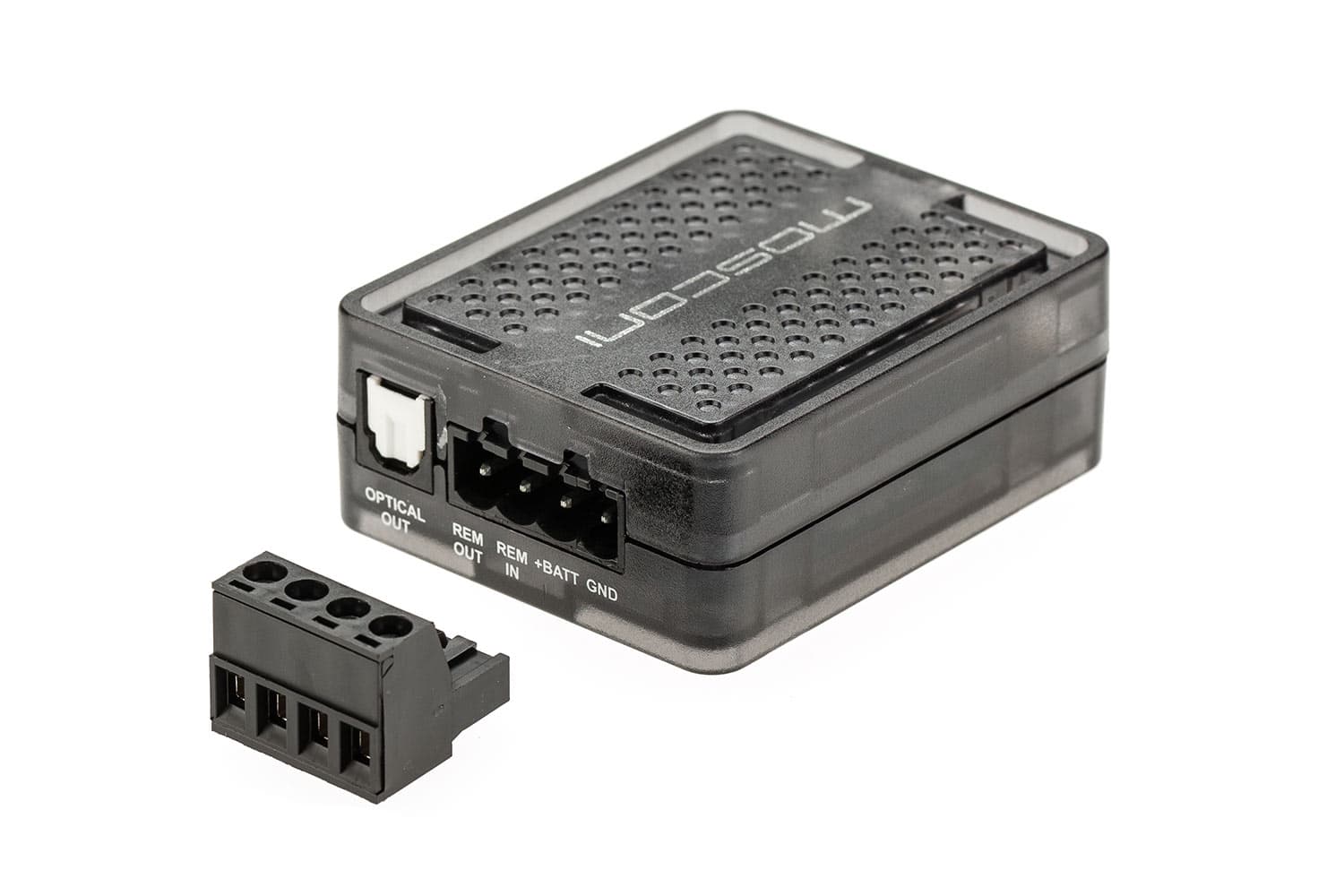

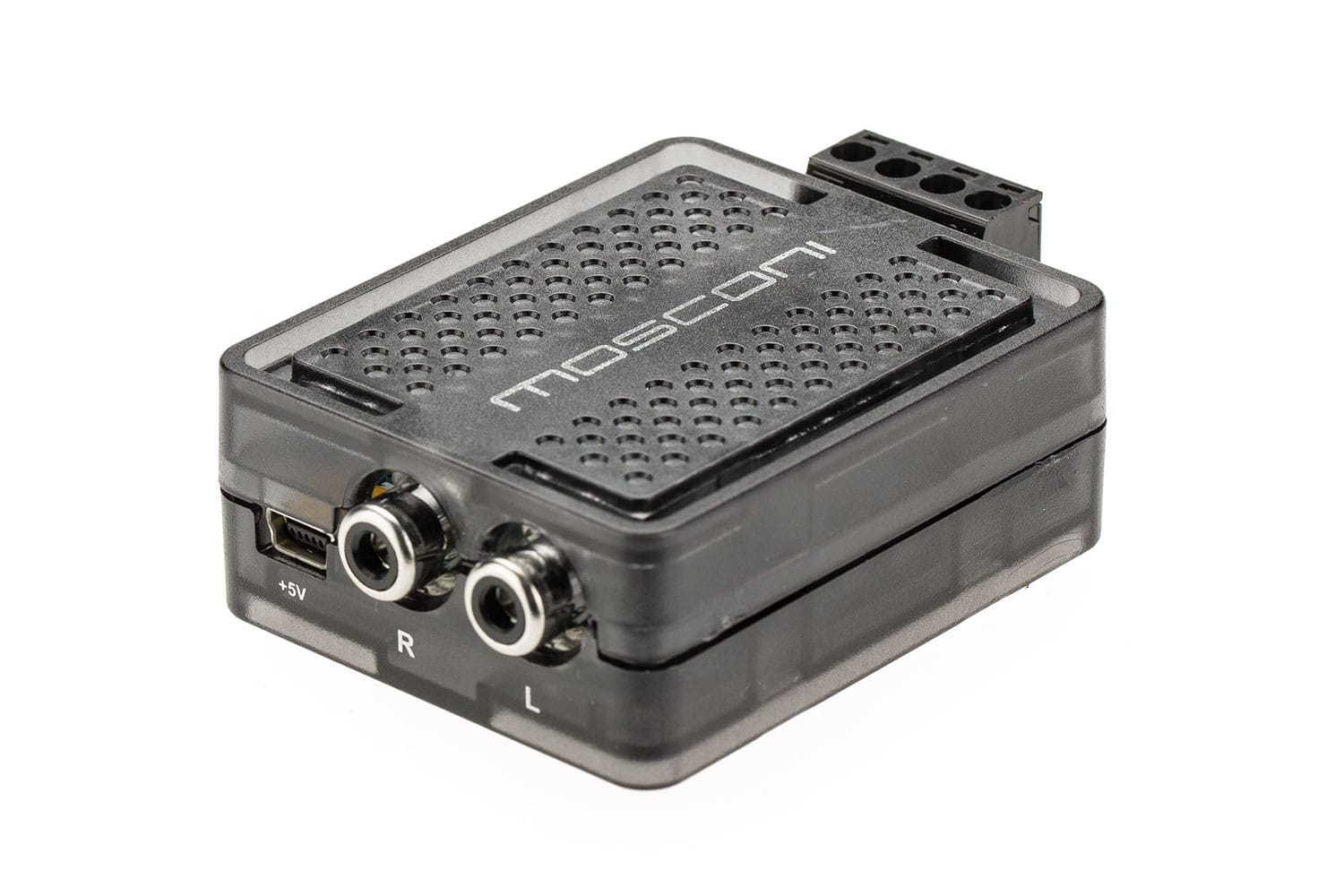

AMAS LD4C

AMAS LD4C

Universal High Resolution BT Streaming for L-D4C

  • Universal Bluetooth receiver.
  • Supports streaming high-resolution audio over Bluetooth connections at 24 bit / 96 kHz.
  • Latest generation Qualcom Bluetooth chip.
  • Fast connection and long range through Bluetooth standard 5.0.

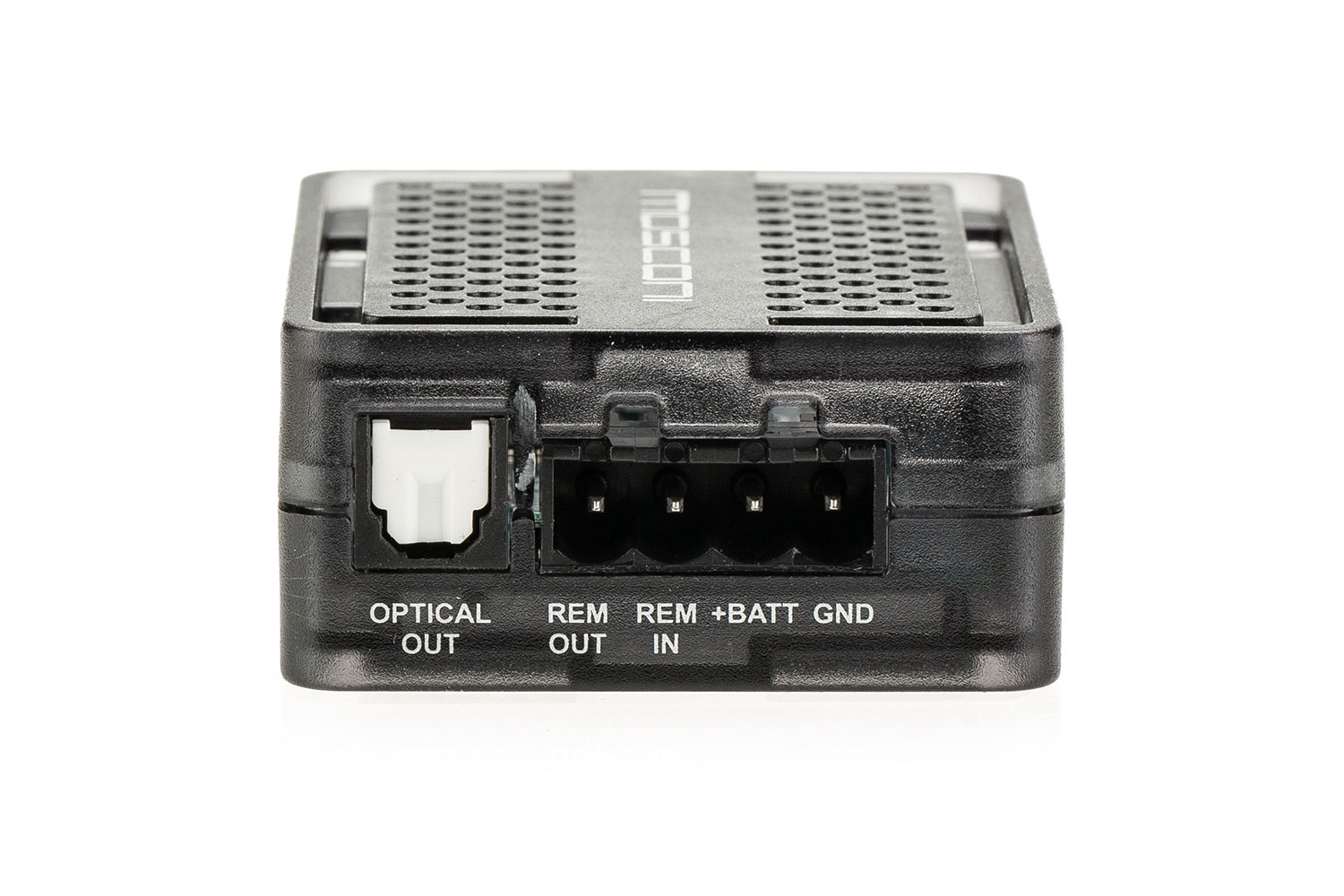

  • SP Dif (optical/Toslink) and RCA (2Vrms) output.
  • Operating voltage 12V (vehicle power, 7V 16V) or 5V (Mini USB).
  • Remote output for vehicle powered devices.

Download:

Description

DETAILS

  • BT v5.0 specification
  • Supports A2DP 1.3
  • High resolution audio up to 24-bit, 96 kHz
  • S/P-DIF digital output, Toslink

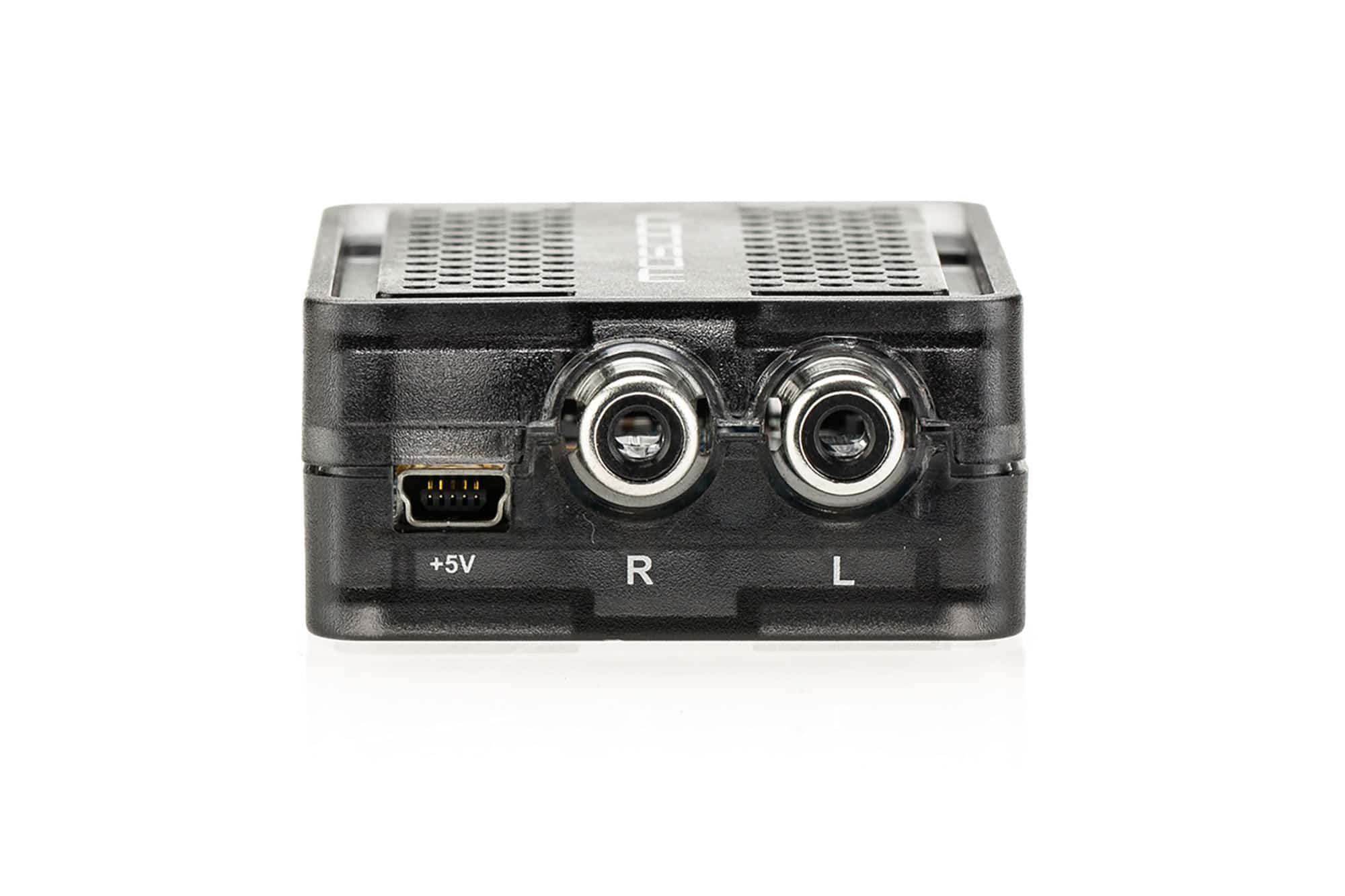

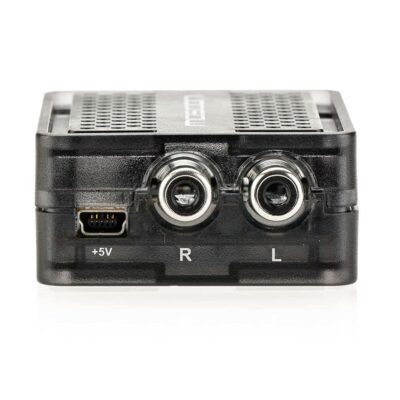

  • Analog output RCA 2 Vrms
  • Digital and analog output can be used simultaneously
  • High-performance, 112 dB SNR, audio stereo DAC
  • Intelligent muting system, 120-dB mute SNR
  • Start & stop optimized up to 8 V
  • Low power consumption
  • Separate remote input and output
  • USB connector for use outside a car (5 V)
  • Compatible with all Mosconi DSP products
