Atomo 1

Atomo 1

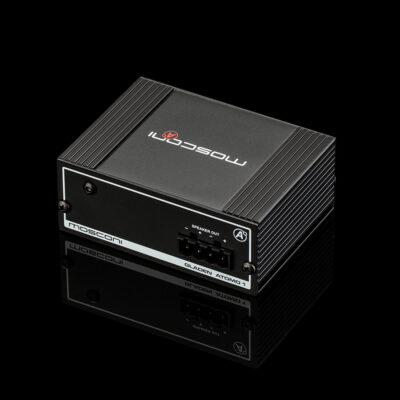

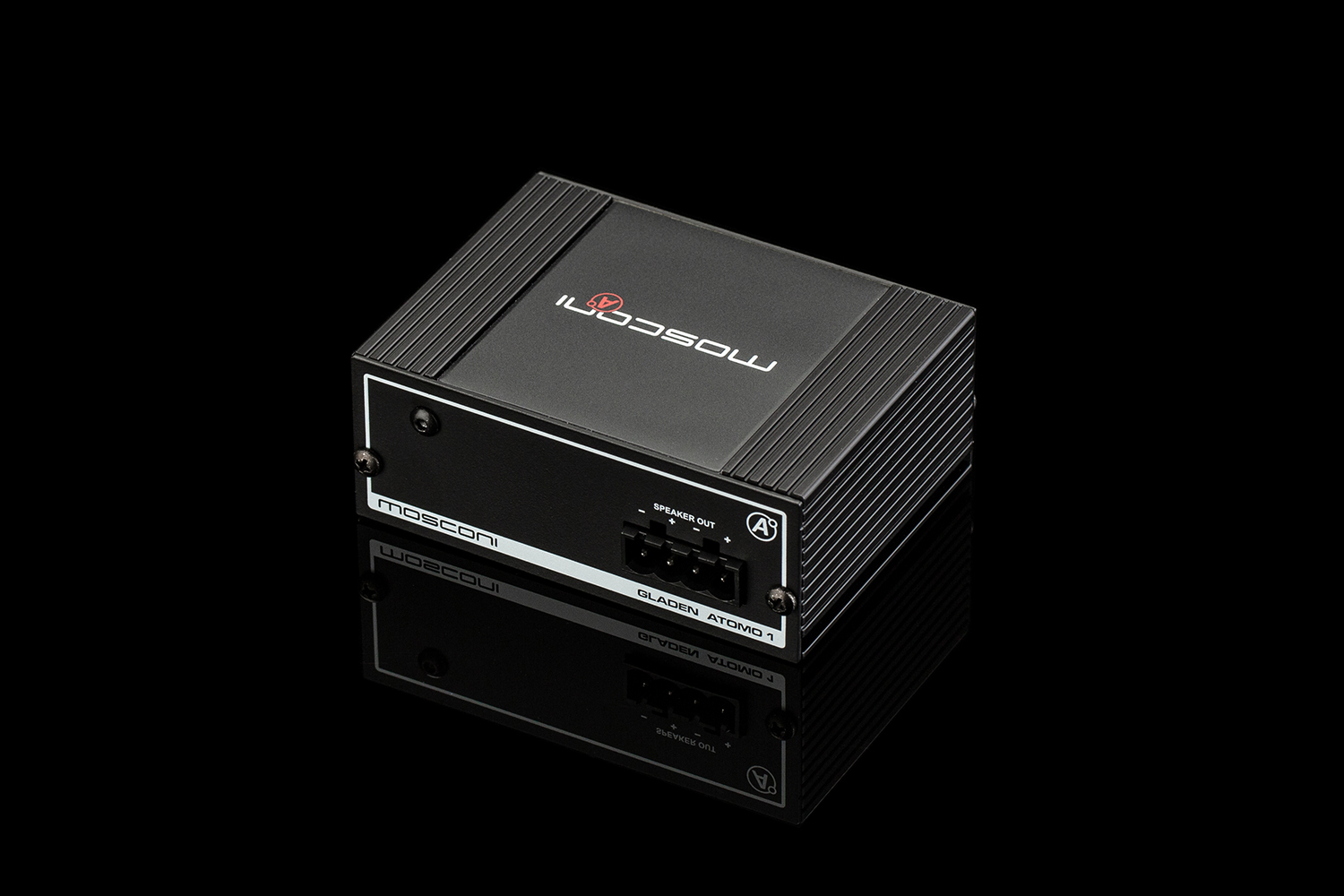

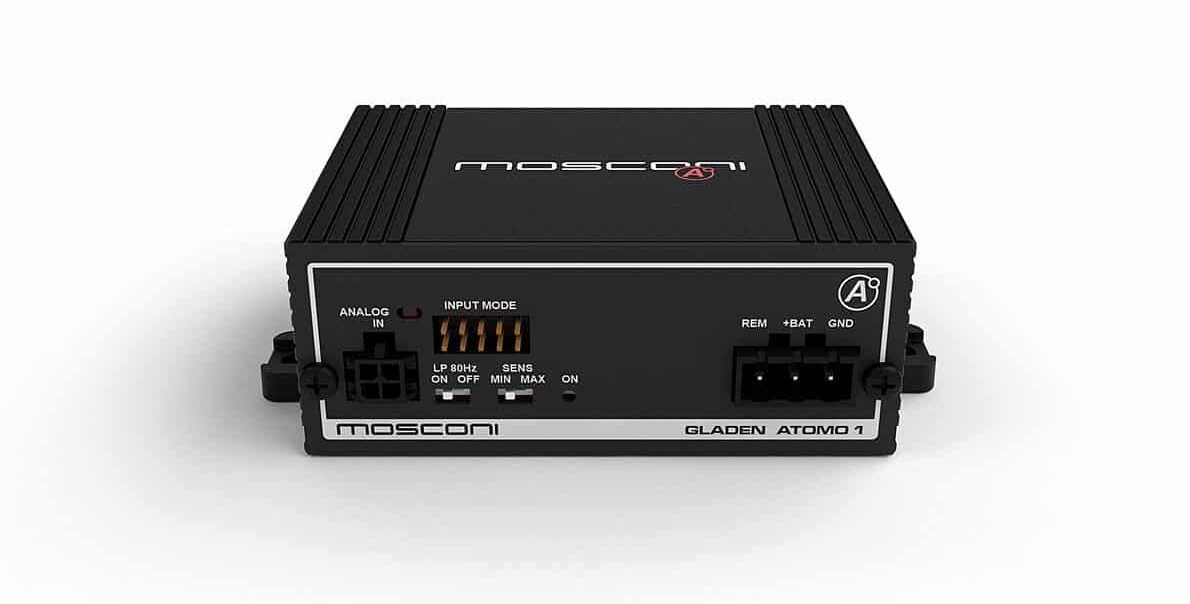

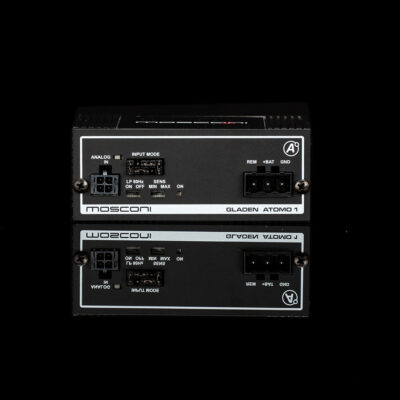

Class D Mono Amplifier

  • Ultra-compact mono channel Atomo amplifier
  • Onboard LP selectable filter
  • High level input with autosense power-on

Description

FEATURES:

  • Ultra-compact mono channel Atomo amplifier
  • Onboard LP selectable filter
  • High level input with autosense power-on

DOWNLOADS:

SPECIFICATIONS:

Power Supply Voltage 10-16V
DC-DC converter typology Unregulated – Push Pull
External Fuse 1 x 20A
Autosense power-on Available by High Level, BTL source only
Overall efficiency >75%
Power output @ 4Ohm 155W x 1 (@ 12V6) –  205W x 1 (@14V4)
Power output @ 2Ohm 350W x 1 (@14V4) *
Analog input 2 x high/low level (EXT2RCA adapter available)
Low Level + High level input sensitivity range 0.38 divided by 2.3Vrms LL [1:1]  – 1.9 divided by 11.4Vrms HL [5:1]
Onboard crossover filter configuration OFF – LP (80Hz)
Dimensions 86 x 65 x 34mm
Weight 280g
Finish Black anodized

* This amplifier is designed to play music on real speakers. It is not rated to drive static signals on pure resistive loads.
