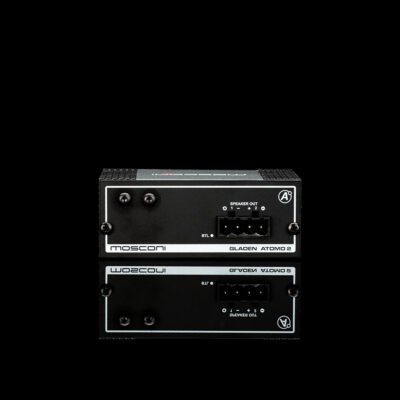

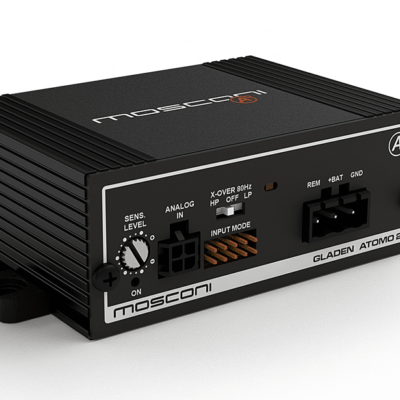

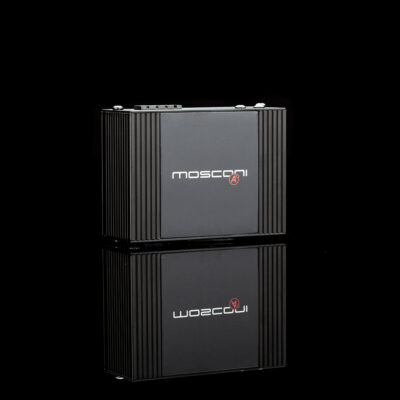

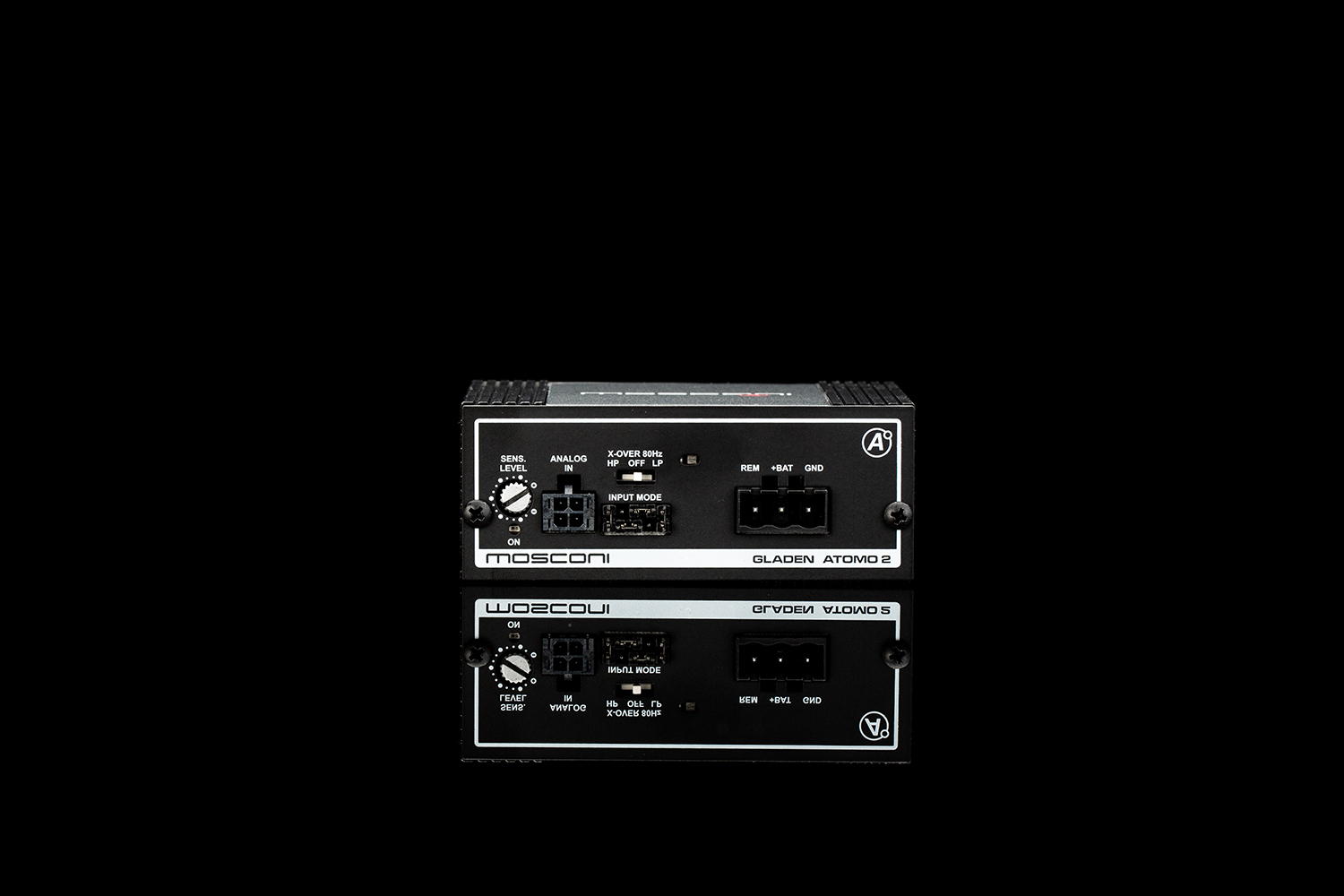

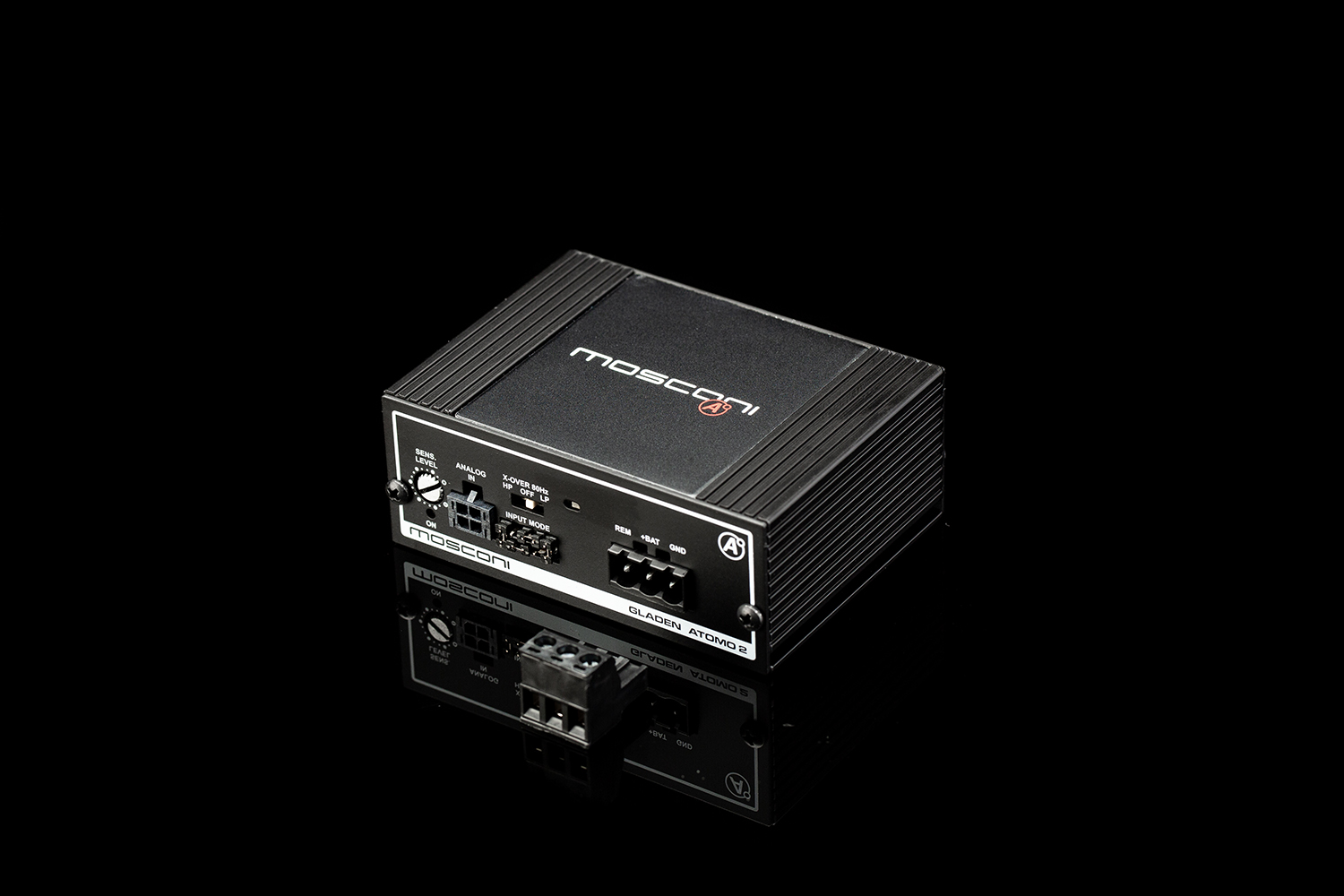

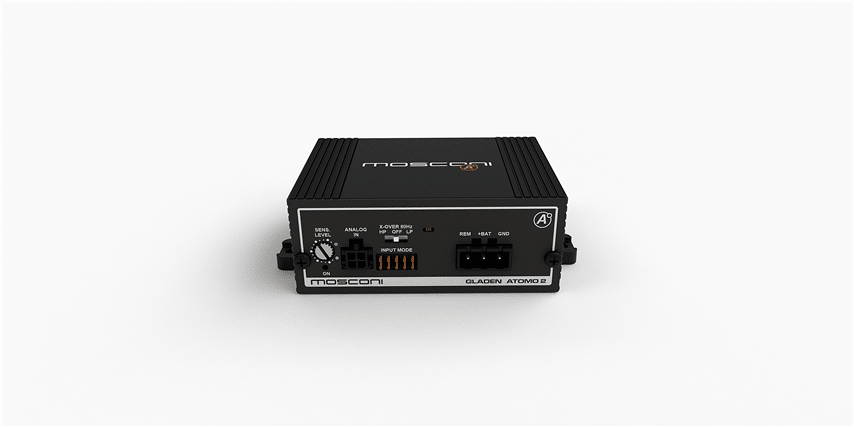

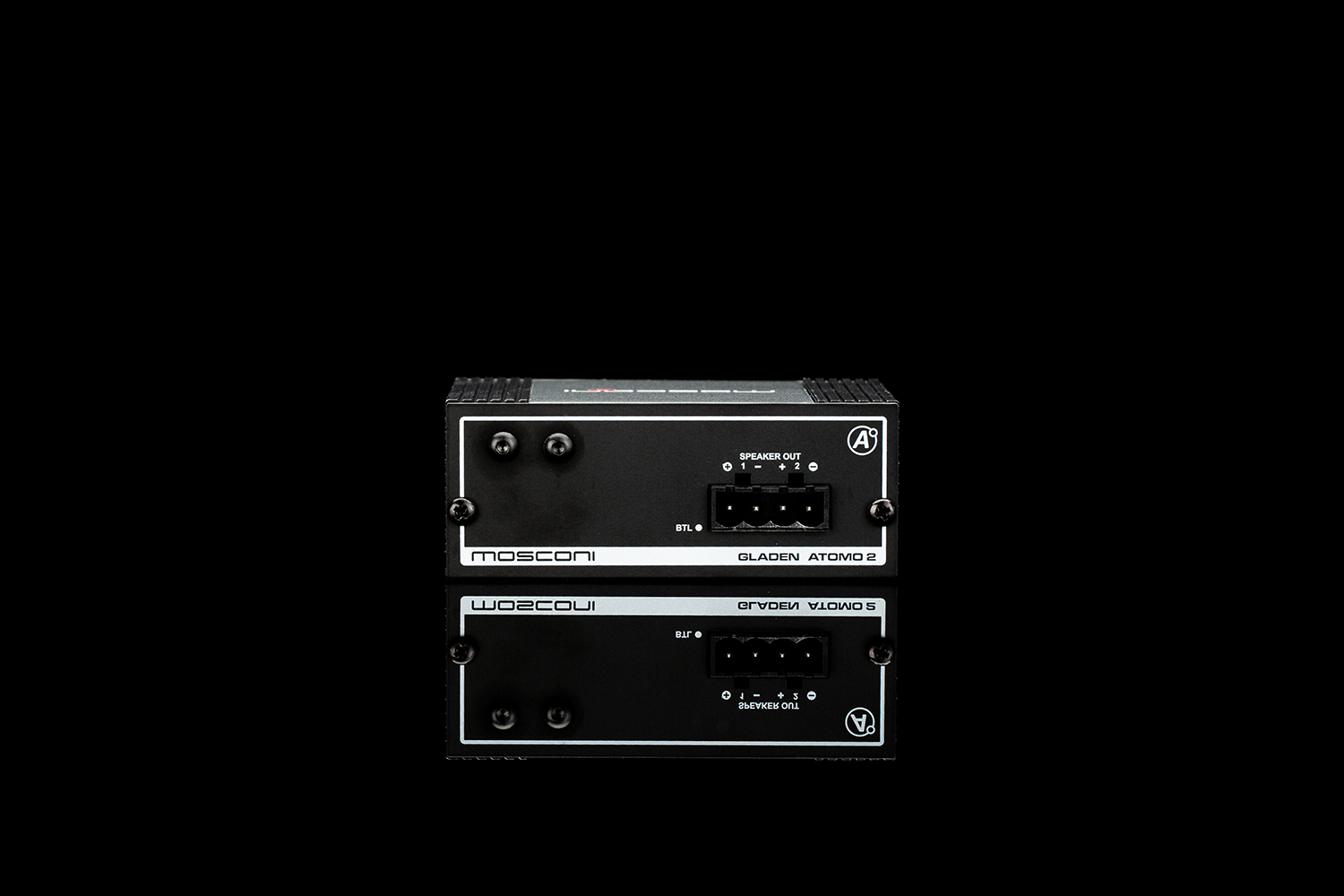

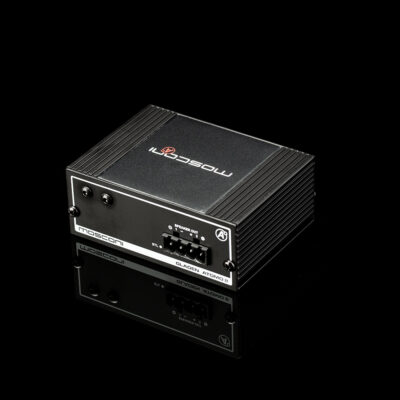

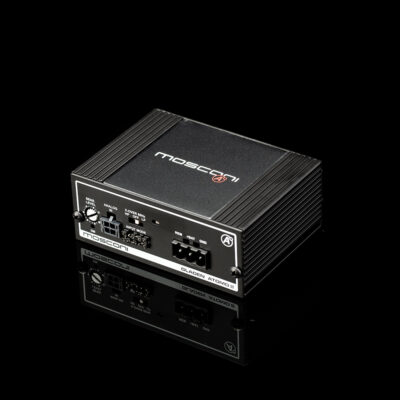

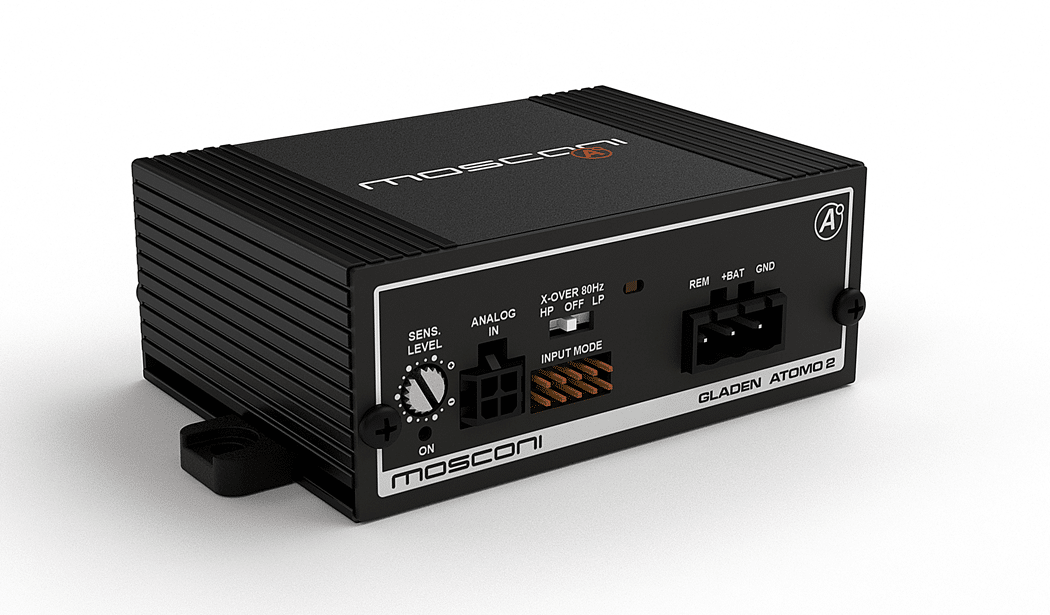

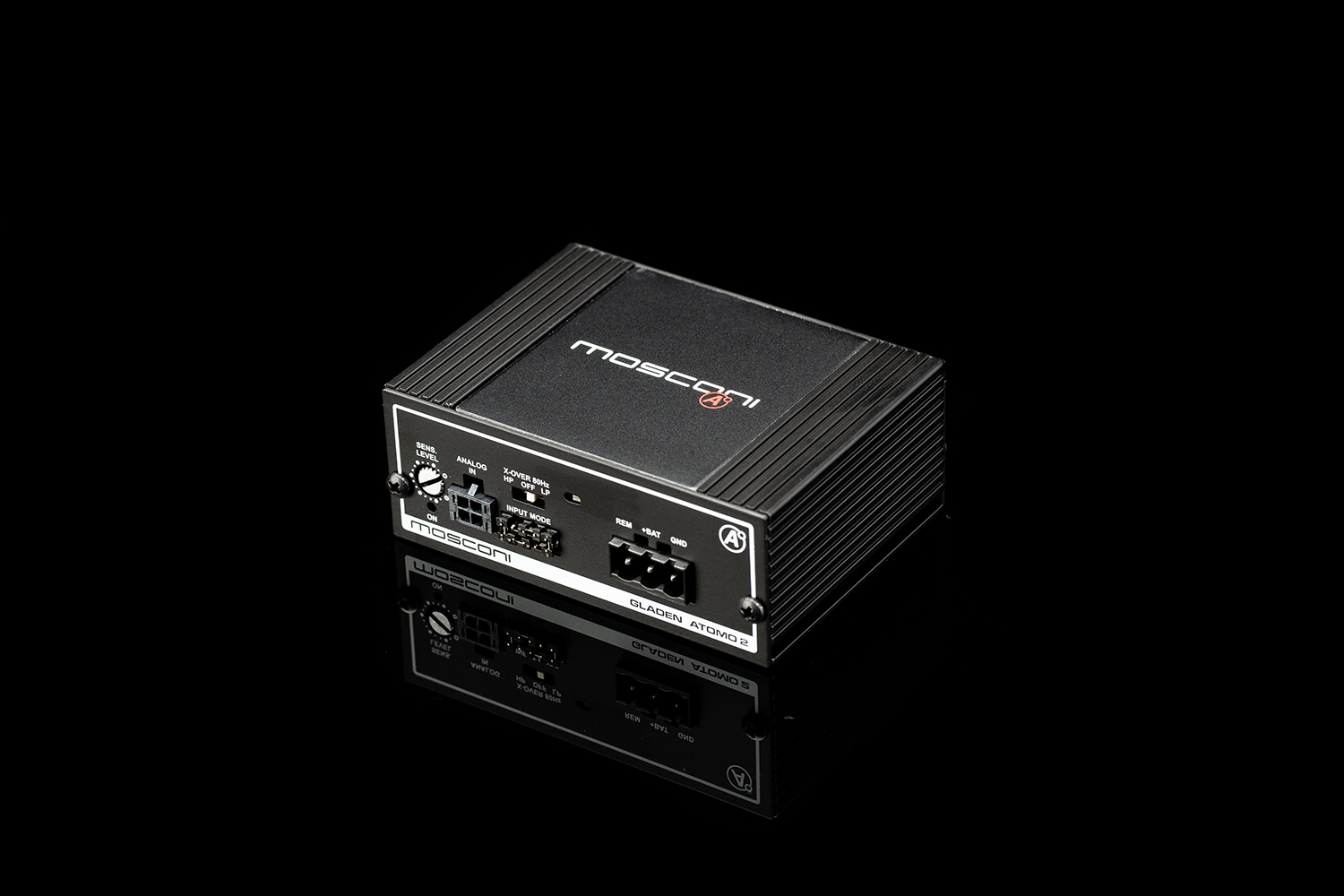

Atomo 2

Atomo 2

2 Channel Class D Amplifier

  • Class D stereo Atomo amplifier
  • Onboard HP/LP selectable filter
  • High level input with autosense power-on

Description

FEATURES:

  • Class D stereo Atomo amplifier
  • Onboard HP/LP selectable filter
  • High level input with autosense power-on

DOWNLOADS:

SPECIFICATIONS:

Power Supply Voltage 10-16V
DC-DC converter typology Unregulated – Push Pull
External Fuse 1 x 15A
Autosense power-on Available by High Level, BTL source only
Overall efficiency >75%
Power output @ 4Ohm 100W x 2 or 220W x 1
Power output @ 2Ohm 110W x 2
Analog input 2 x high/low level (EXT2RCA adapter available)
Low Level + High level input sensitivity range 0.4 divided by 5Vrms (LL) – 1.6 divided by 20Vrms (HL)
Onboard crossover filter configuration OFF – LP – HP (80Hz)
Dimensions 86 x 65 x 34mm
Weight 275g
Finish Black anodized

* This amplifier is designed to play music on real speakers. It is not rated to drive static signals on pure resistive loads.
