FEATURES
- High efficiency amplifier with 4 x 90 Wrms / 4 Ohm output power.
- Fully bridgeable and 2 ohm stable, inputs high and low level.
- Load resistor and ground lift selectable via jumpers, switchable active crossovers.
- Ideal for use in smart OEM projects, or with the EXT4link patch cable as a supplement to a PICO 8|12 DSP.

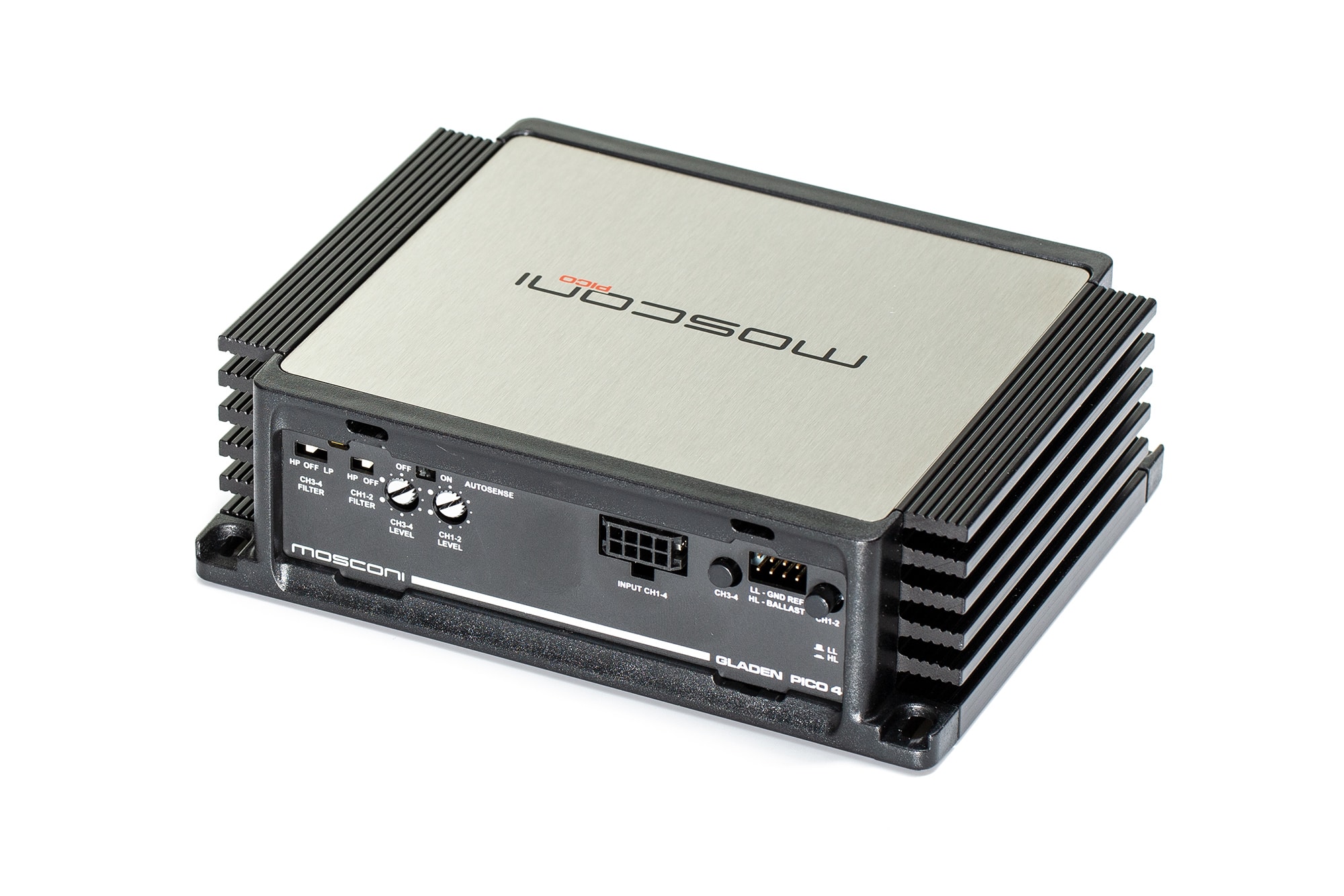

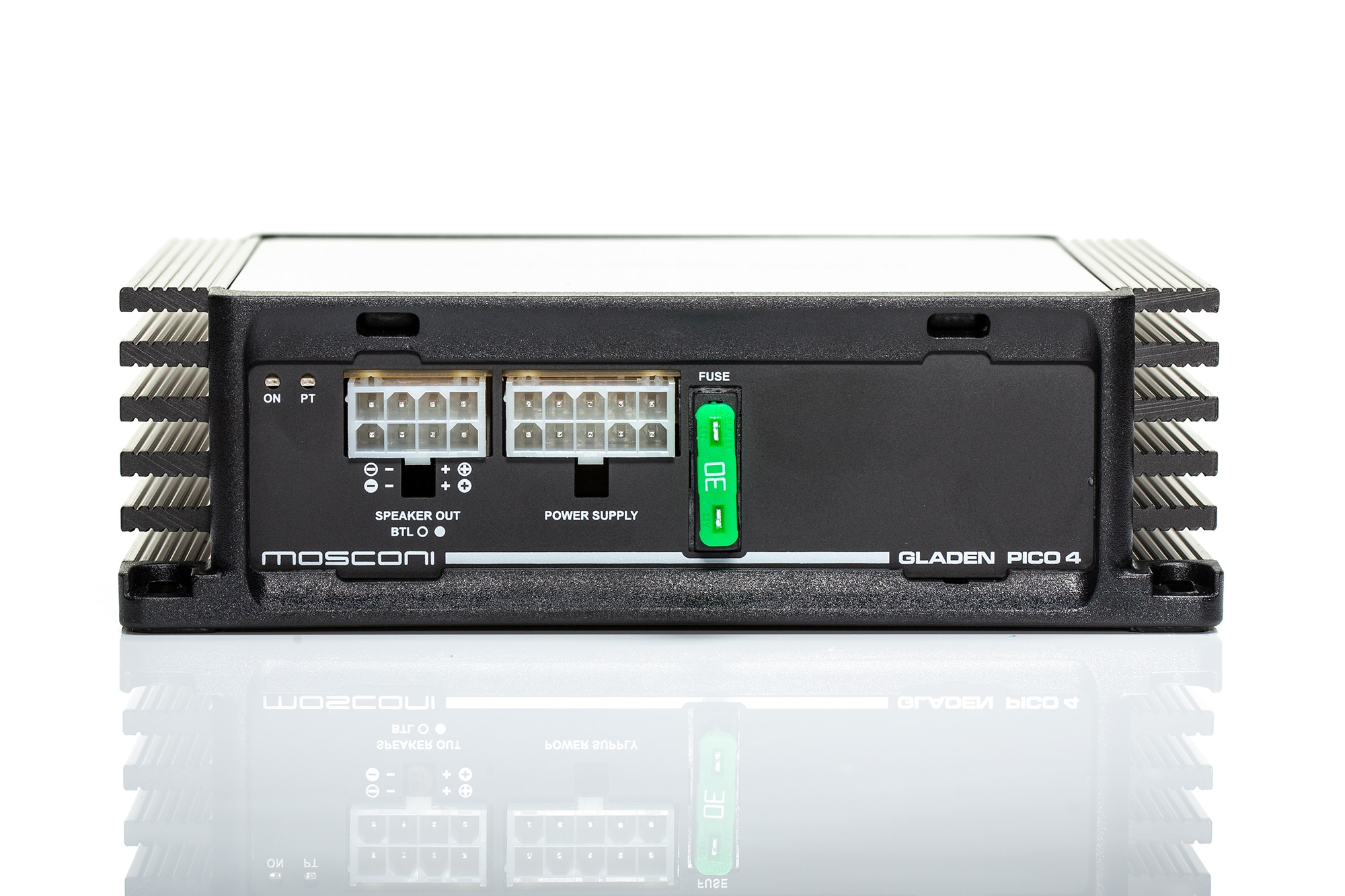

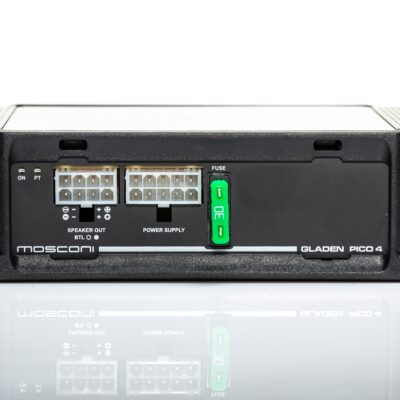

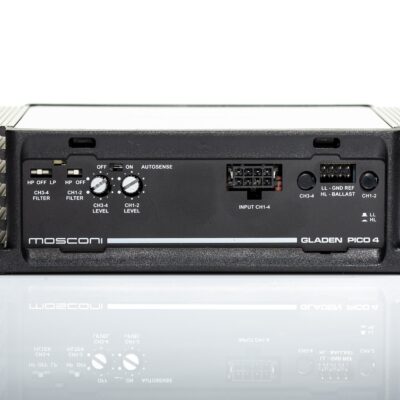

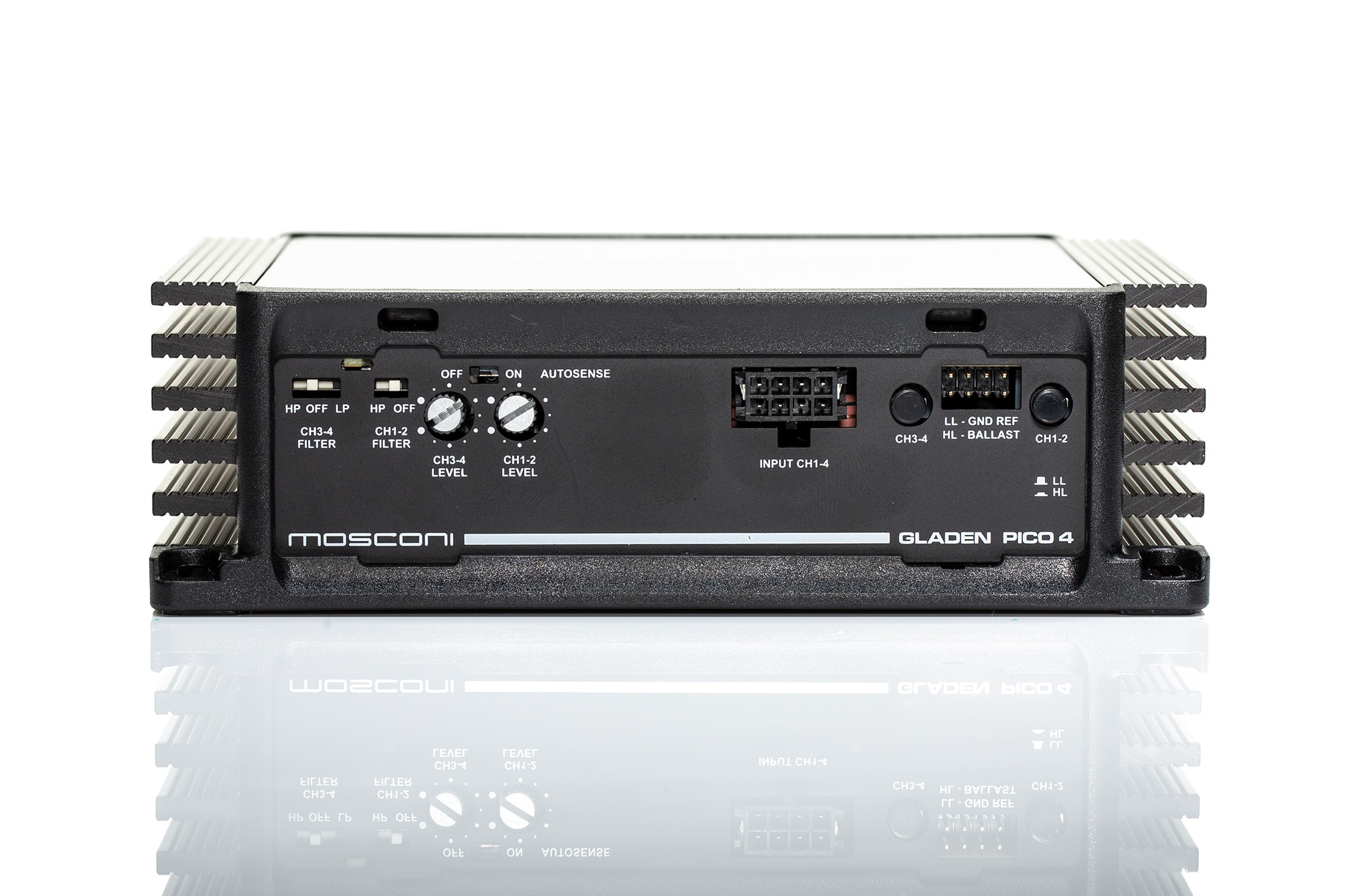

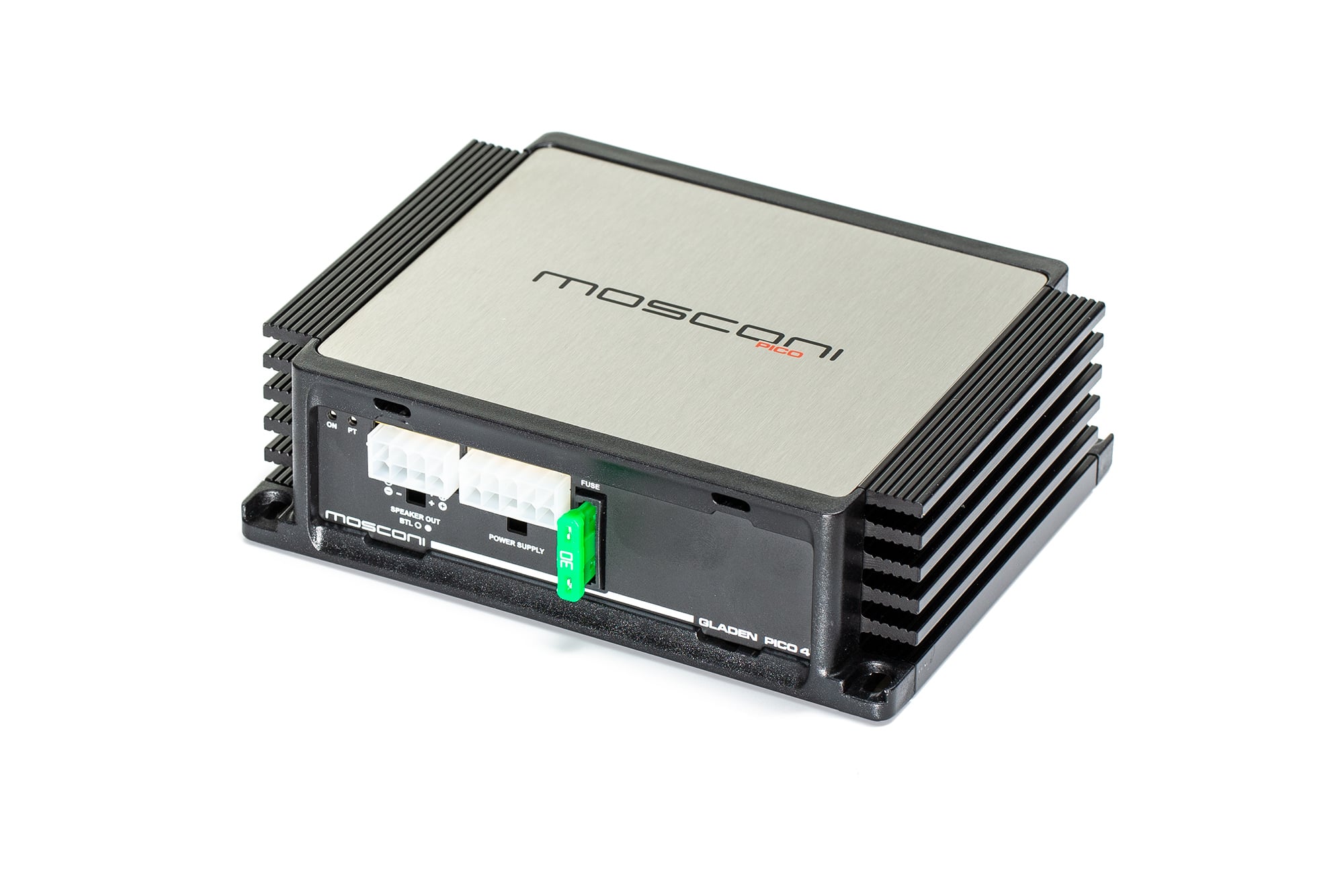

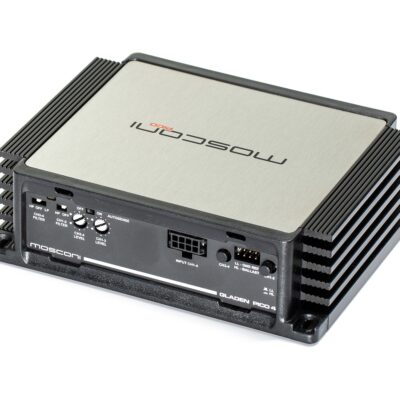

PICO 4SA
-
4 CHANNEL Class D amplifier: 4 x 90W / Crossover for semiactive speaker
SPECIFICATIONS
| Output Powers RMS @ 14.4V (1%THD) |
|
| Input Sensitivity Range |
|
| Onboard crossover filter configuration | HP (CH1/2) / HP or LP (CH3/4) |
| Onboard crossover filter slope | 12dB/oct |
| Onboard crossover filter frequency | 80Hz |
| Size and Weight | 150 x 115 x 46mm, 1.4Kg |
