Pro 2|10

Pro 2|10

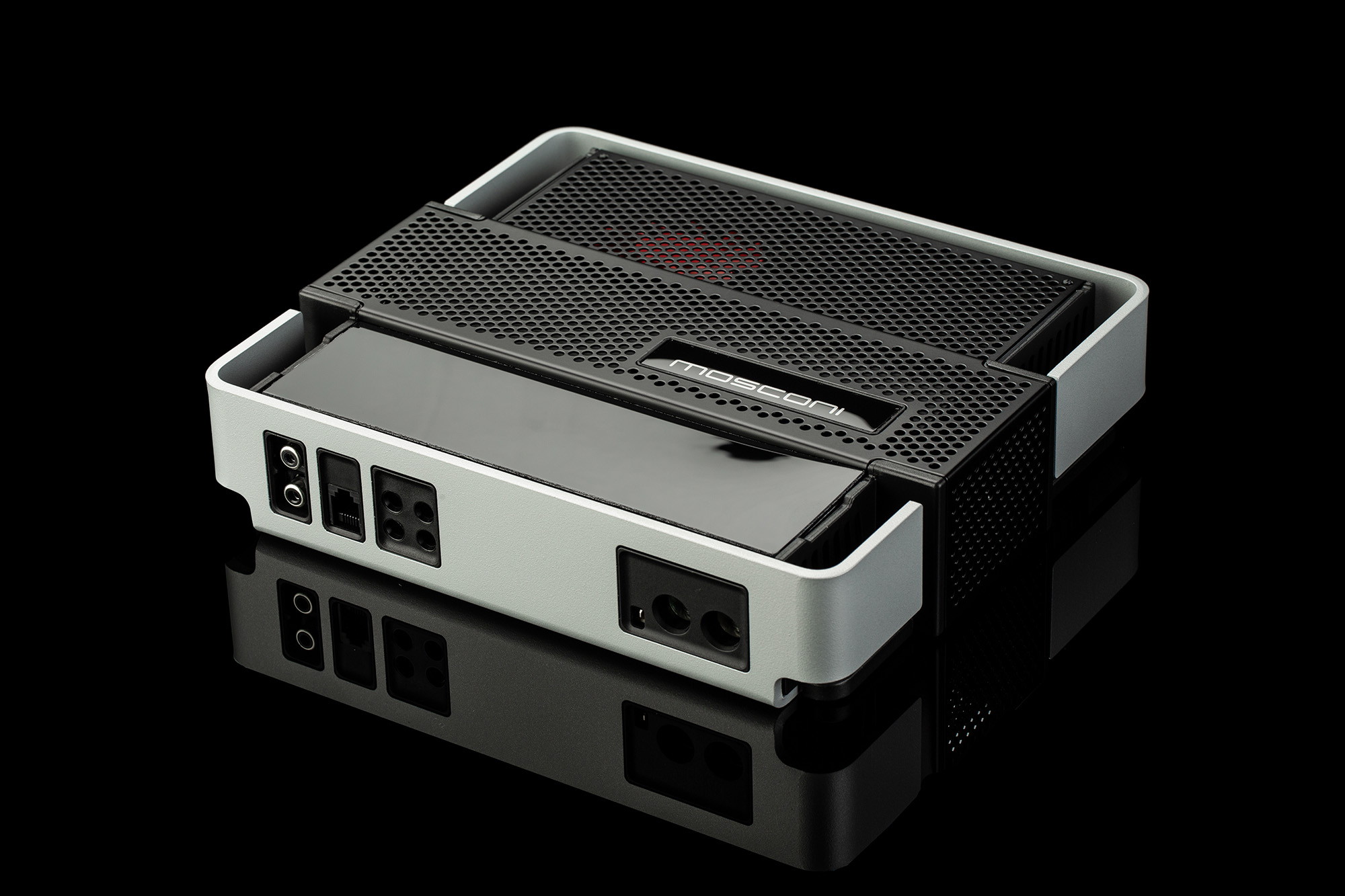

2-CHANNEL CLASS AB AMPLIFIER

  • 2 channel amplifier
  • Available in Black/Silver finishing
  • Power Rating: 240 Watt per channel @ 4 Ohm < 1% THD+N

DOWNLOAD:

Description

FEATURES:

  • Class AB power amplifier full MOSFET
  • Unregulated power supply
  • High level input with autosense power-on
  • Cross Over with independent High Pass and Low Pass filter
  • Direct DSP
  • Remote Volume Control RTC (optional)

SPECS:

Target powers:

  • 240×2 Watt (Stereo) @ 4 Ohm
  • 360×2 Watt (Stereo) @ 2 Ohm
  • 720×1 Watt (BTL) @ 4 Ohm

Input sensitivity: (Power rating ref)

  • 0.35V ÷ 12V (6.2V in DDSP mode)

Xover functions:

  • LOW PASS 43 ÷ 300Hz [24 dB/oct]
  • HIGH PASS 18 ÷ 280Hz [24 dB/oct]

Special features:

  • DDSP / Direct DSP (bypass all the preamplifier circuitry but the differential input interface)
  • High Level / Low Level selectable input
  • Autosense (BTL mode only)
  • RTC – Allow to regulate the volume by a remote position (optional)
  • Controlled via uC – Internally controlled via Atmel Processor

Size:

  • 235 x 205 x 55 mm

Weight:

  • 2.3 Kg
