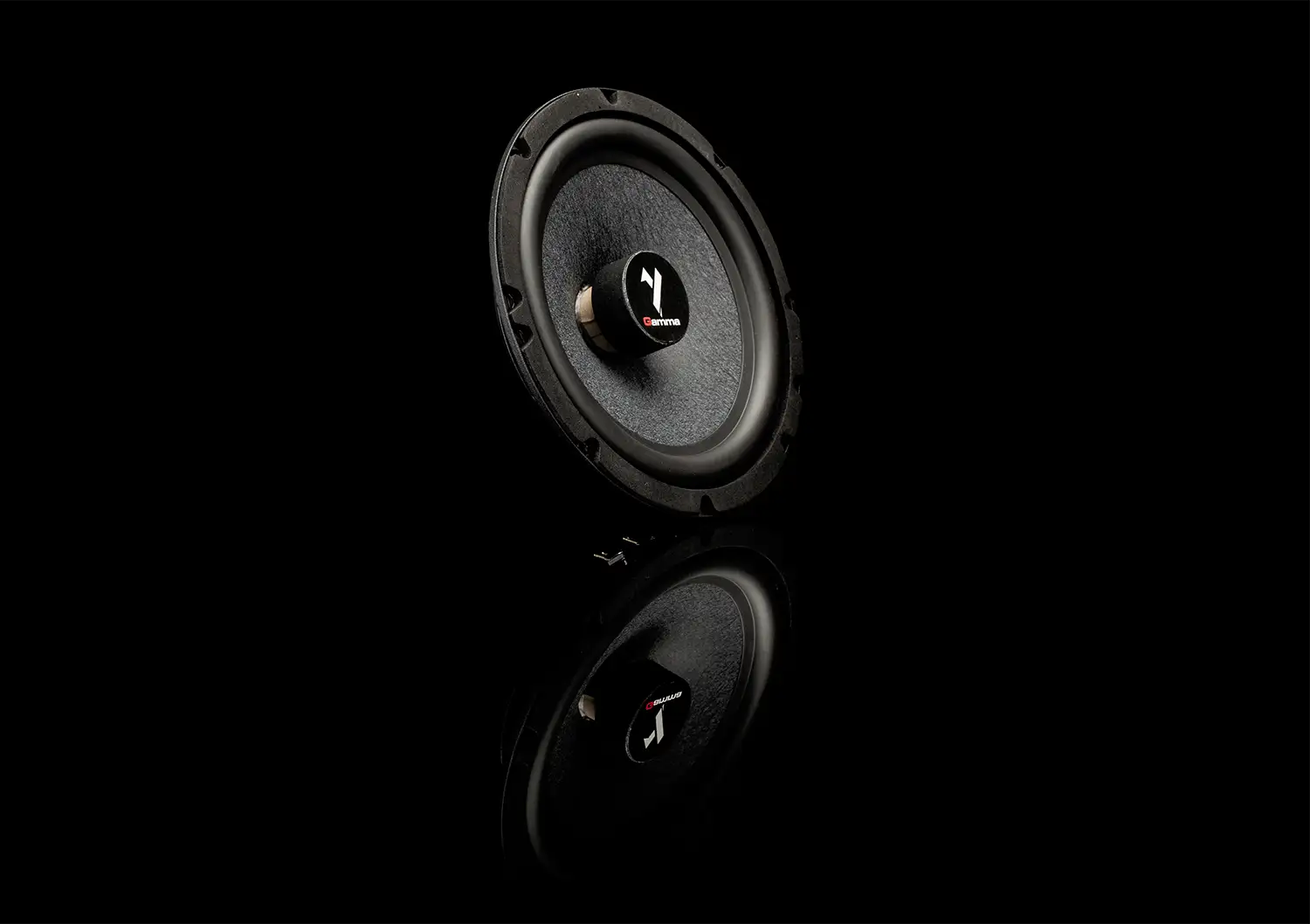

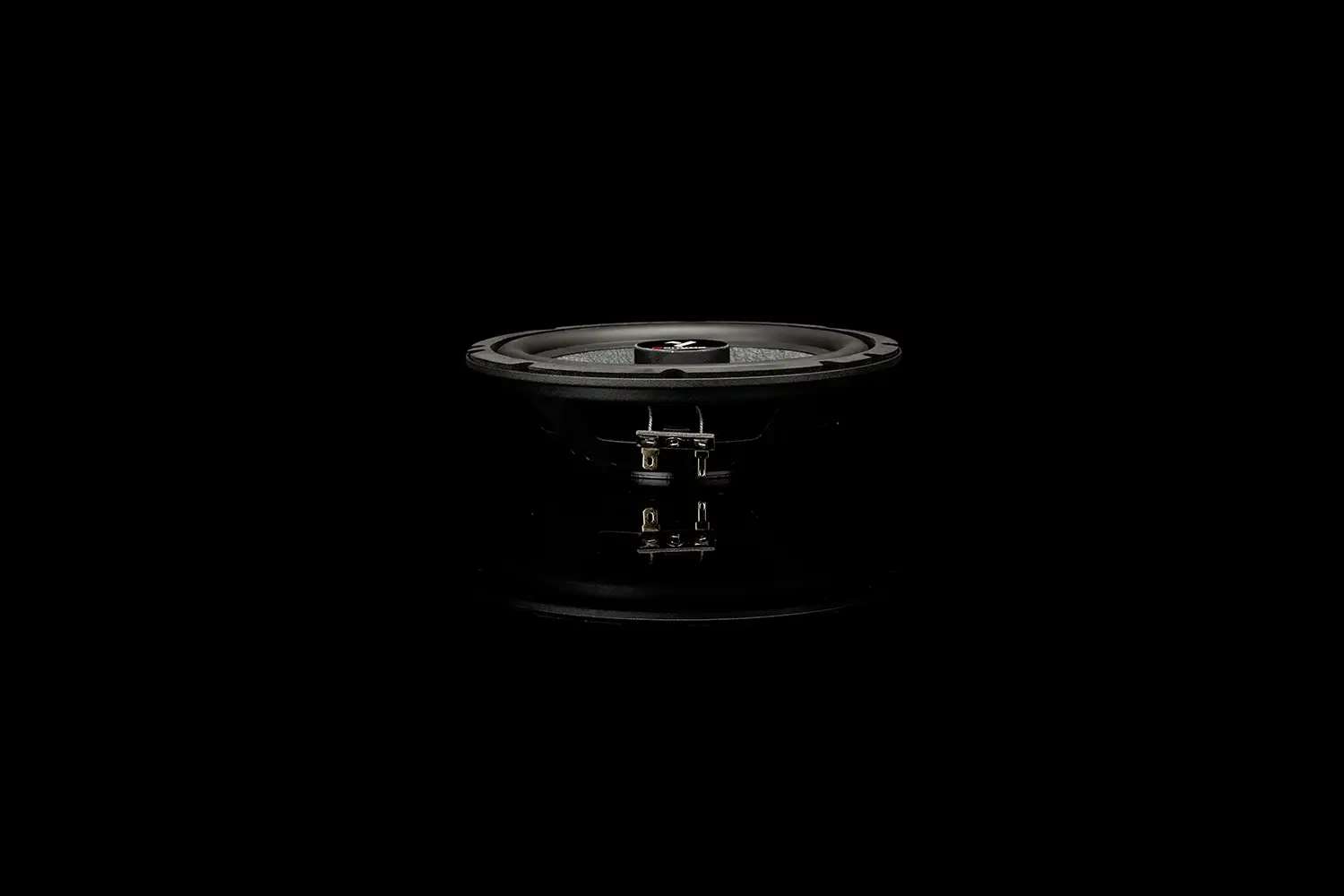

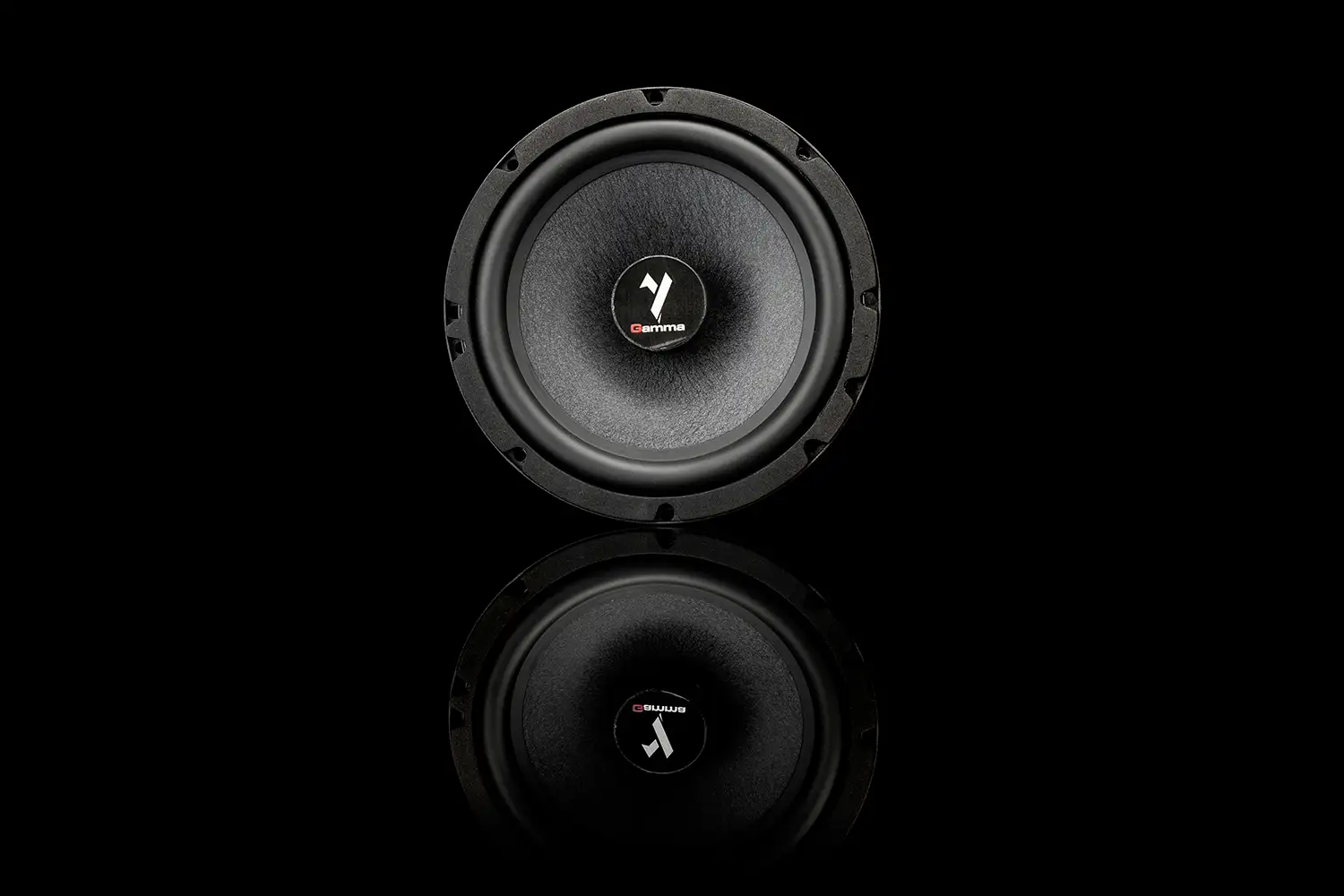

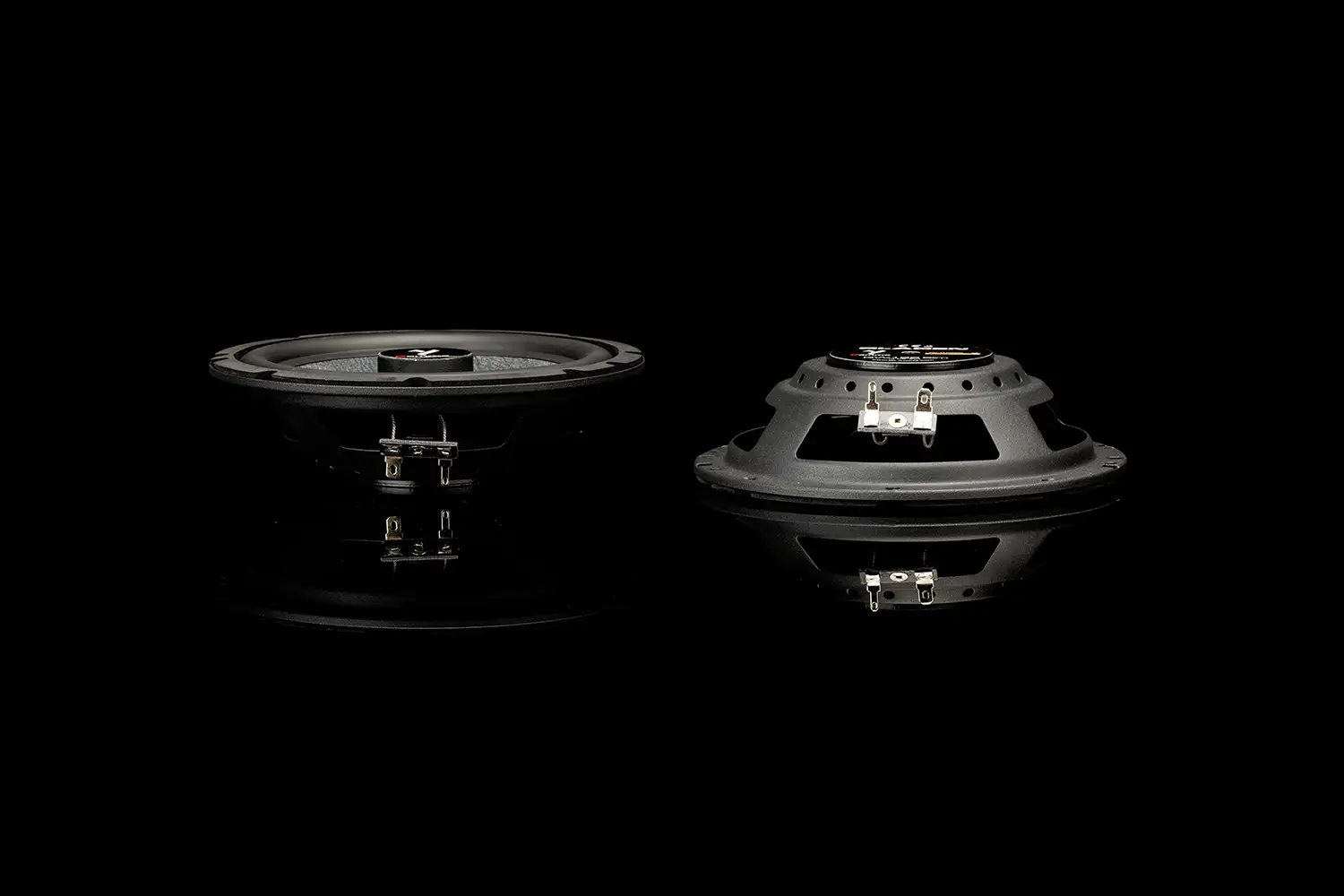

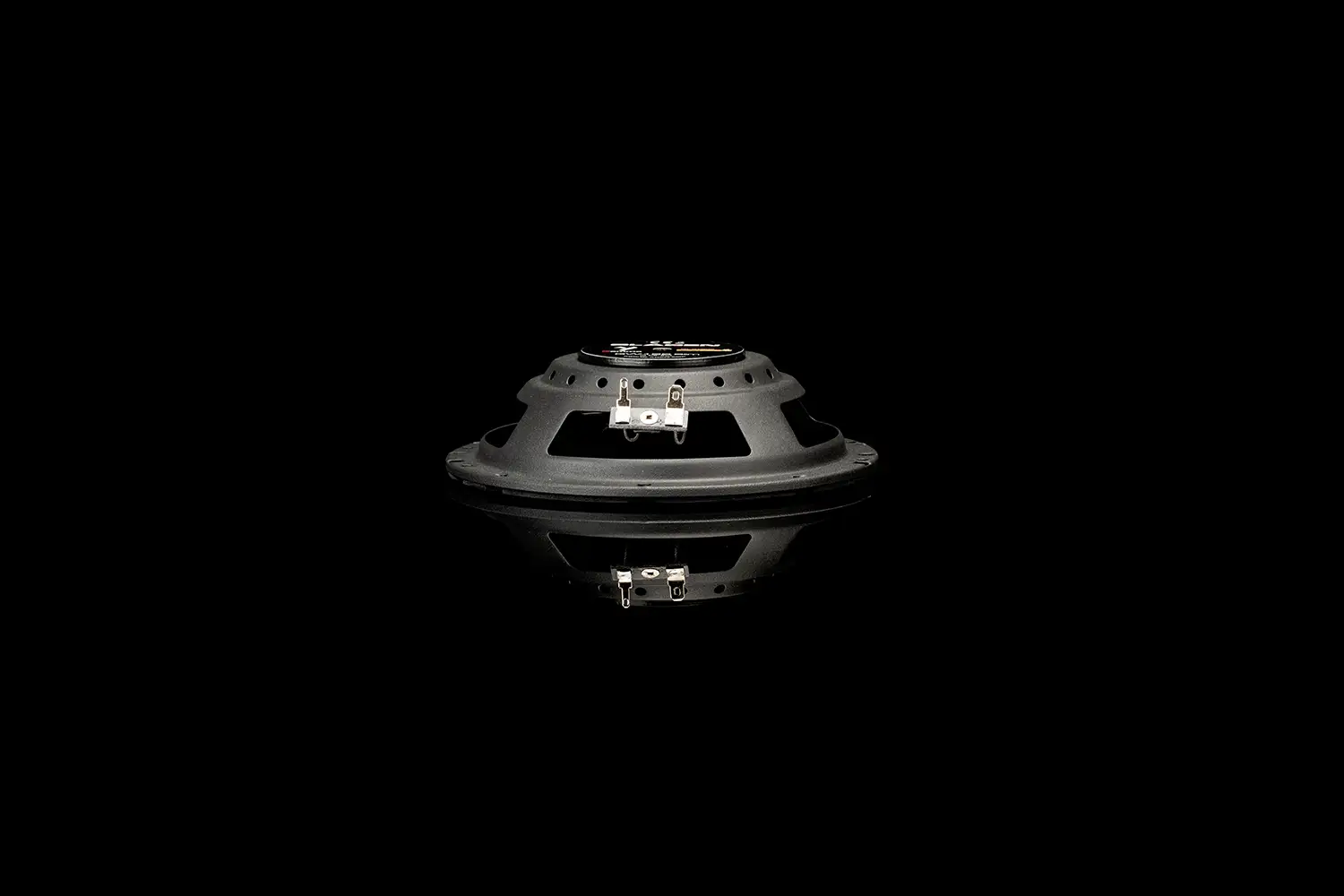

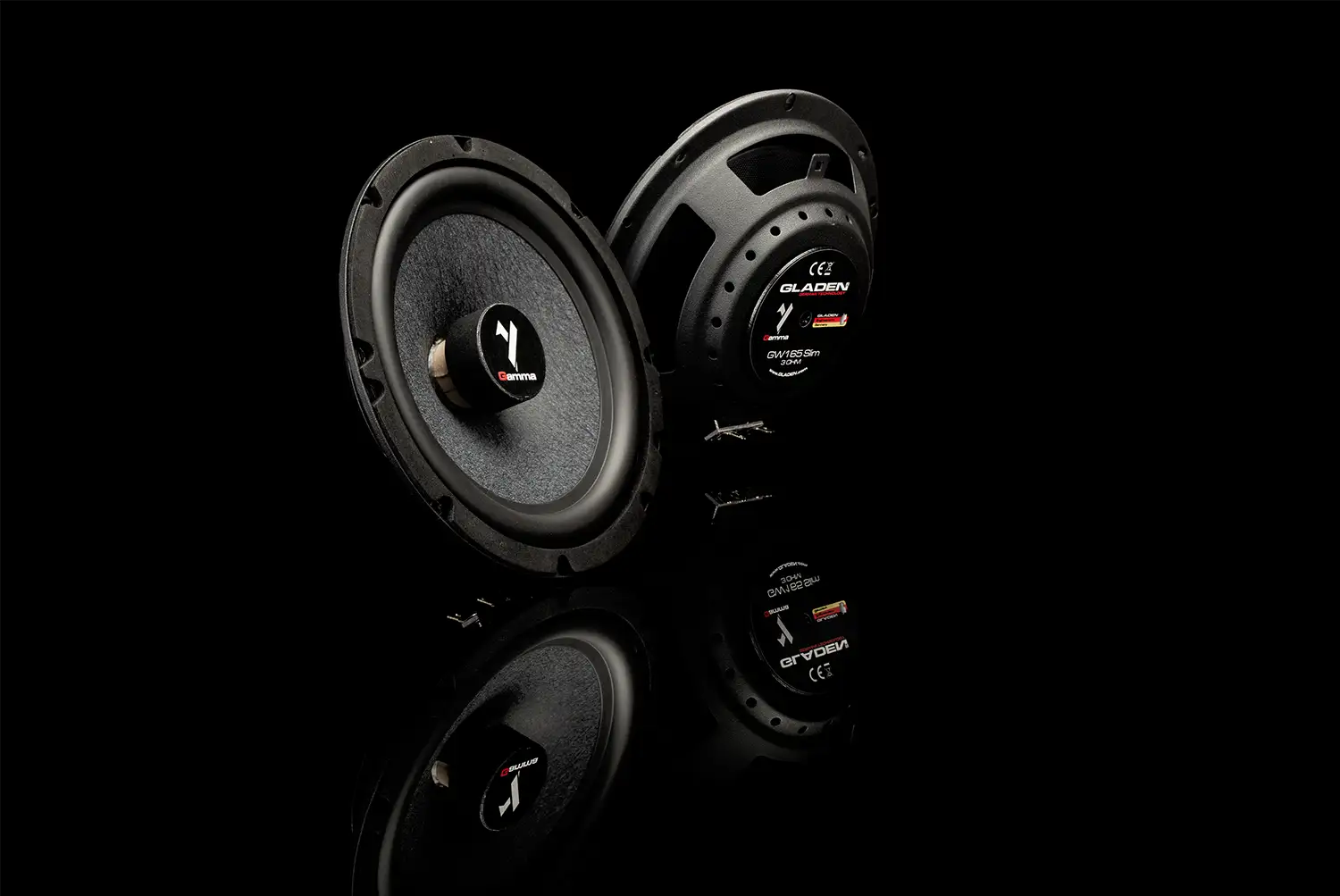

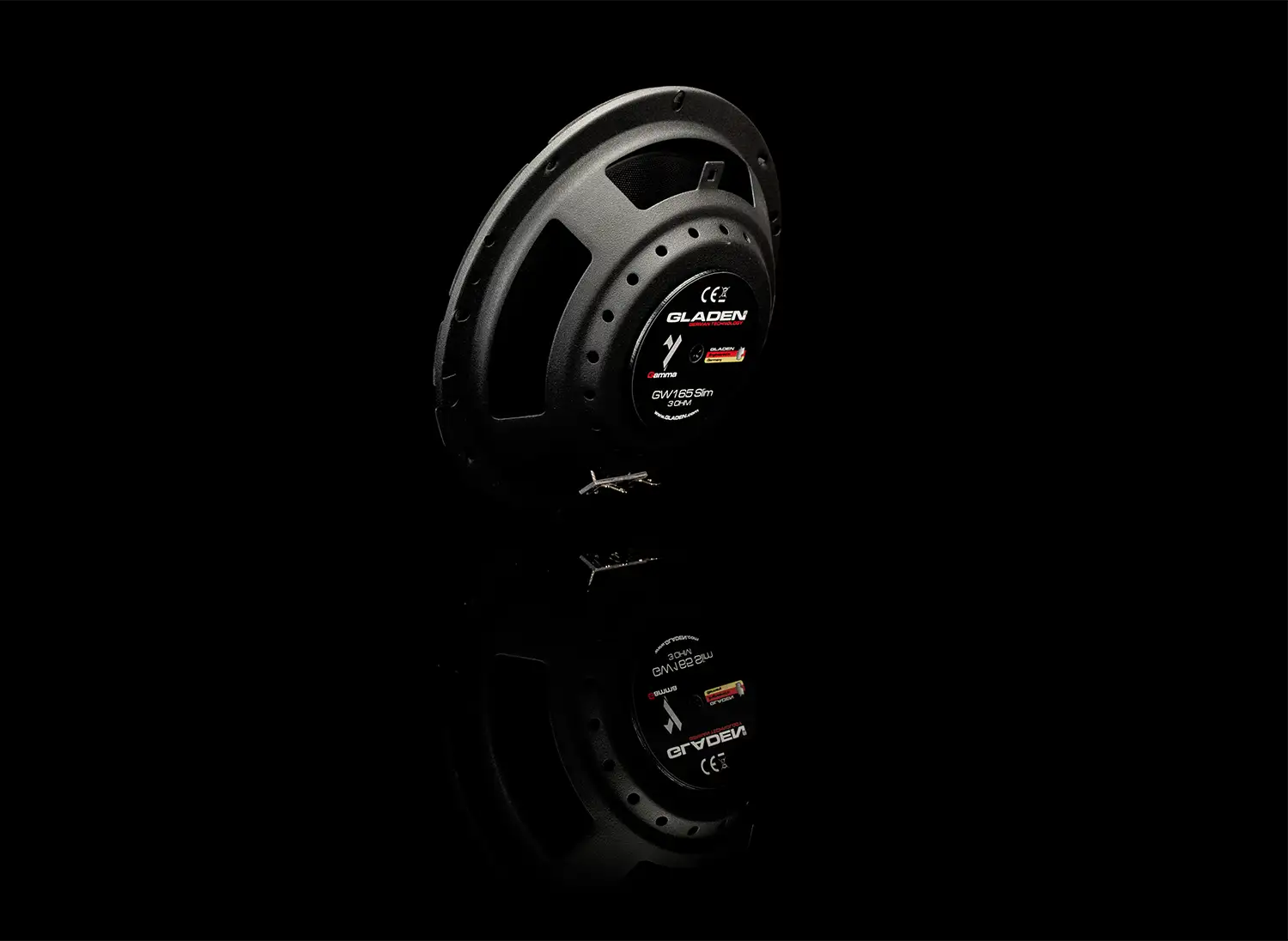

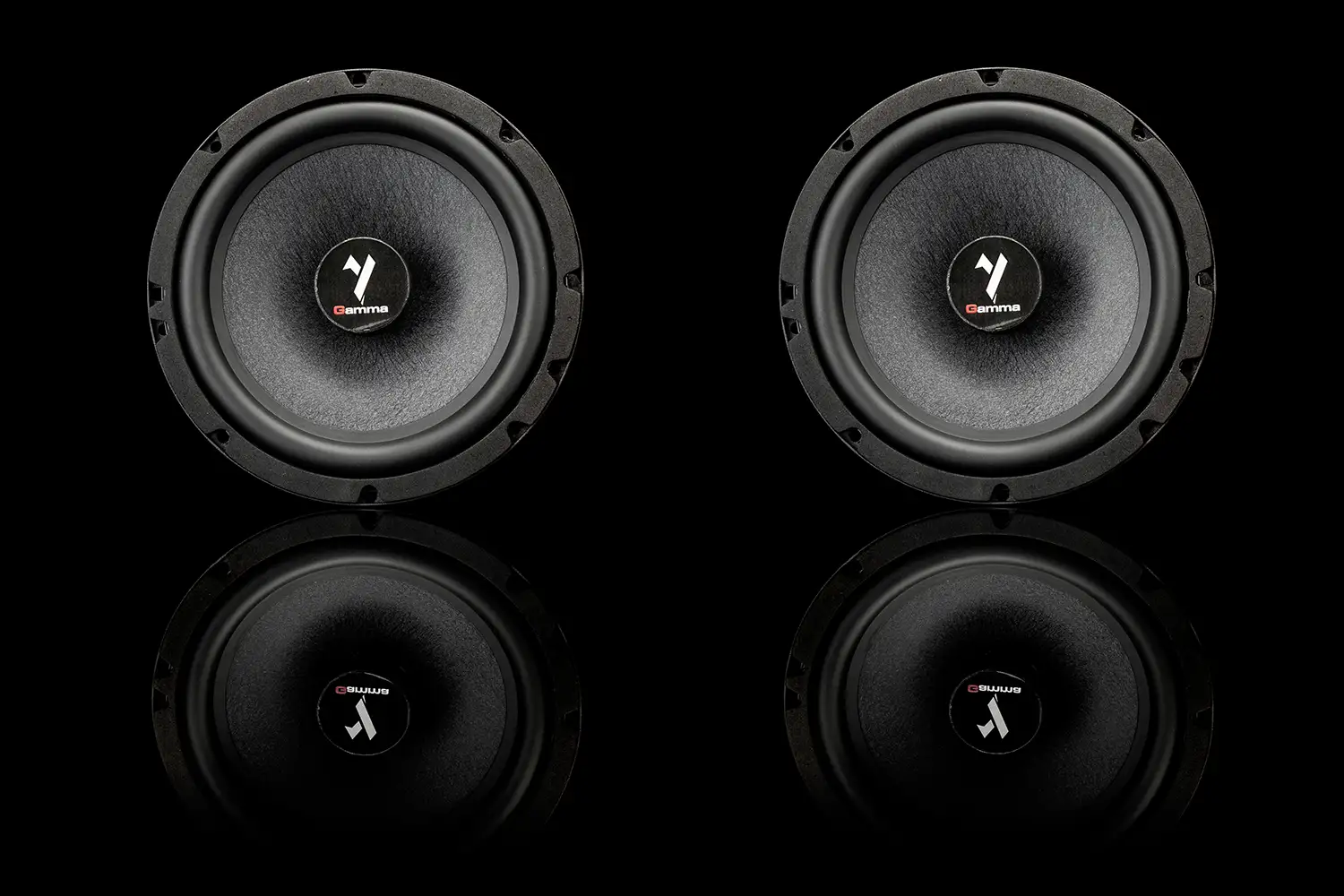

GW 165 Slim

GW 165 Slim

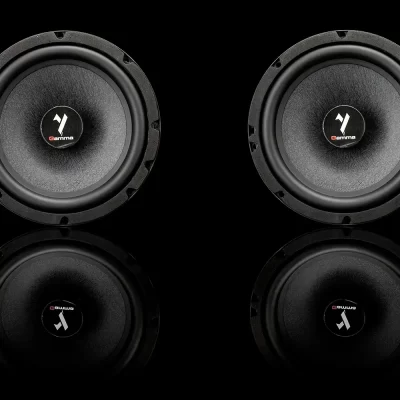

165mm Slim Component Speaker (Pair)

  • 165mm Loudspeaker
  • 150 | 100 Watts
  • 3 Ohm Impedance
  • Glass fiber Nomex membrane
  • Slim

Download:

Description

Overview

The GLADEN GAMMA GW165 Slim was specially developed for vehicle installations with limited space. It provides full-fledged, controlled sound reproduction in spaces where conventional woofers cannot be installed, without compromising precision or musicality.
Despite its flat design, the GW165 Slim delivers surprisingly powerful, clean kick bass. Music gains noticeable body, voices sound more present, and instruments remain clearly structured. The sound image remains stable and balanced, even at higher volumes, making it ideal for modern door and OEM-like installation solutions.
The specially tuned diaphragm ensures a fast response time and high control. Impulses are precisely translated, and the bass remains tight and defined, never booming or losing clarity. This makes the sound reproduction lively yet always confident and pleasant.
The GAMMA GW165 Slim can be flexibly integrated into door spaces or compact installation concepts. It is ideal for active or passive multi-way systems within the GAMMA series.
It is the ideal choice for those who want precise, musical, and mature sound without compromising on minimal installation depth: flat, powerful, and uncompromisingly GAMMA.

  • Size: 165 mm
  • Glass fiber Nomex membrane
  • Nomex spider
  • 25 mm voice coil
  • Flat design

Specifications

  • Powerhandling: 130 | 80 Watt
  • Direct current resistance (Rdc): 2,6 Ω
  • Impedance: 3 Ω
  • Resonance frequency (fs): 81 Hz
  • Qms: 5,21
  • Qes: 0,99
  • Qts: 0,83
  • VAS: 9,5 liter
  • Mms: 10,1 g
  • Sq: 135 cm²
