SSW 065

SSW 065

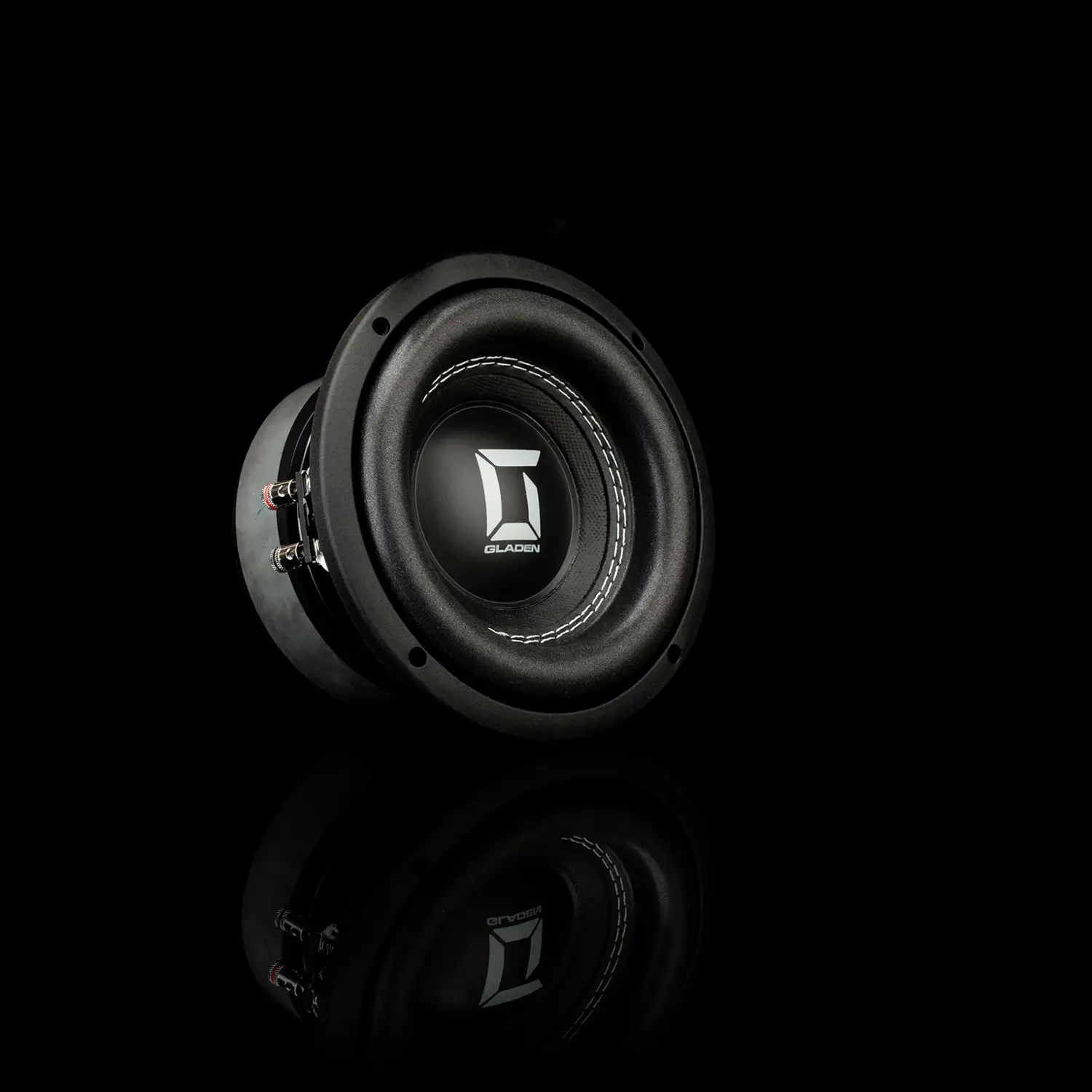

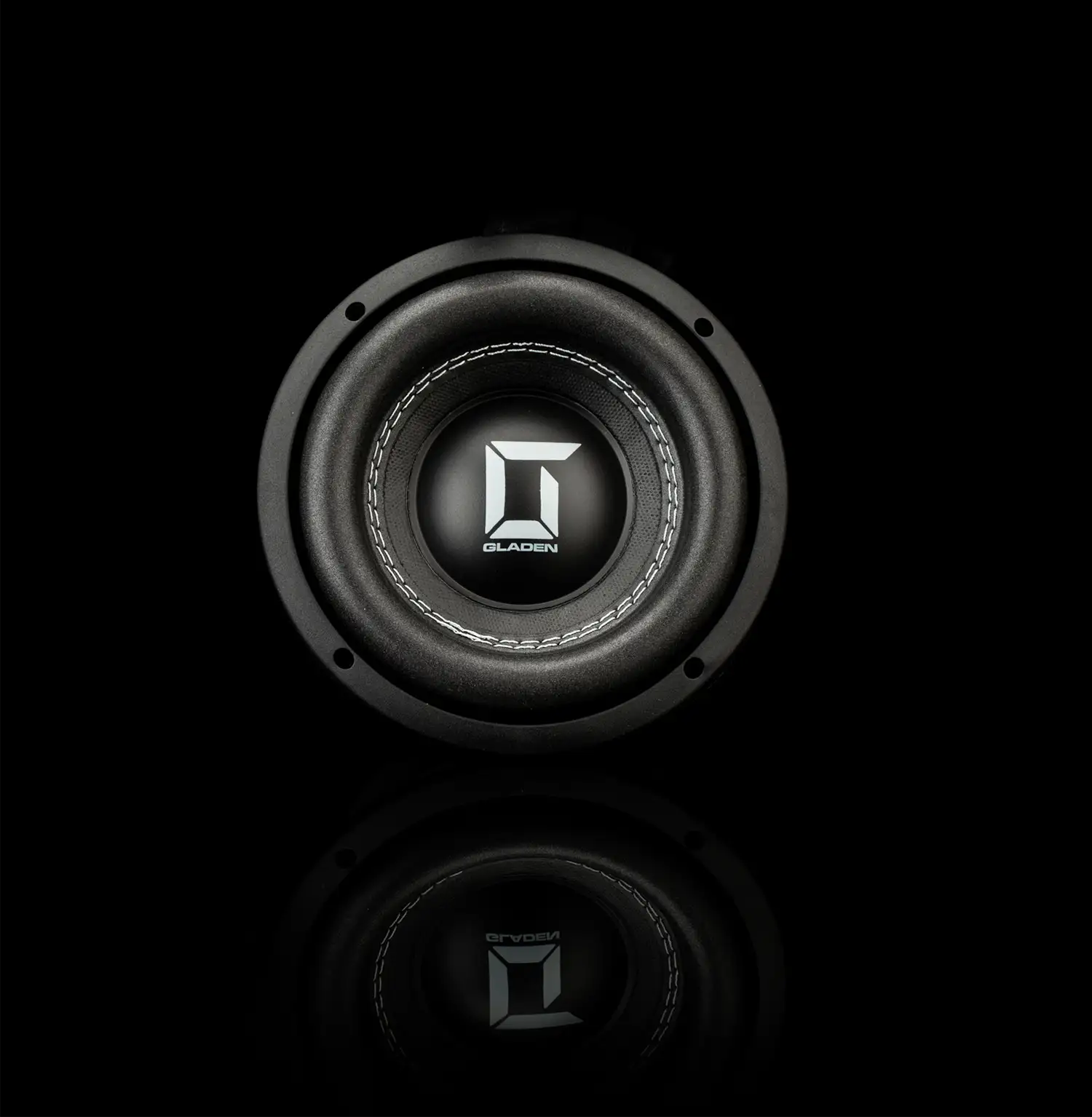

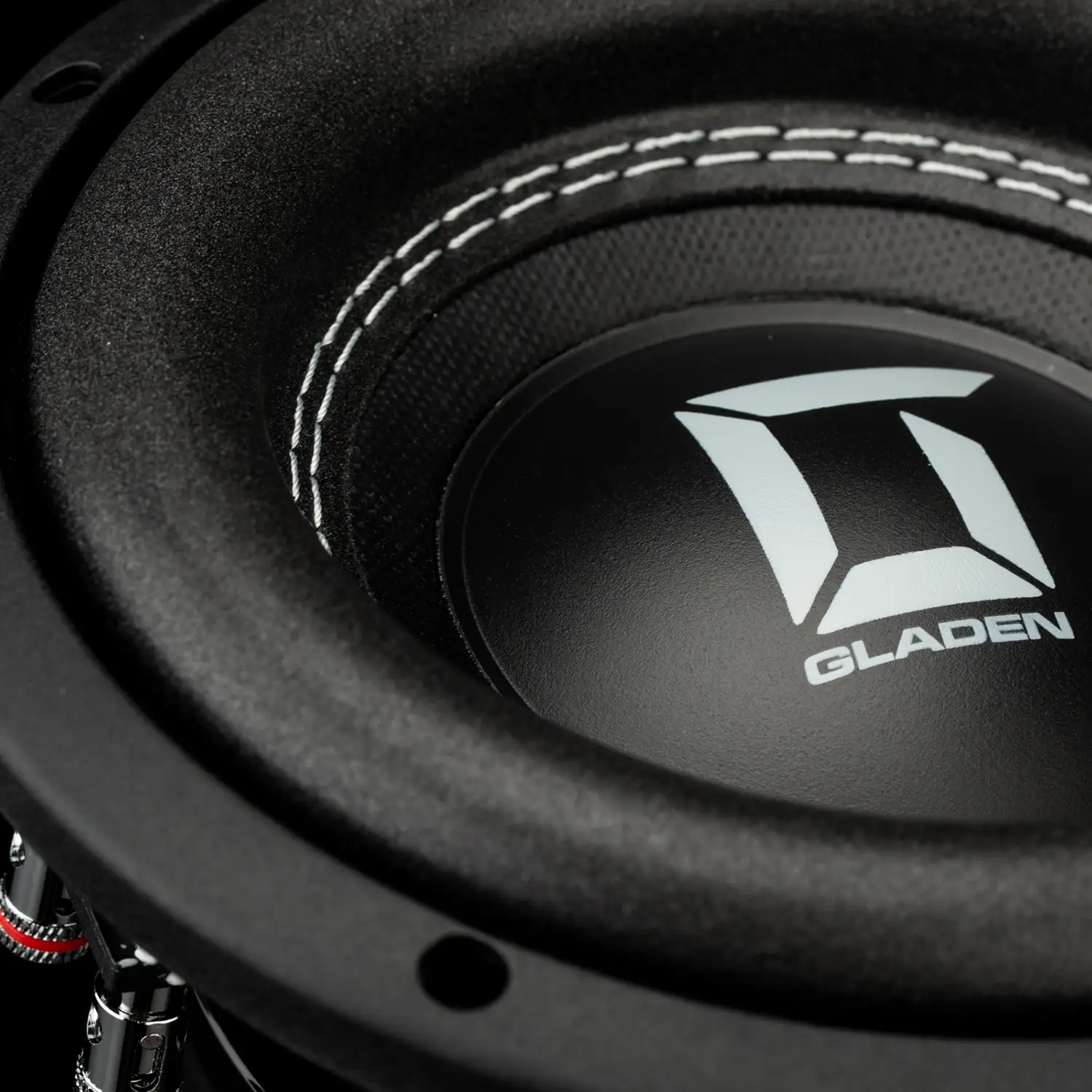

Sigma 6.5-Inch Subwoofer

  • 16 cm / 6,5” Subwoofer
  • 400 / 250 watts
  • 2×2 ohms impedance
  • 1,5” voice coil

Download:

Description

Overview

The GLADEN SIGMA SSW065 was specially developed for compact vehicle installations requiring controlled bass and high precision. Despite its small size, this 6.5-inch subwoofer delivers powerful performance thanks to its long-stroke suspension unit. These features ensure clean bass impulses and high control.

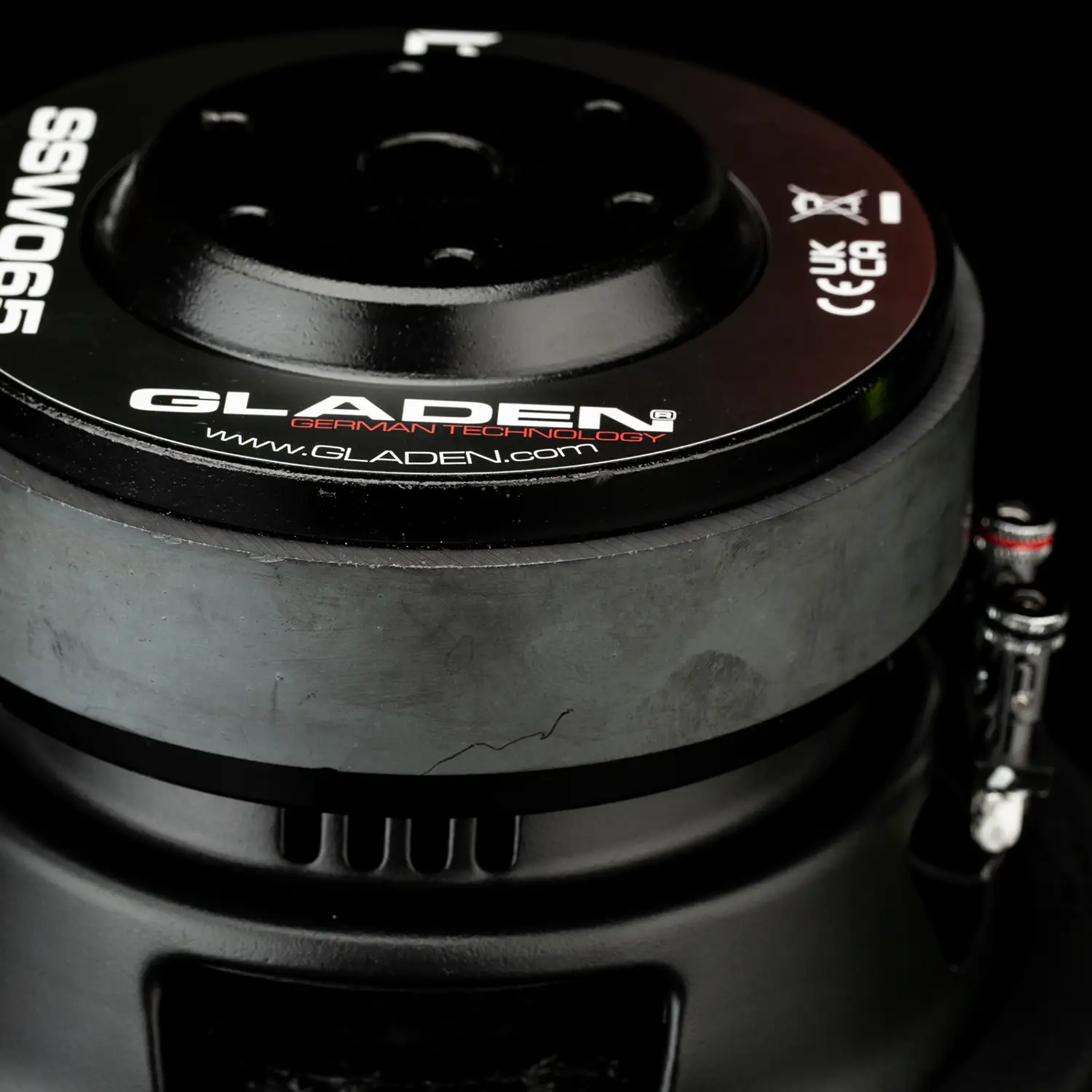

The FEM-optimized motor structure provides efficient power transmission with low distortion. Combined with the lightweight yet stable paper cone and precisely tuned suspension, the SSW065 delivers an accurate, dry low-frequency response, making it ideal for closed and compact bass reflex enclosures.

Thanks to its dual 2-ohm voice coil, the SIGMA SSW065 offers maximum flexibility in system integration and is ideal for modern, space-saving vehicle concepts that require high sound quality.

  • Compact 6.5″ subwoofer for precise bass.
  • FEM-optimized drive for high control
  • Long-throw 1.5″ voice coil (dual 2 ohms).
  • It is optimized for small, closed, and bass reflex enclosures.

Specifications:

  • Dustcap: PP
  • Coilformer: Aluminum
  • Spider: 4.5″ PC Mix (poly-cotton blend)
  • Cone: Paper

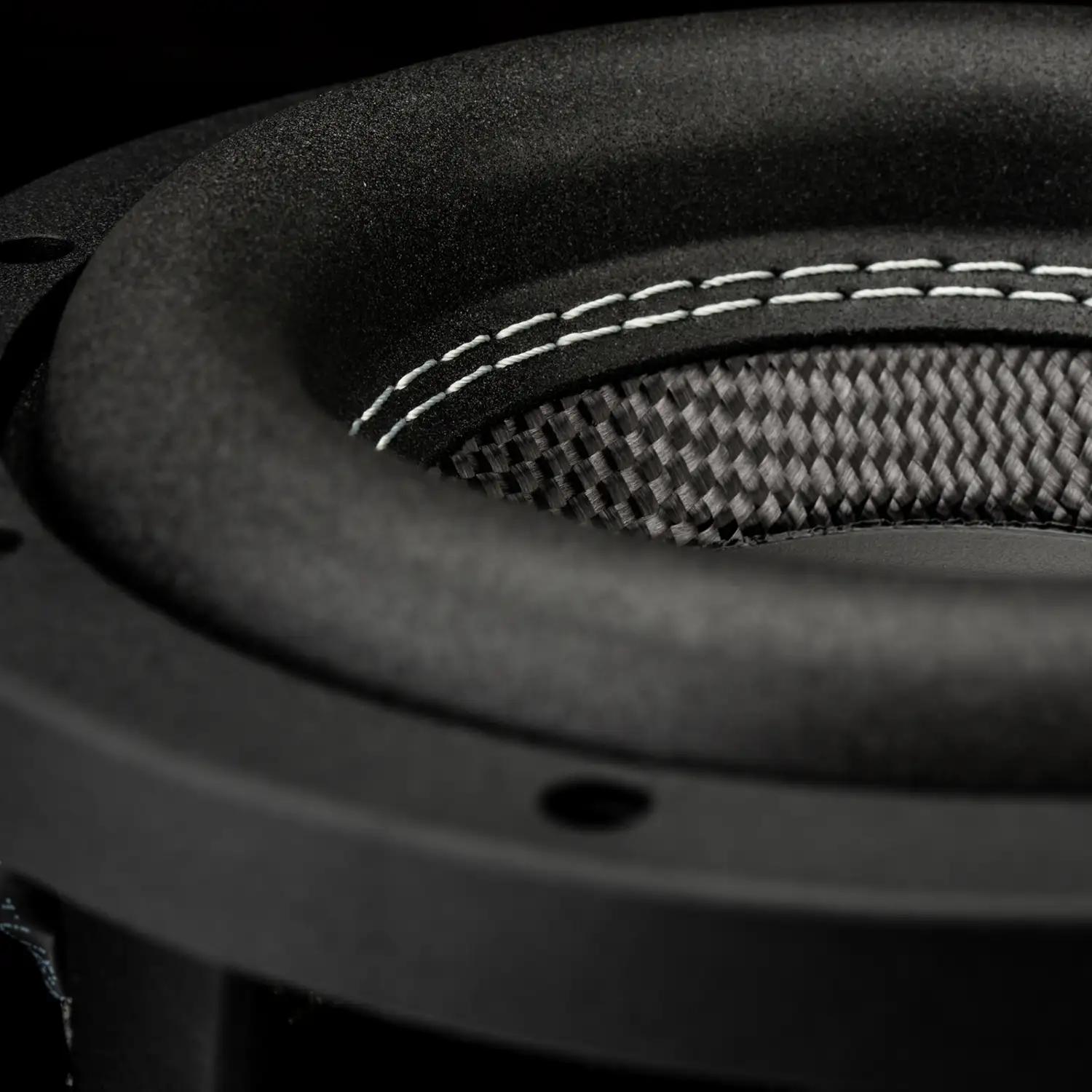

  • Surround: Foam
  • Basket: Steel

  • Recommended volume: 2,5-5 Liter
  • X-Max linear (+/-): 8,5 mm
  • DC resistance (Rdc): 1,8 Ω (dual)
  • Nominal impedance (ZN): 2,2 Ω
  • Resonance frequency (Fs): 56 Hz
  • Voice coil diameter: 40 mm
  • Voice coil height: 25 mm
  • Mechanical Q factor (Qms): 7,27
  • Electrical Q factor (Qes): 0,57
  • Total Q factor (Qts): 0,53
  • Moving Mass (Mms): 70,6 g
  • Piston area (sd): 128,6 cm2
  • Compliance (Cms): 0,11mm/N
  • Force factor (BL): 12,7 Tm
  • Equivalent air volume (Vas): 34,23 Liter
  • Efficiency (η): 0,07 %
  • SPL 2,83V/1m: 84,2 dB
  • External diameter: 173 mm
  • Installation diameter: 144 mm
  • Installation depth: 93 mm
