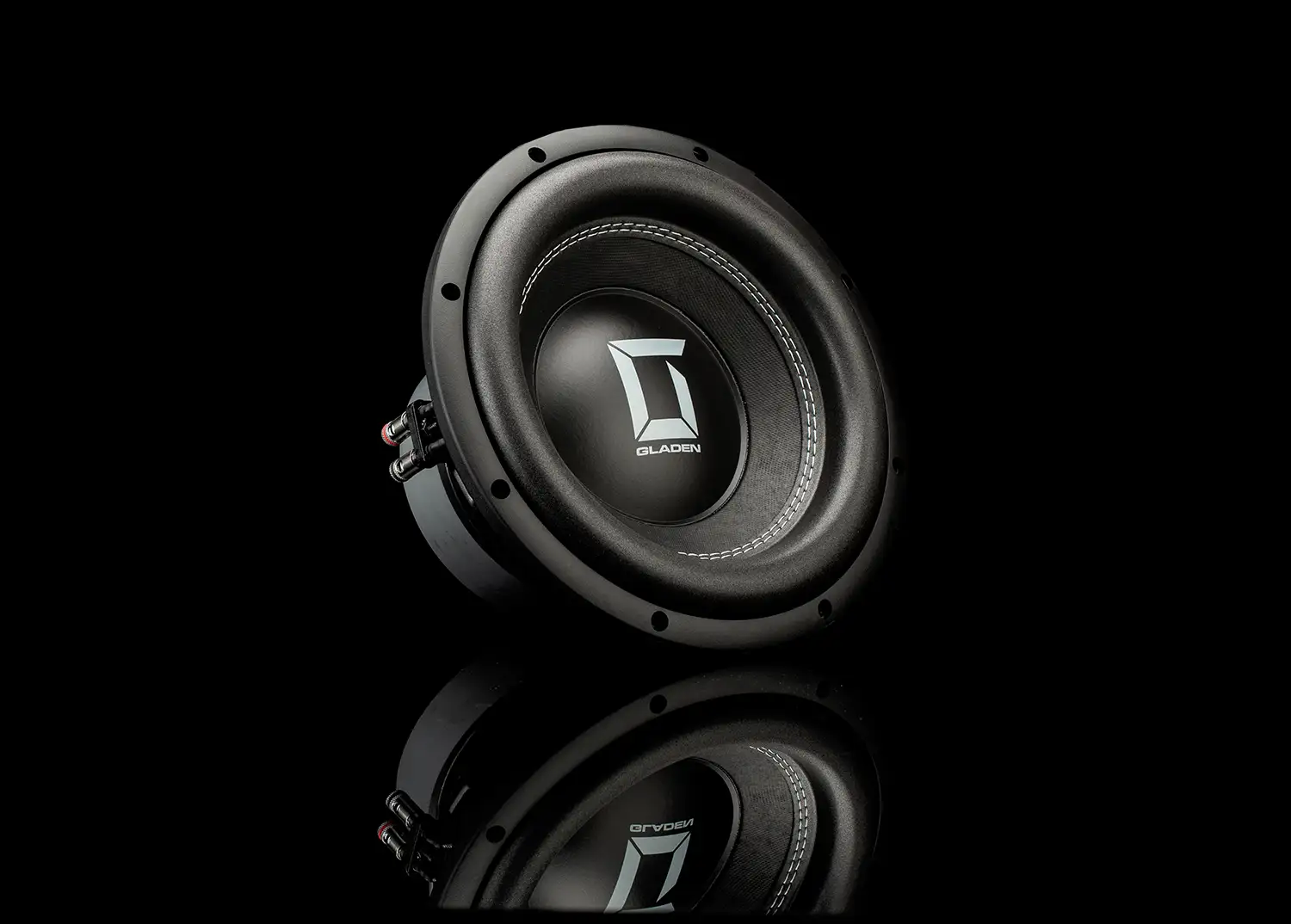

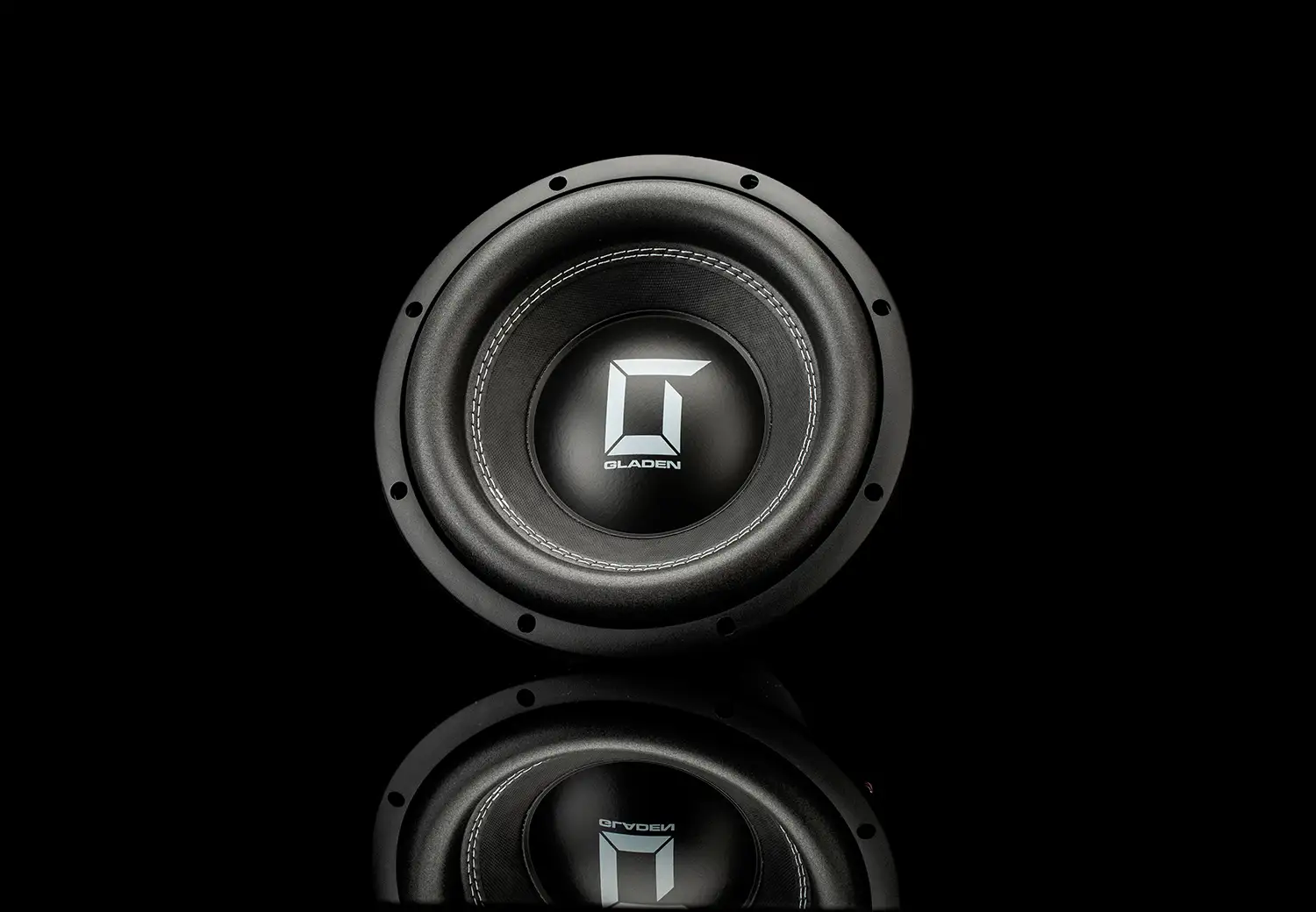

SSW 10

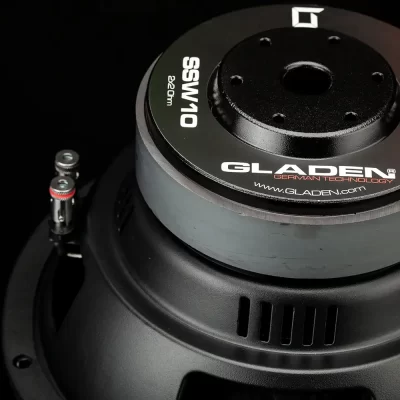

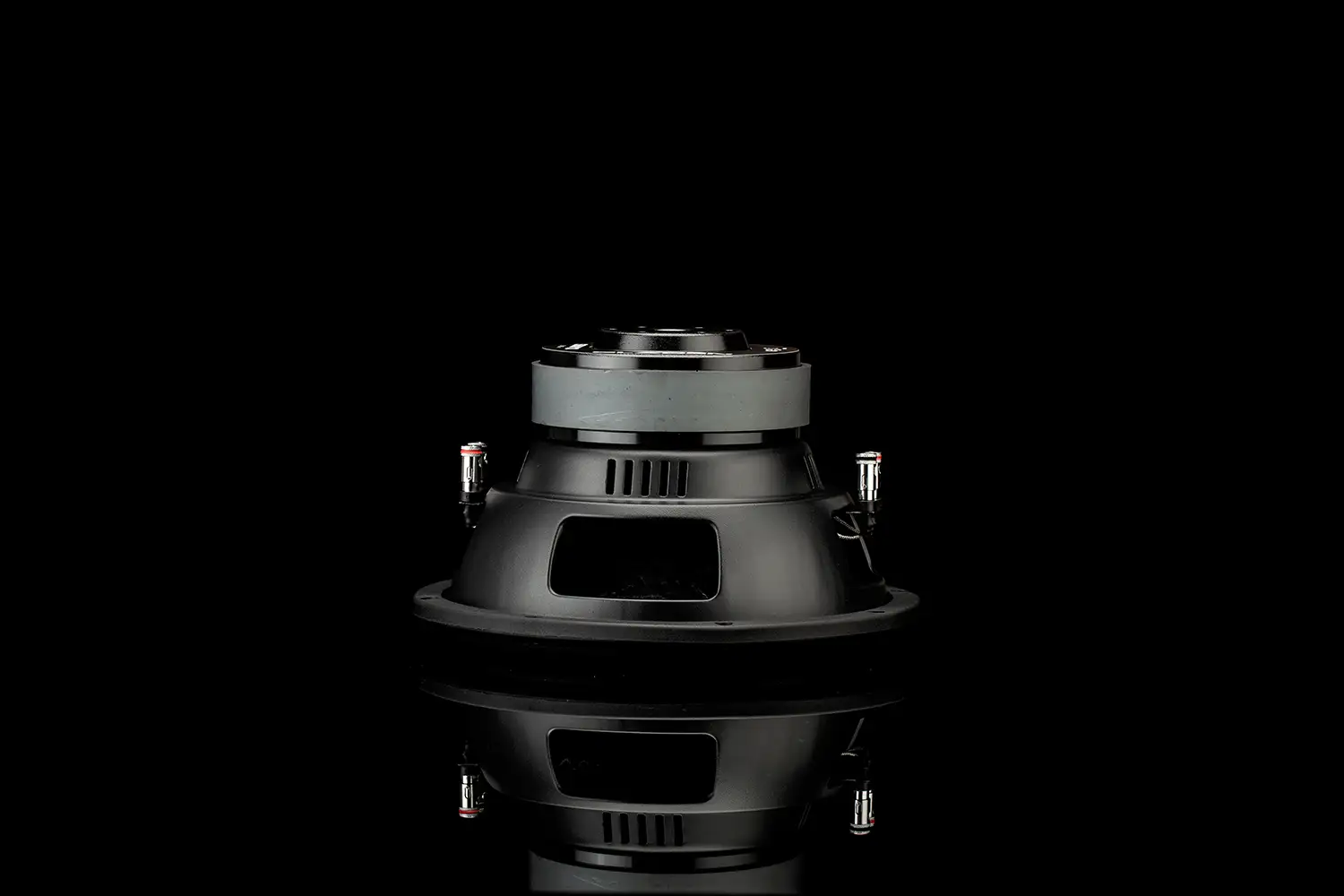

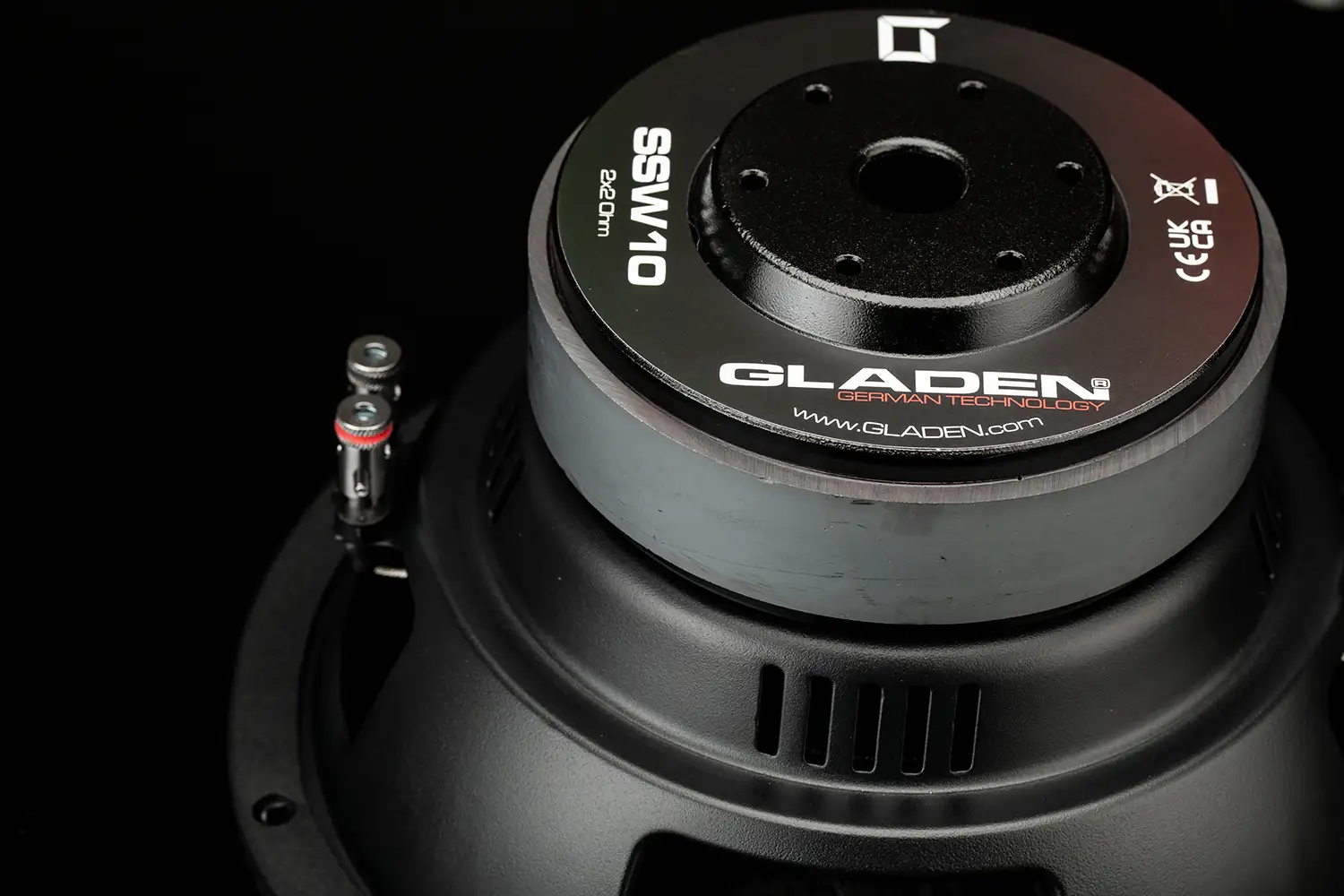

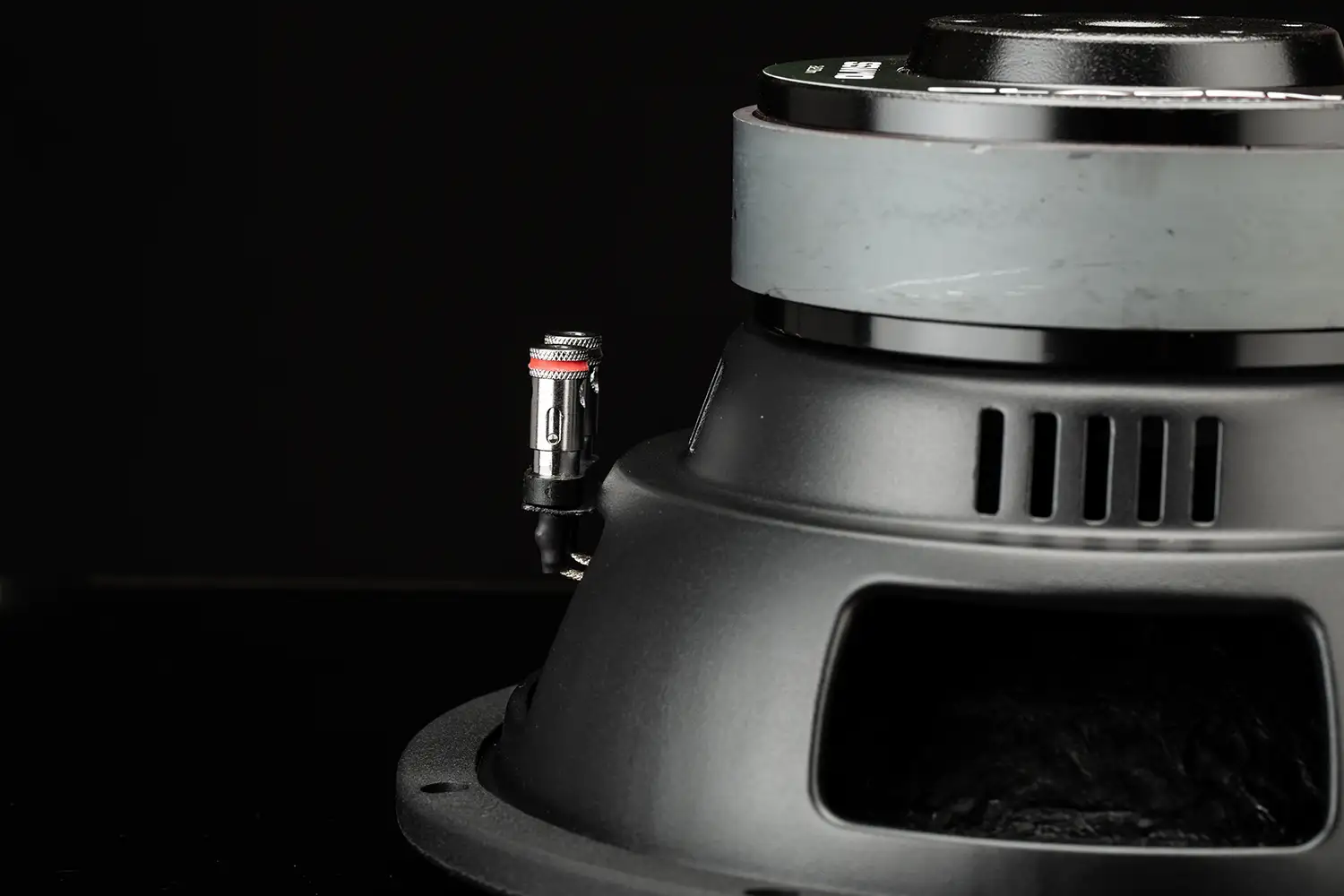

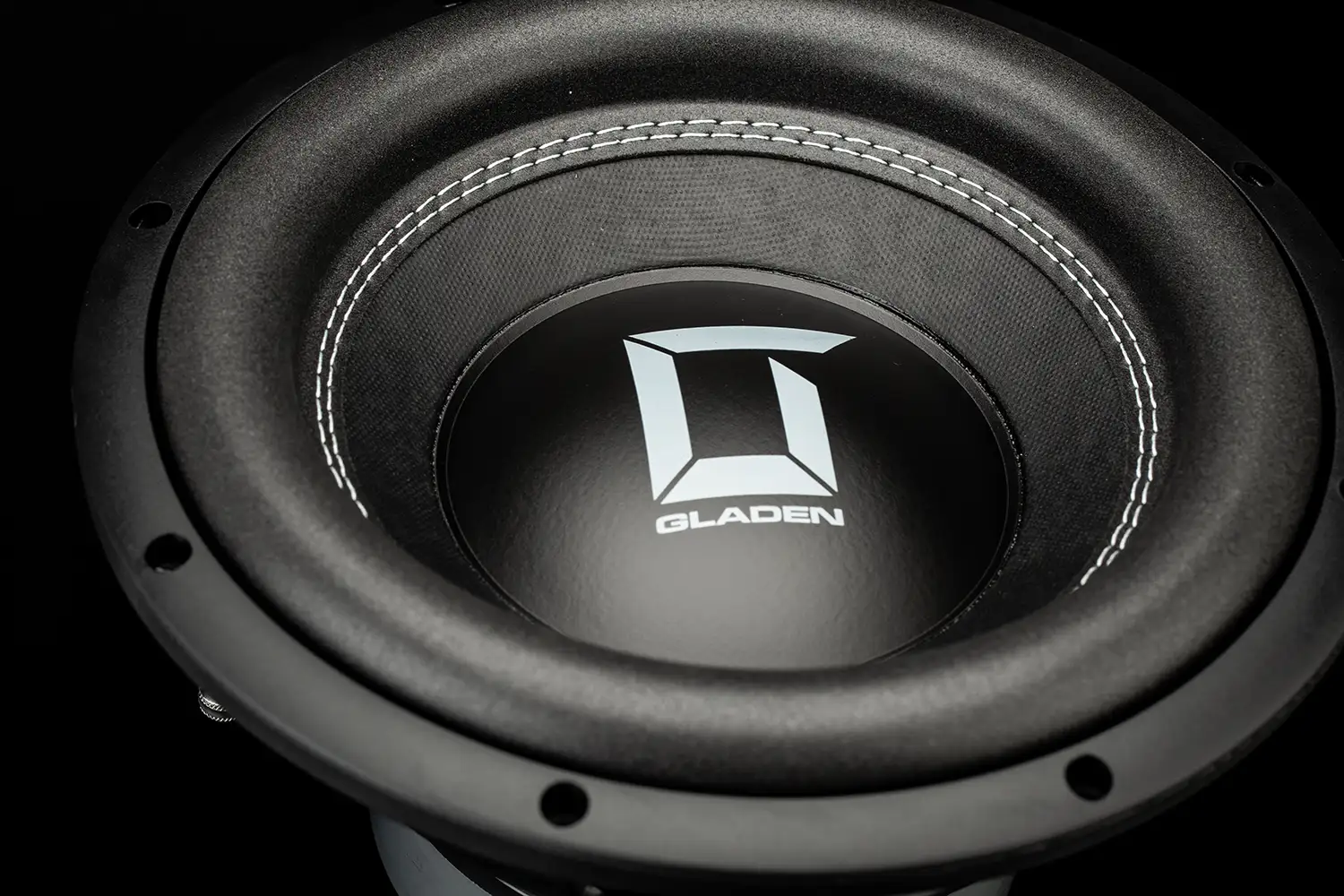

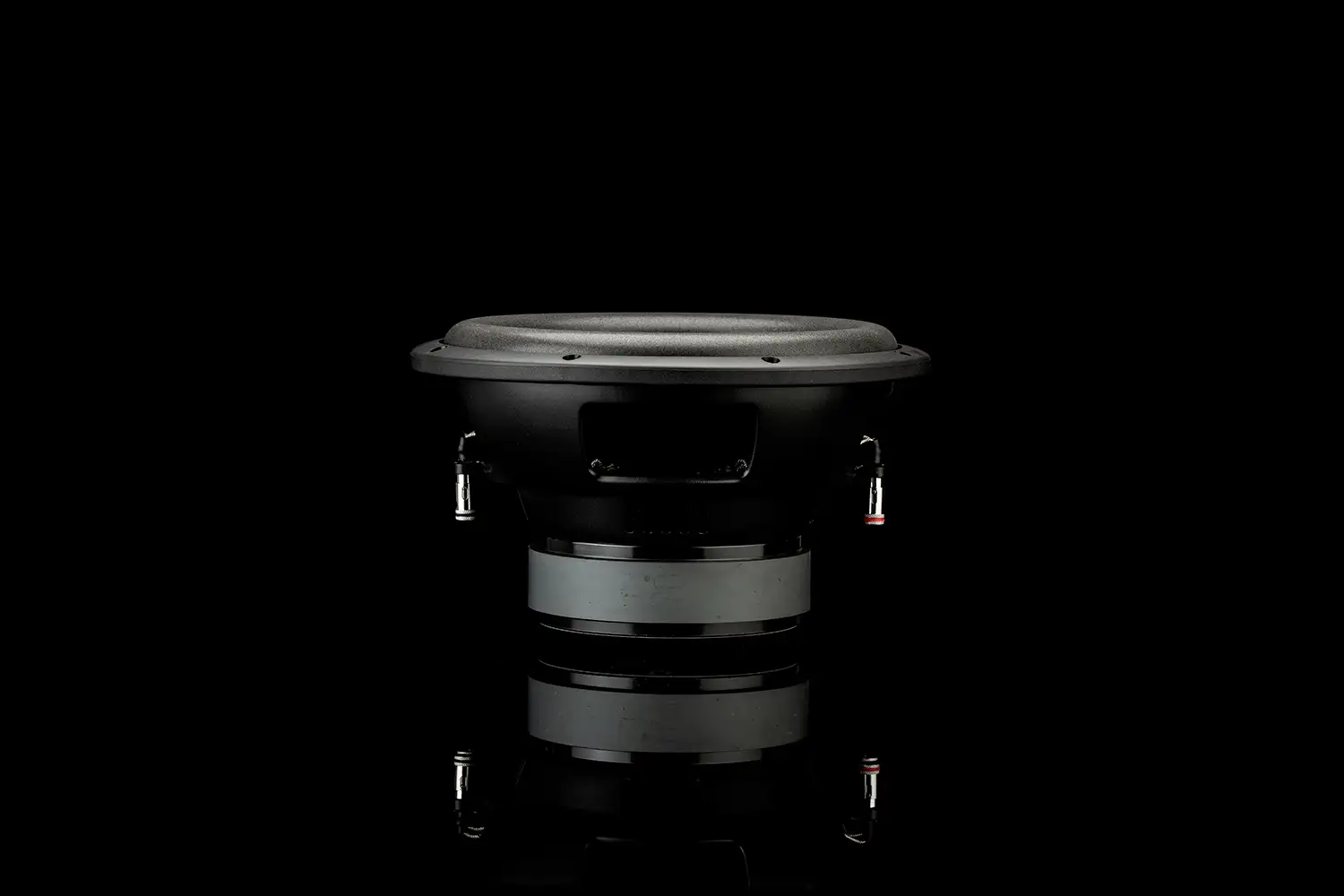

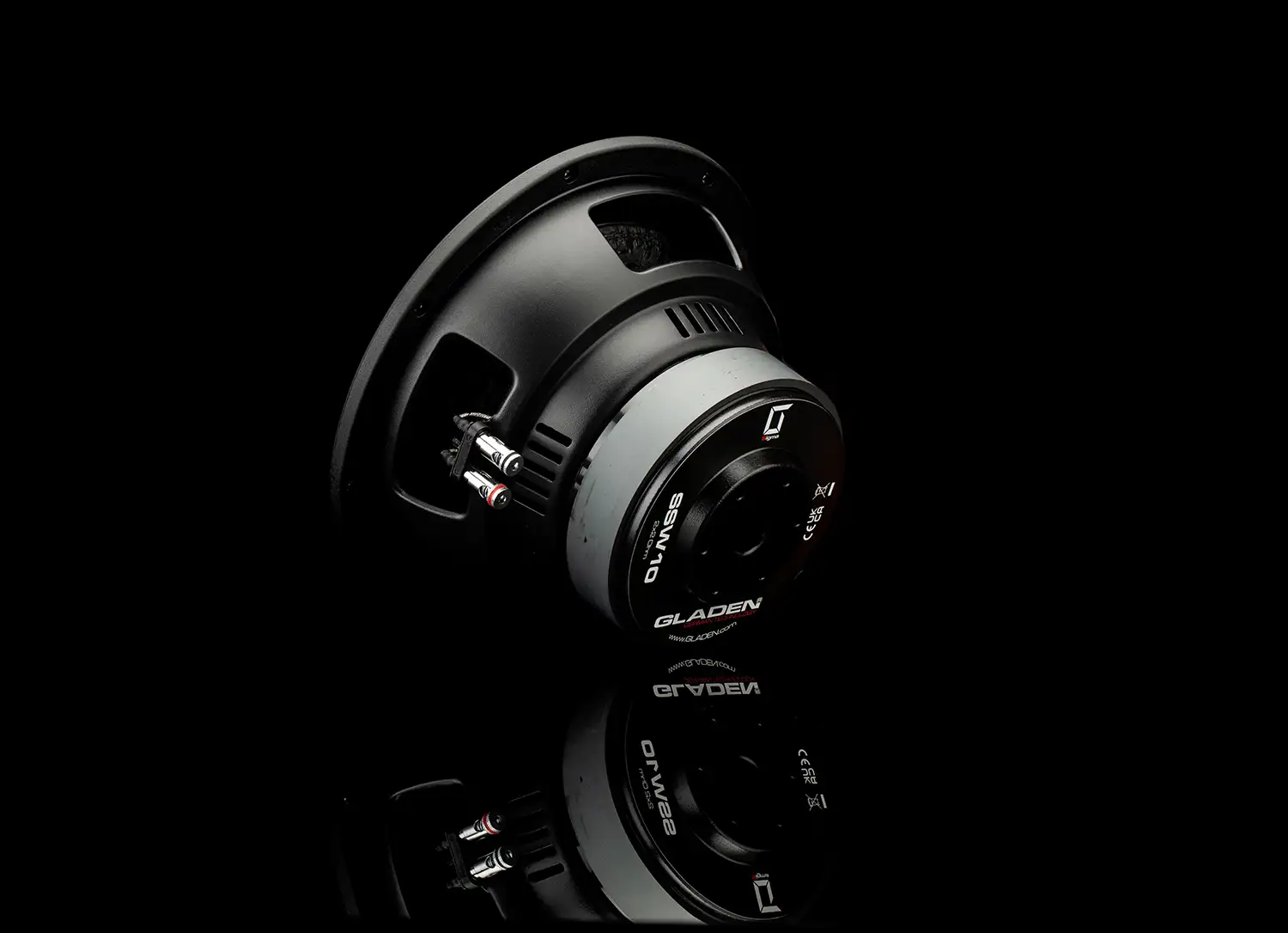

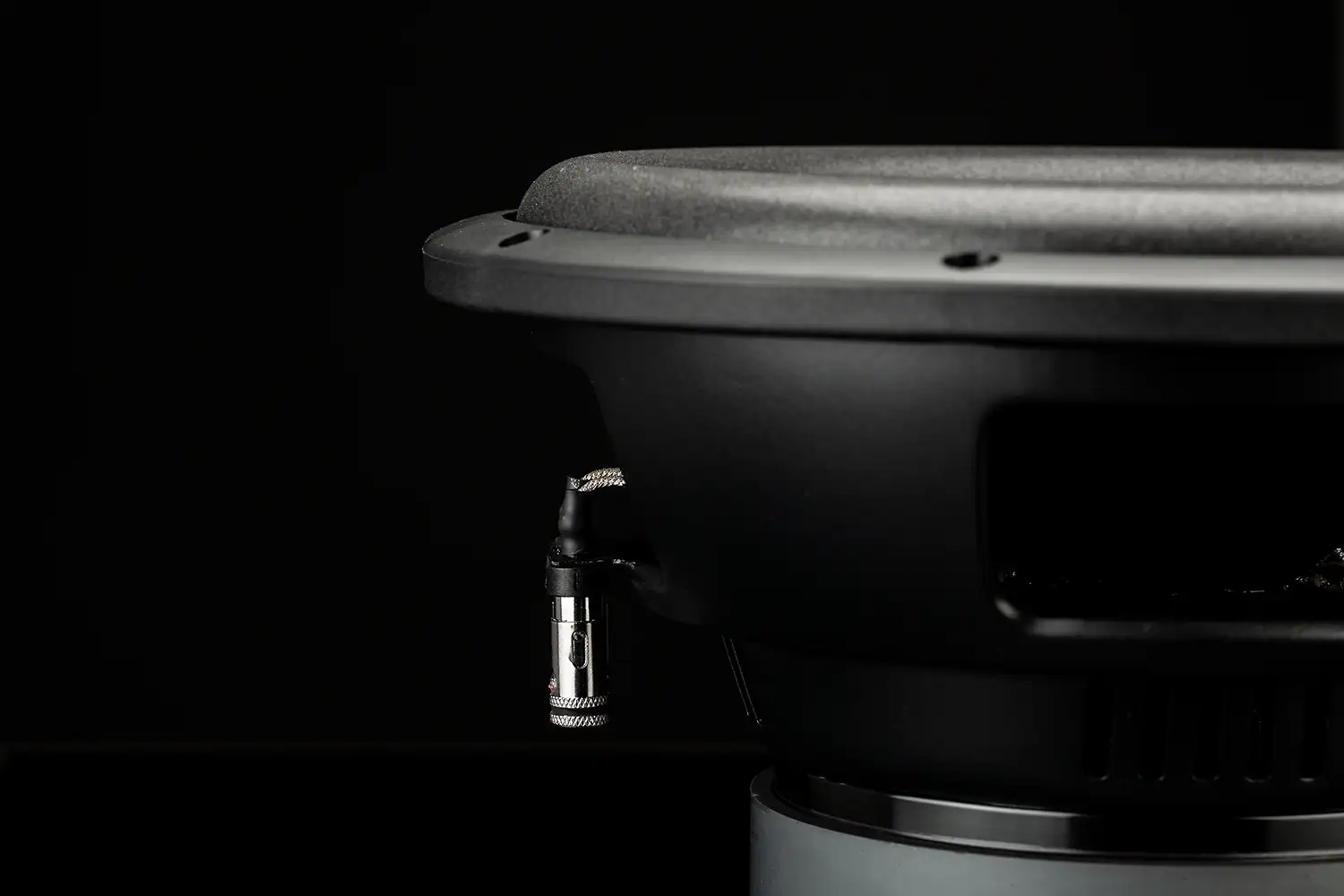

Sigma 10-Inch Subwoofer

  • 25 cm / 10” Subwoofer
  • 900 / 450 watts
  • 2×2 ohms impedance
  • 2” voice coil

Download:

Description

Overview

The GLADEN SIGMA SSW10 was developed for applications requiring noticeable low bass and high control. With its larger membrane surface and powerful drive, this 10-inch subwoofer delivers superior bass pressure without sacrificing precision. It combines pressure and musicality, making it suitable for dynamic music styles and deep bass passages.
The sturdy paper cone and long-throw voice coil ensure precise conversion of amplifier power and clean bass reproduction, even at high levels. Thanks to its dual 2-ohm voice coil, the SSW10 can be flexibly integrated into a wide variety of system concepts.

With its balanced electroacoustic parameters, the SIGMA SSW10 is designed for both closed and bass reflex enclosures, providing a versatile foundation for powerful car audio installations.

  • 10″ subwoofer with powerful, controlled bass
  • Long-throw 2″ voice coil with dual 2-ohm design
  • Efficient drive for clean bass impulses
  • Optimized for closed and bass reflex enclosures.

Specifications

  • Dustcap: PP
  • Coilformer: Aluminum
  • Spider: 7″ PC Mix (poly-cotton blend)
  • Cone: Paper
  • Surround: Foam
  • Basket: Steel

  • Recommended volume: 17-32 Liter
  • X-Max linear (+/-): 11,5 mm
  • DC resistance (Rdc): 1,85 Ω (dual)
  • Nominal impedance (ZN): 2,2 Ω
  • Resonance frequency (Fs): 36 Hz
  • Voice coil diameter: 50 mm
  • Voice coil height: 30 mm
  • Mechanical Q factor (Qms): 6,64
  • Electrical Q factor (Qes): 0,51
  • Total Q factor (Qts): 0,47
  • Moving mass (Mms): 153,2 g
  • Piston area (sd): 330 cm2
  • Compliance (Cms): 0,12mm/N
  • Force factor (BL): 16,62 Tm
  • Equivalent air volume (Vas): 18,4 Liter
  • Efficiency (η): 0,17 %
  • SPL 2,83V/1m: 86,5 dB
  • External diameter: 263 mm
  • Installation diameter: 230 mm
  • Installation depth: 140 mm
